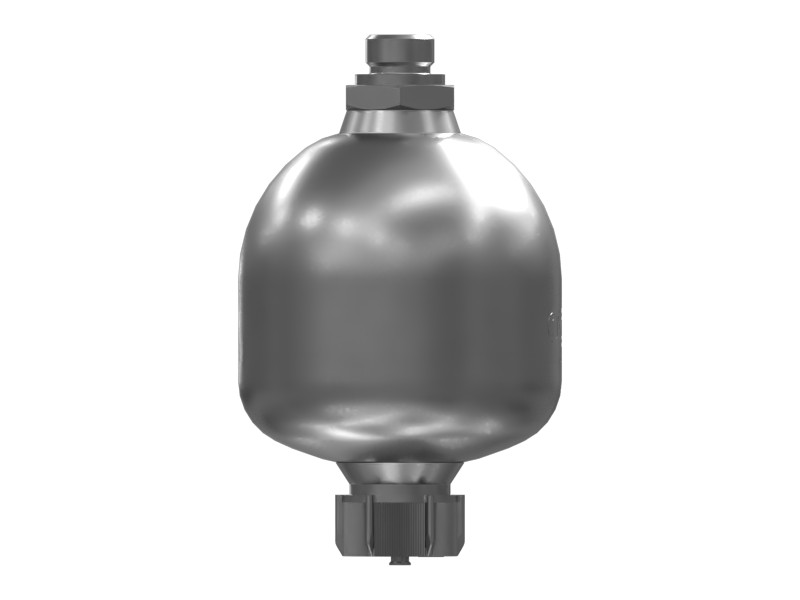

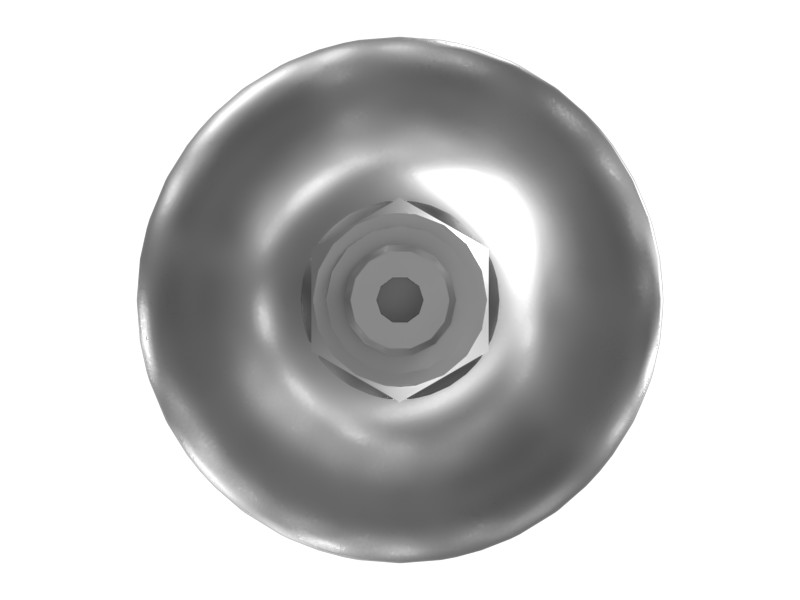

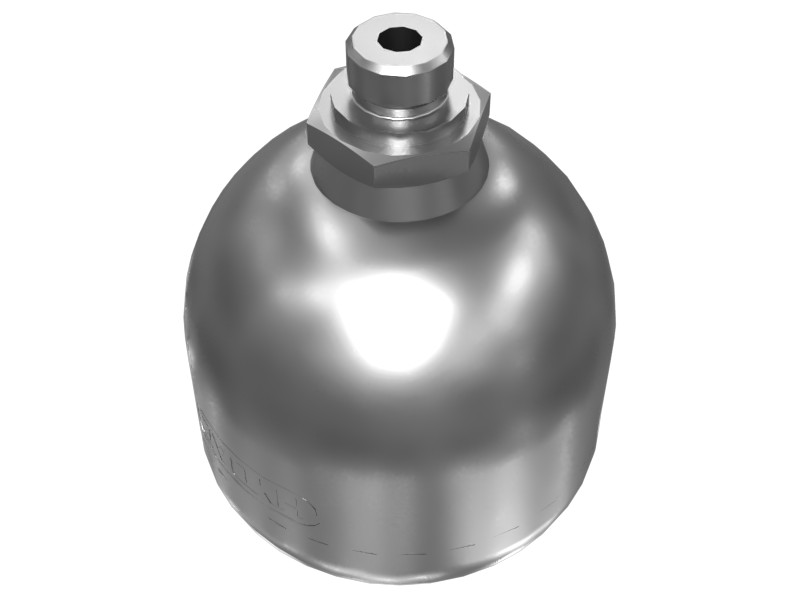

540-2485 Hydraulic Accumulator

Description

Accumulators (for example, part number 540-2485) are used in mining and construction equipment. They store and release pressure as needed to stabilize machine-specific hydraulic systems, allowing a lower-power pump to handle temporary peak pressure demands. Brake accumulators allow braking even when the engine is not running, nitrogen-charged oil accumulators absorb and reduce road shock, and blade accumulators help maintain machine control and minimize damage when the blade strikes a fixed object.

Warning: Always consult MECHSC on how to properly release accumulator system pressure before servicing an accumulator. Improper handling may result in injury or death.

Features

Uncharged hydraulic accumulator
Capacity: 0.32 L (0.08 GAL)
Maximum Working Pressure: 10300 kPa (1500 psi)
Operating Temperature Range: -40°C to 100°C (-40°F to 212°F)
Canada-Registered Accumulator

Applications

Cat accumulators are versatile. For example, they are used in hydraulic systems, enabling the system to manage pressure surges – a condition that can produce enormous loads. They can also be used in brake systems and suspension systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Standard Color	Black
Capacity	0.32 L (0.08 gal)
Outside Diameter	90 mm (3.54 in)
Length	143 mm (5.63 in)
Temperature	-40° to 100° °C (-40° to 212° °F)

Compatible Equipment

Excavators: 349F L, 313 GC, 313, 316 GC, 312 GX, 316 GX, 323 GC, 326, 333, 330 GC, 315 GC, 336, 340, 323, 320, 320 GC, 312D L, 336E L, 329E L, 311D LRR, 336D L, 326GC, 336 GC, 335F LCR, 315F LCR, 323GC, 349E L VG, 336F L, 336F, 352F, 345D L, 324D L, 320 GX, 323 GX, 313 GX, 312 GC, 333 GC, 326 GC, 349D L, 312E L, 313F L, 349E L, 329D L, 320D L, 320E, 330GC, 315, 312D, 330, 349D2

Machine Model	311D LRR, 312 GC, 312 GX, 312D, 312D L, 312E L, 313, 313 GC, 313 GX, 313F L, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 320, 320 GC, 320 GX, 320D L, 320E, 323, 323 GC, 323 GX, 323GC, 324D L, 326, 326 GC, 326GC, 329D L, 329E L, 330, 330 GC, 330GC, 333, 333 GC, 335F LCR, 336, 336 GC, 336D L, 336E L, 336F, 336F L, 340, 345D L, 349D L, 349D2, 349E L, 349E L VG, 349F L, 352F
Equipment Type	Excavators
Part Source	Genuine OEM

Machine Model

311D LRR, 312 GC, 312 GX, 312D, 312D L, 312E L, 313, 313 GC, 313 GX, 313F L, 315, 315 GC, 315F LCR, 316 GC, 316 GX, 320, 320 GC, 320 GX, 320D L, 320E, 323, 323 GC, 323 GX, 323GC, 324D L, 326, 326 GC, 326GC, 329D L, 329E L, 330, 330 GC, 330GC, 333, 333 GC, 335F LCR, 336, 336 GC, 336D L, 336E L, 336F, 336F L, 340, 345D L, 349D L, 349D2, 349E L, 349E L VG, 349F L, 352F

Equipment Type

Excavators

Part Source

Genuine OEM
