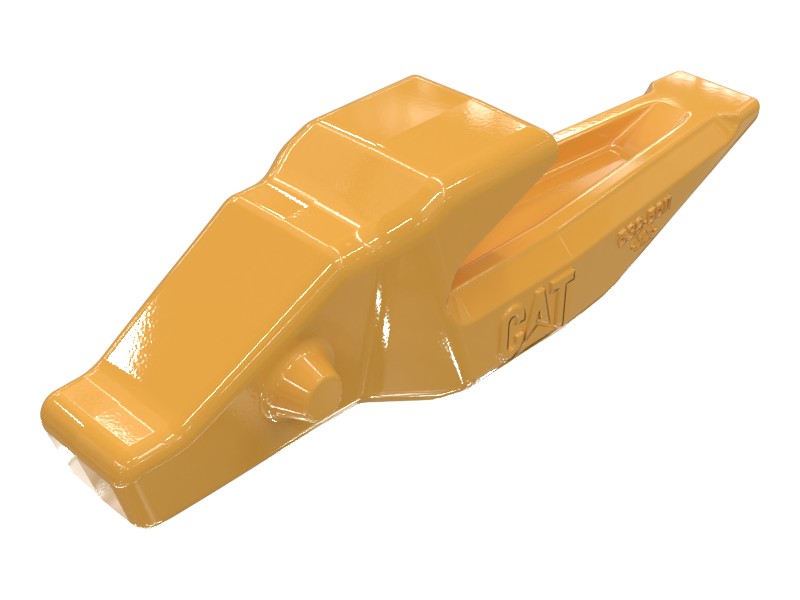

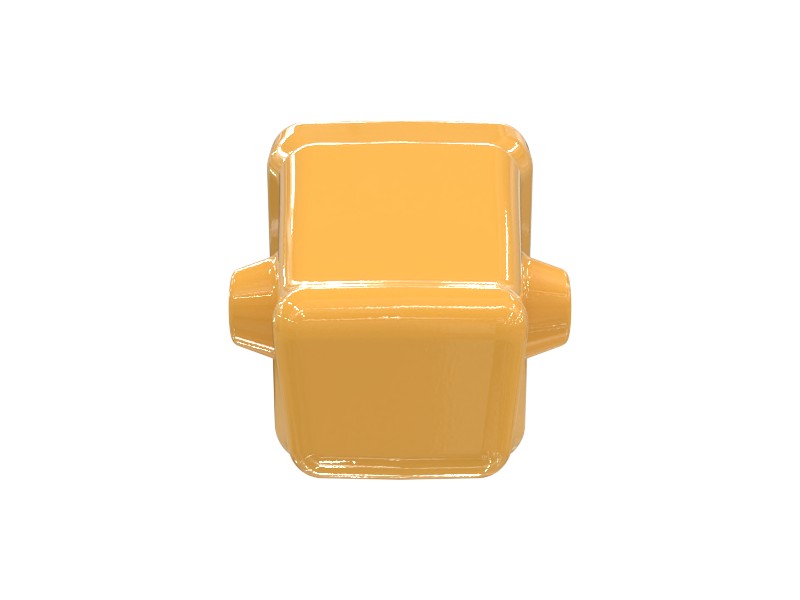

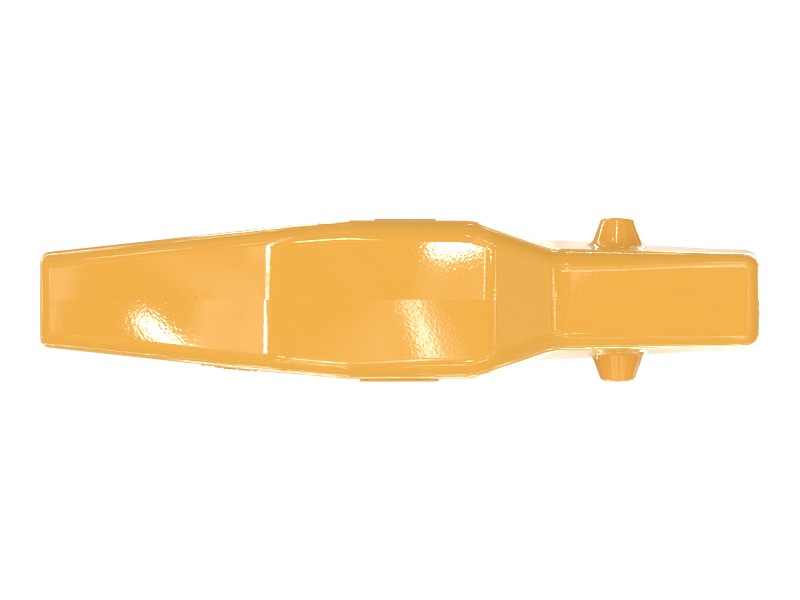

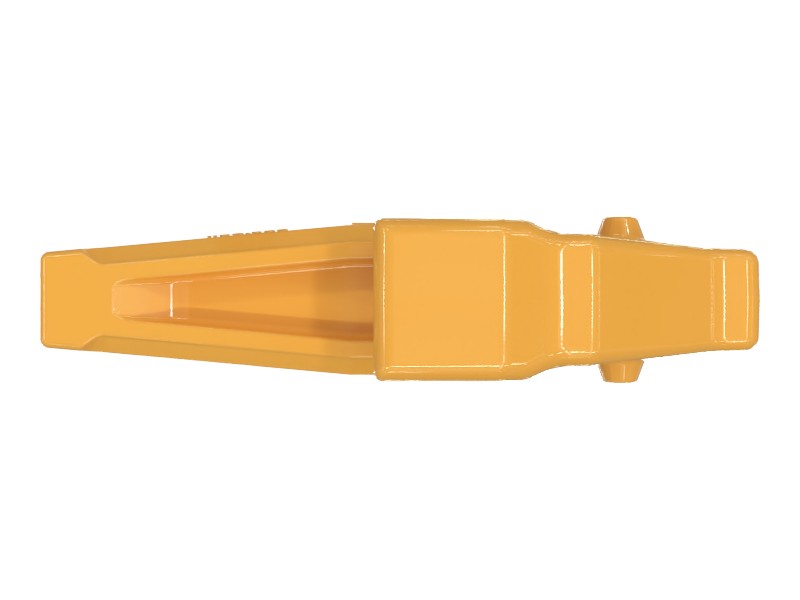

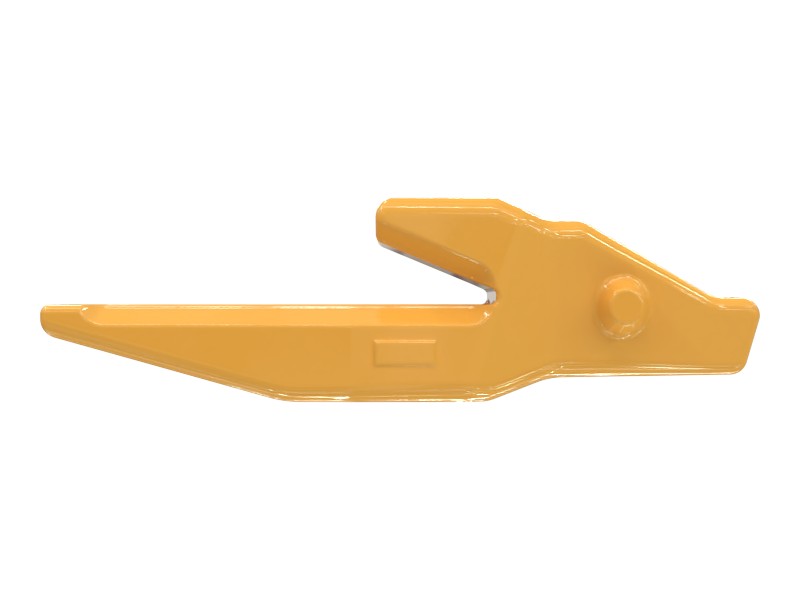

539-5611 Center Bottom Strap Adapter
Cat® Center Bottom Strap Adapter Provides a Strong, Reinforced Connection Point Between Bucket Tools
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The center bottom strap adapter is a centrally located load-bearing connection point that provides a strong, reinforced connection point between the bucket/attachment and the host carrier machine. It has a large reinforced eye or ring in the center that serves as a connection point for attaching straps or hooks.
Attributes
- Distributes force more evenly across the bucket structure
- Allows the adapter to be securely bolted to the bottom of the bucket, forming a strong connection
- Withstands the extreme stresses involved
Applications
The center bottom strap adapter is used to handle the enormous forces encountered during heavy equipment operation. When a loaded bucket is lifted, lowered, or moved, the center strap acts as the primary load-bearing member, transferring weight, inertia, and impact forces from the bucket to the carrier machine.
Specifications
| Overall Length | 305.8 mm (12.039 in) |
|---|---|
| Bottom Bar Length | 191 mm (7.52 in) |
| Number of Holes | 0 |
| Width | 64 mm (2.52 in) |
| Hole Spacing | 0 mm |
| Base Edge Thickness Grade | 25/32 |
| Bevel Angle | 22.5 |
| Attachment Method | Weld-On |
| Corner Stop Angle | 0 |
| Position | Center |
| Series | Advansys |
| Wear or Durability | Standard |
| Size | Advansys 70 |
| Material | Carbon Steel |
| Type | Bottom Strap |
Additional information
| Part Source | Genuine OEM |
|---|
