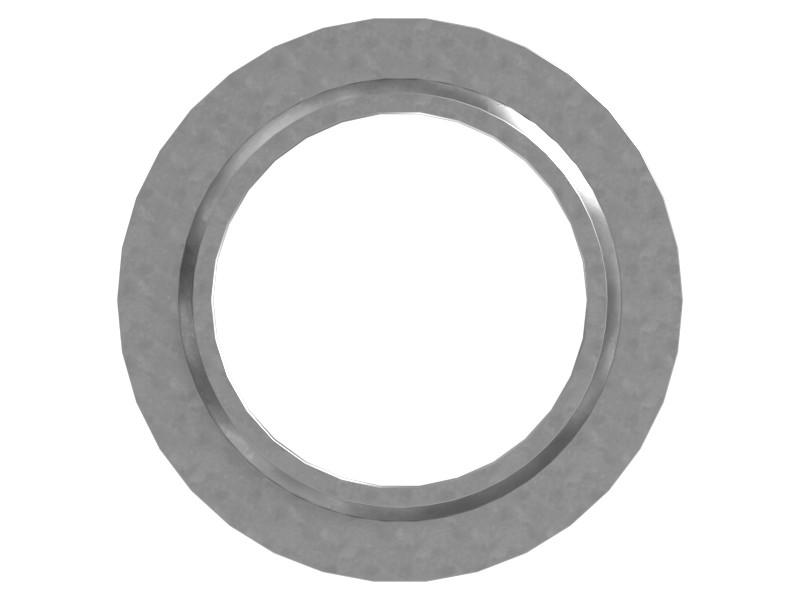

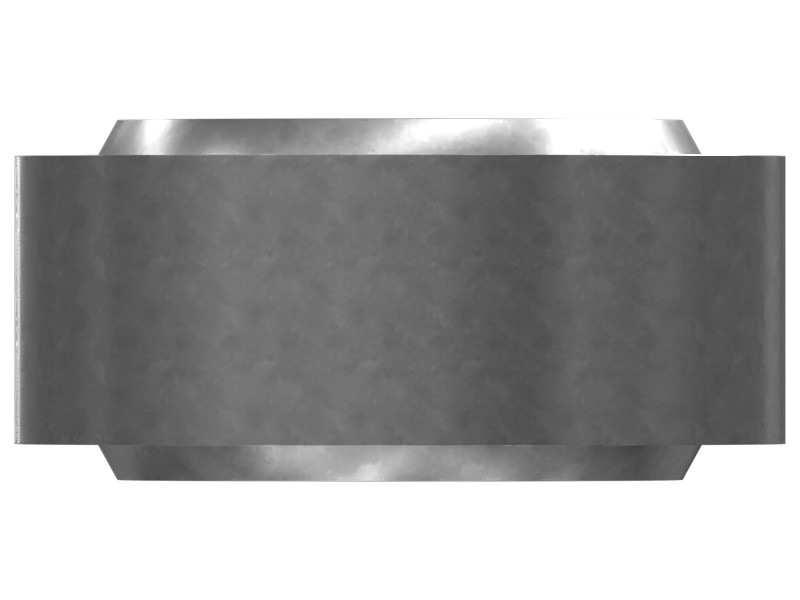

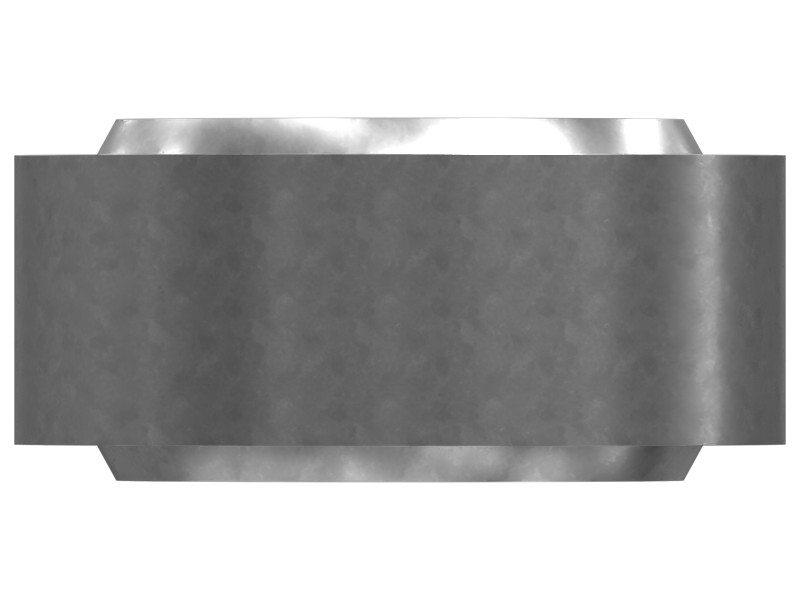

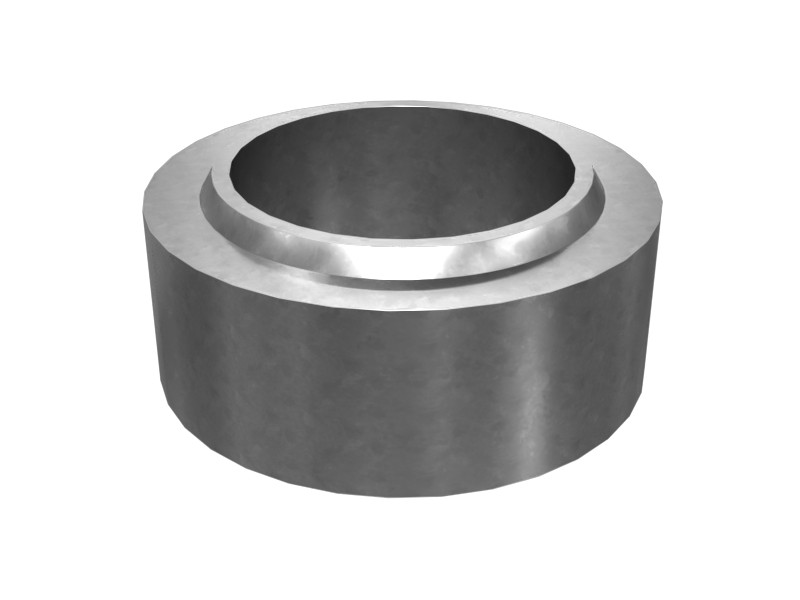

536-7903 Self-Aligning Bearing
Cat® Self-Aligning Spherical Bearing, ID x OD x Width: 50 x 75 x 35 mm
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The self-aligning spherical bearing (for example, part number 536-7903) contains an inner convex bearing ring and an outer concave bearing ring that rotate to relieve stress on the shaft and bearing assembly caused by deflection. Caterpillar design engineers match each part with the right combination of size, material, surface finish, and manufacturing process so that it works effectively with, and wears in step with, all other adjacent and dependent parts. Cat bearings are designed for specific applications based on load, operating speed, temperature range, size, and past performance, and are manufactured to extremely high quality standards for long life and excellent performance.
Features
- Self-aligning bearing.
- Inside Diameter: 50 mm (1.97 in)
- Outside Diameter: 75 mm (2.95 in)
- Outer race width: 28 mm (1.10 in)
- Inner race width: 35 mm (1.38 in)
Applications
Cat self-aligning spherical bearings are commonly used in applications with severe misalignment, whether the misalignment comes from mounting or shaft deflection, or where the shaft may bend during operation.
Specifications
| Inside Diameter | 50 mm (1.97 in) |
|---|---|
| Outside Diameter | 75 mm (2.95 in) |
| Type | Self-Aligning Bearing |
| Width | 35 mm (1.38 in) |
Additional information
| Part Source | Genuine OEM |
|---|
