Description

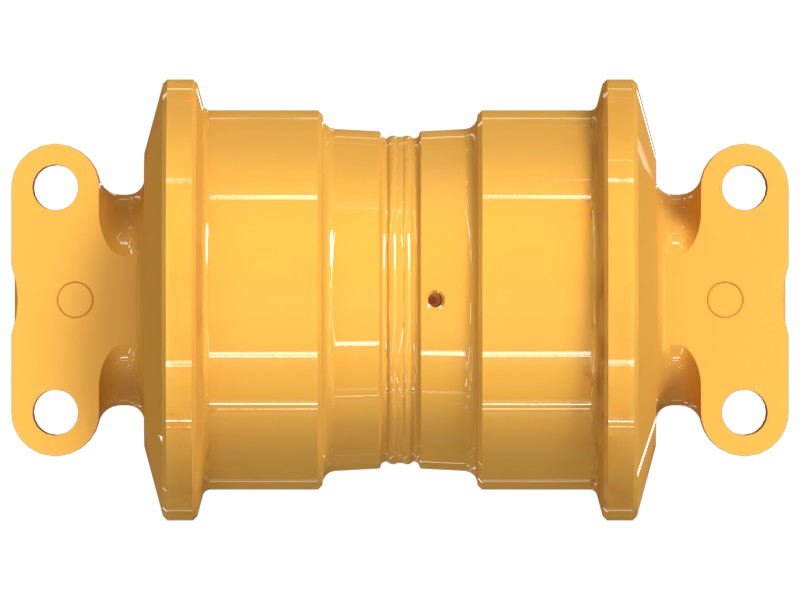

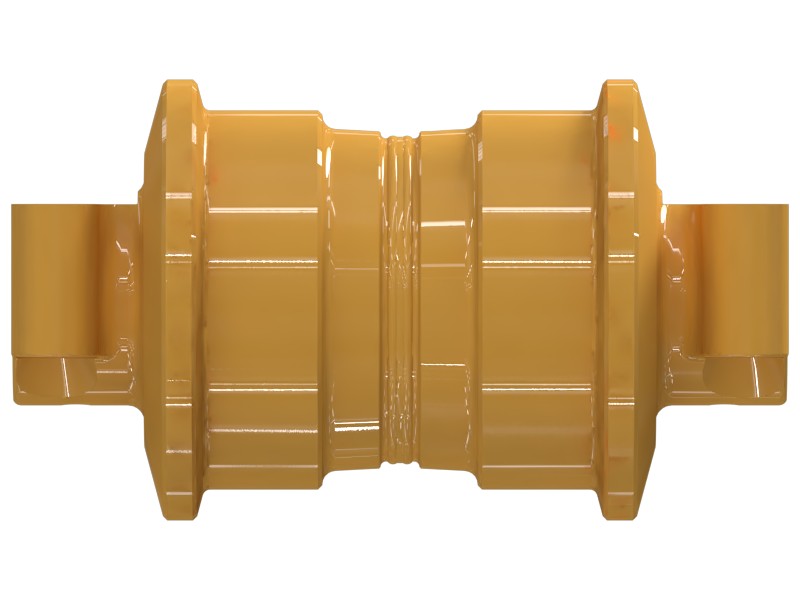

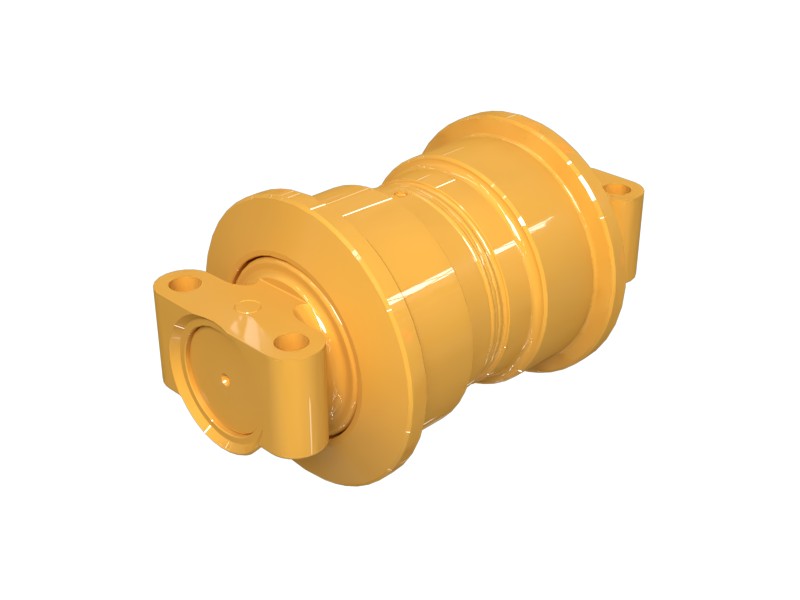

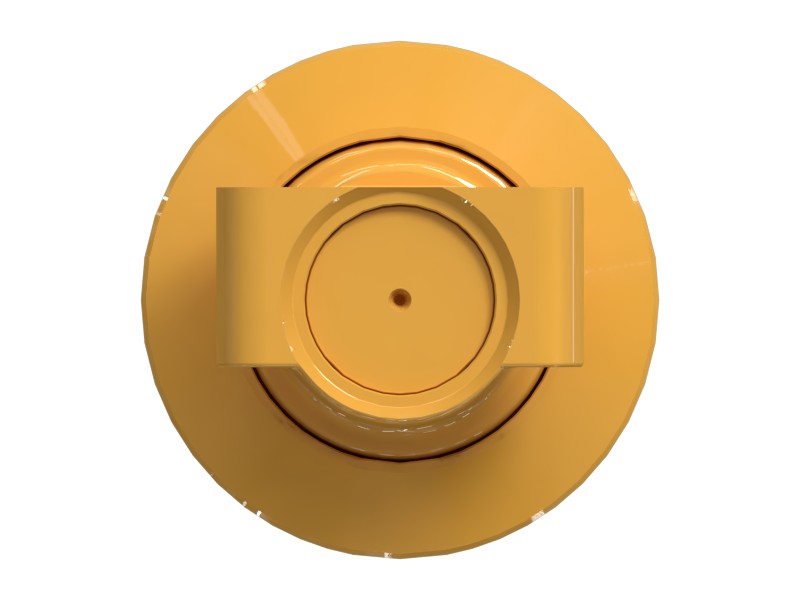

The single flange track roller is used on track-type machines. It supports and guides the track chain, allowing the machine to move smoothly over a variety of terrain. It consists of a cylindrical roller with a flange on one side. The flange acts as a guide, preventing the track chain from slipping off the roller.
Features
- Keeps the track from slipping off and lets the track move smoothly and efficiently.
- Provides traction and improves the machine's ability to travel on rough ground.
Applications
Single flange track rollers distribute the machine's weight evenly and reduce wear on the track.
Specifications
| Mounting Width | 373.2 mm (14.693 in) |
|---|---|
| Shaft Length | 539 mm (21.22 in) |
| Mounting Bolt Axial Spacing | 490 mm (19.291 in) |
| Mounting Cap Bolt Hole Diameter | 33 mm (1.299 in) |
| Outer Flange Diameter | 314 mm (12.362 in) |
| Shaft Outside Diameter | 115 mm (4.528 in) |
| Mounting Bolt Lateral Spacing | 160 mm (6.299 in) |
| Mounting Cap Bolt Thread Size | M30 |
| Tread Diameter | 270 mm (10.63 in) |
| Inside Spacing | 117 mm (4.606 in) |
| Compatible Carrier Roller | No |
| Material | Sealants / Adhesives Adhesive |
| Link Outside Spacing | 337.6 mm (13.291 in) |
| Flange Type | SINGLE FLANGE |
| Application | Oil Resistance |
| Undercarriage System | HD |
Compatible Equipment
- Excavators: 3101, 390F, 395, 390F L
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
