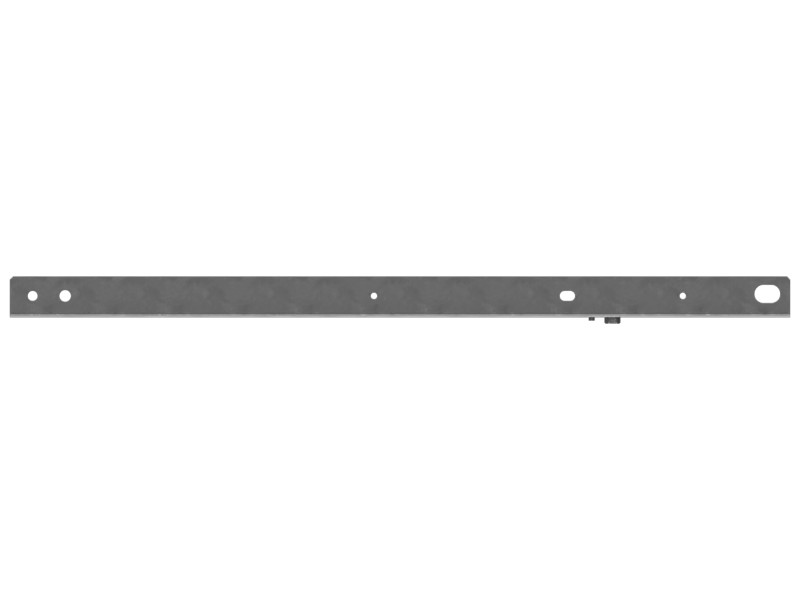

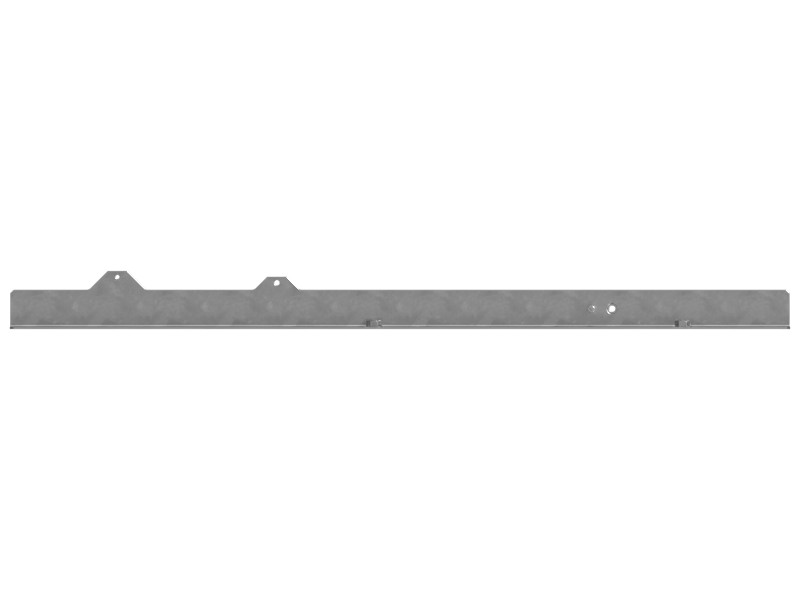

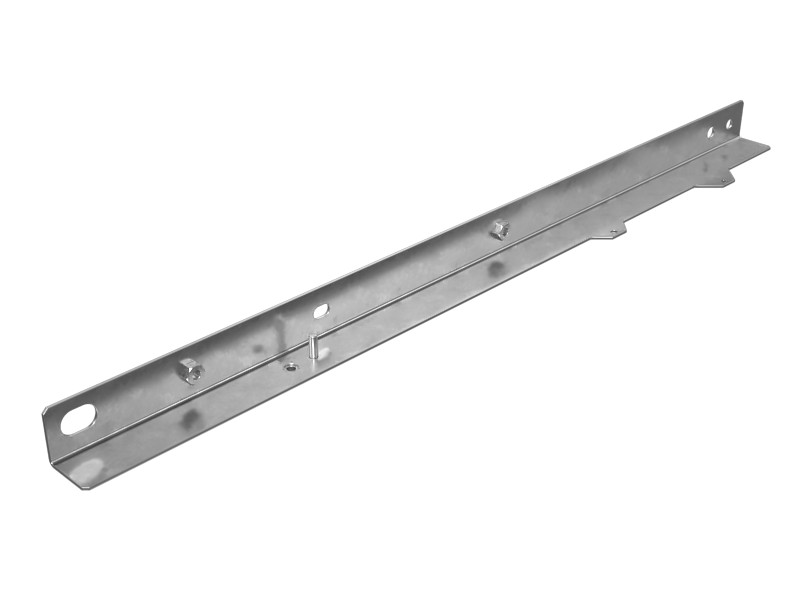

528-3561 1200 mm Long Hood and Guard Support
Cat® 1200 mm long hood and guard support for enclosures provides stability and protection for hood and guard components.
Description
Hood and guard support for the engine enclosure.
Features

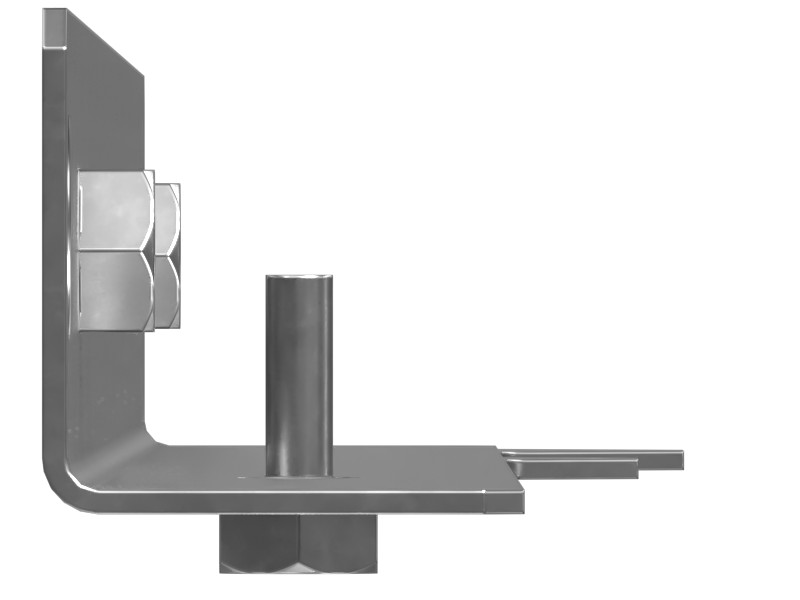

- Steel support bracket and rod with welded nut
- Finish: Cat Yellow Paint
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Color | Cat Yellow |
|---|---|
| Length | 1200 mm (47.24 in) |
| Width | 89 mm (3.50 in) |
| Height | 73 mm (2.86 in) |
| Thread Size | M12X1.75 (3X) mm |
Compatible Equipment
- Excavators: 336, 340, 345 GC, 336 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
