Description

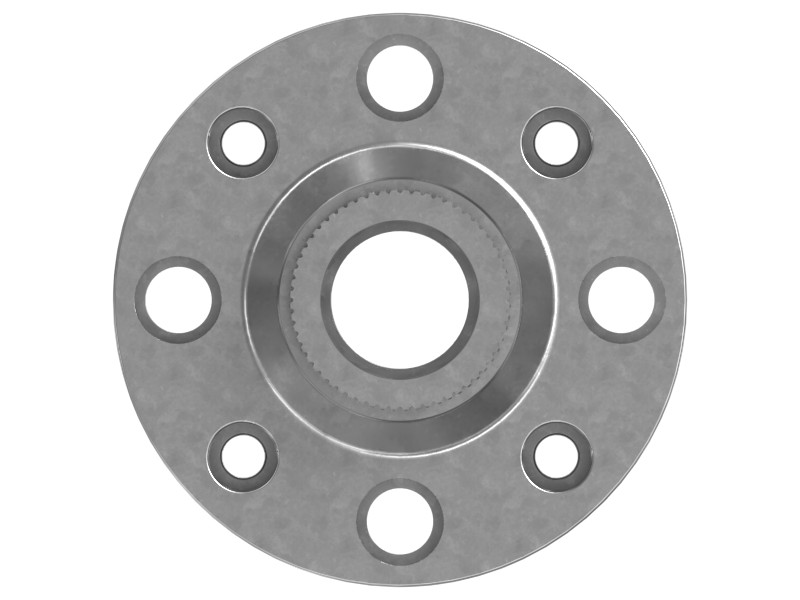

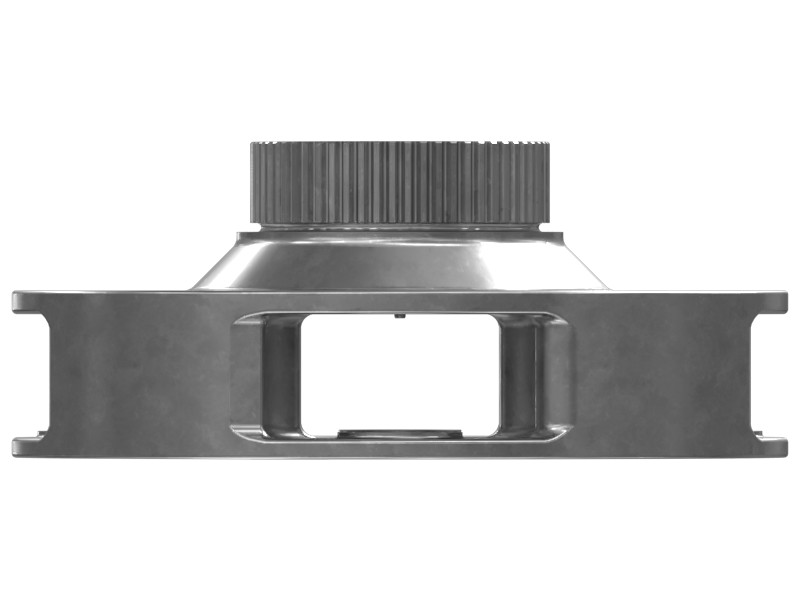

Cat powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine. The Cat planetary gear carrier is an important powertrain component that connects the planetary gears with the sun gear in a planetary gear system.
Features
- Planetary gear carrier with pins
- Cast Iron Carrier
- Number of External Spline Teeth: 60
- Pitch Diameter: 254.000 mm (10.000 in)
Applications
Service part for final drives. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Cast Iron |
|---|---|
| Outside Diameter | 666 mm (26.22 in) |
| Inside Diameter | 160 mm (6.299 in) |
| Overall Length | 270.5 mm (10.649 in) |
Compatible Equipment
- Off-Highway Trucks: 789D, 789
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
