Description

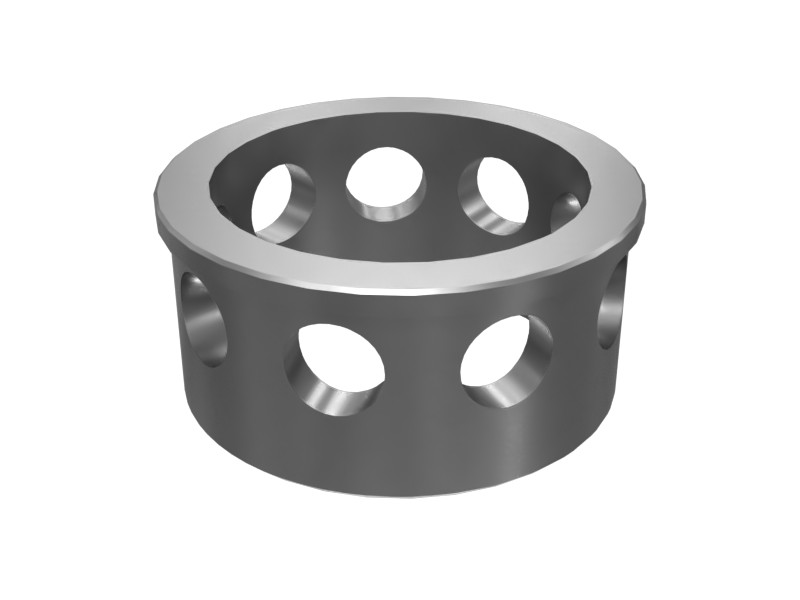

Spacer (e.g., part number 526-1056) is commonly used to provide additional stretch length in a fastener, which reduces preload loss or narrows the cyclic stress range of the machine workload. They are used to establish and maintain the functional relationship of related parts in a machine system.
Cat shims are designed to improve productivity and reliability and extend service life.
Features
- Material: Cast Aluminum Bronze
- Type: Center Hole Slot
- Center Hole Shape: Non-Threaded
- Inside Diameter: 76.5 mm (3.01 in)
- Outside Diameter: 93 mm (3.66 in)
- Flange Diameter: 98 mm (3.86 in)
- Flange Thickness: 5 mm (0.20 in)
- Length: 46 mm (1.81 in)
- Hole Size: 19 mm (0.75 in) (9X)
- Cat gaskets are manufactured to precise specifications for durability, reliability and high efficiency
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Ferrule Inside Diameter | 76.5 mm (3.012 in) |
|---|---|
| Cross Hole | Yes |
| Ferrule Outside Diameter | 93 mm (3.661 in) |
| Overall Length | 46 mm (1.811 in) |
| Unique Features | No |
| Type | Center Hole Slot |
| Material | Aluminum Bronze Casting |
| Coating | Not Specified |
| Center Hole Shape | Non-Threaded |
| Inside Diameter | 76.5 mm (3.01 in) |
| Outside Diameter | 93 mm (3.66 in) |
| Flange Diameter | 98 mm (3.86 in) |
| Flange Thickness | 5 mm (0.2 in) |
| Length | 46 mm (1.81 in) |
| Hole Size | 19 (9X) mm (0.75 (9X) in) |
Compatible Equipment
- Asphalt Pavers: AD45
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
