Description

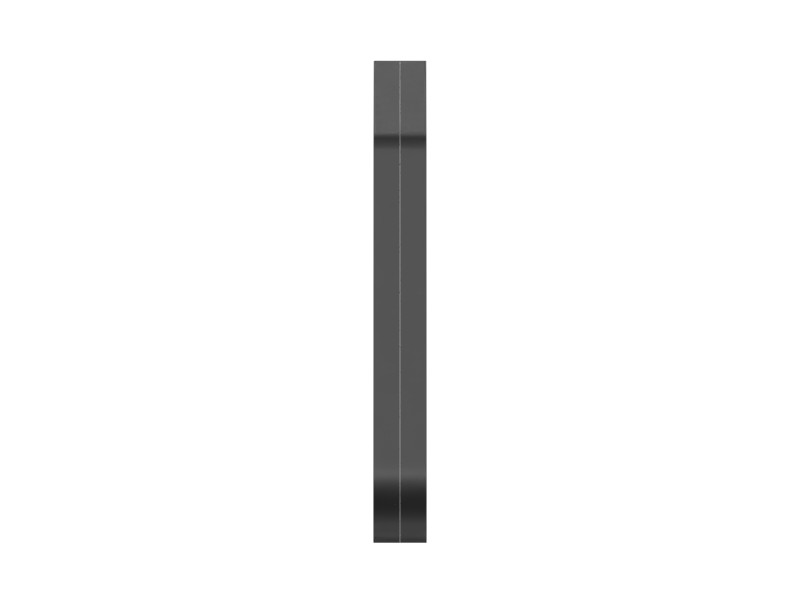

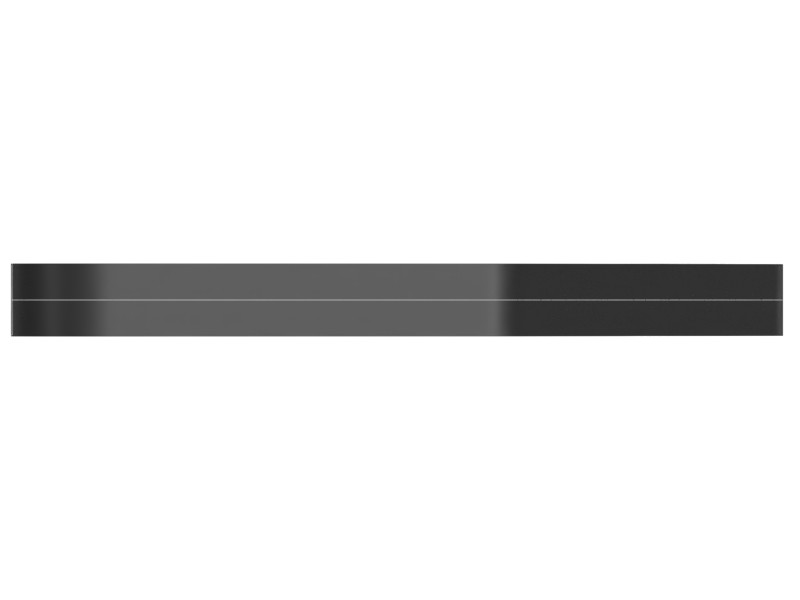

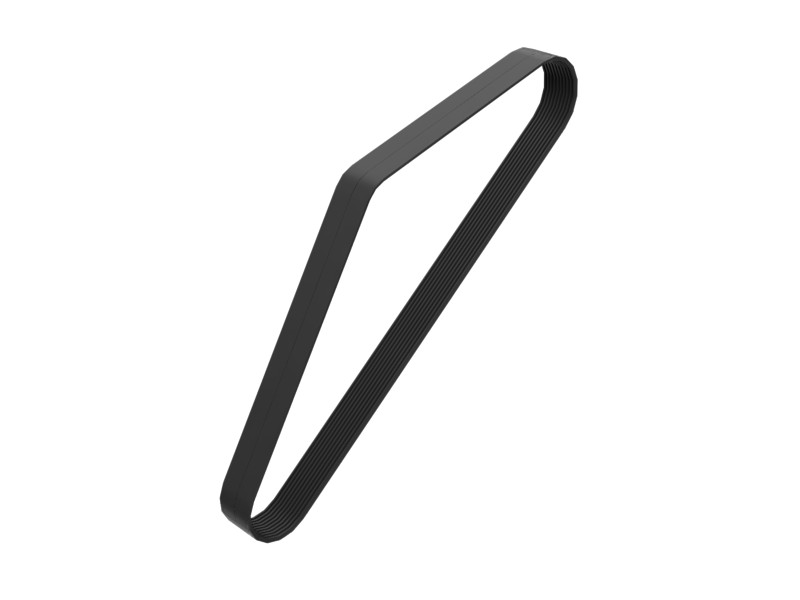

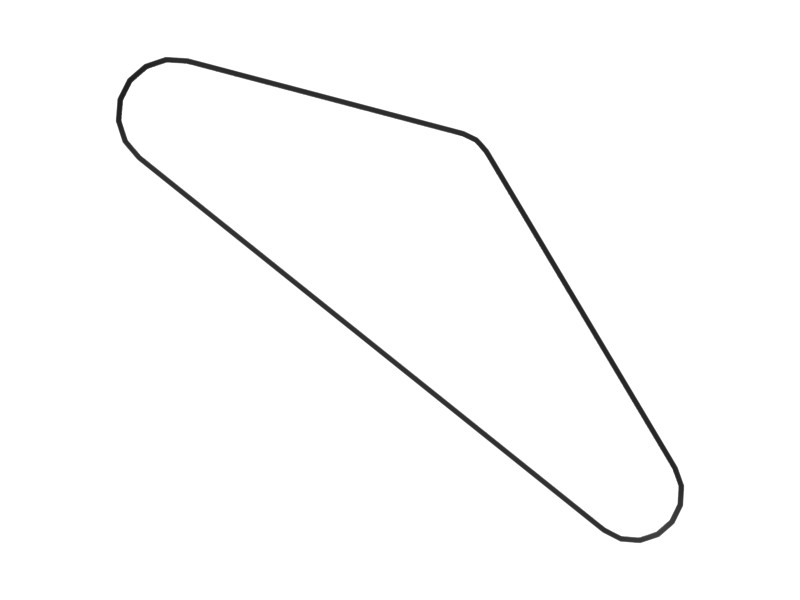

The drive pump V-belt set is a set of two belts with a trapezoidal cross-section, used to transmit rotary motion between two pulleys. Here it is used to connect the drive pump and the auxiliary drive motor. The drive pump is responsible for circulating fluid or air, while the auxiliary drive motor powers additional equipment such as fans or compressors. The belts transfer the rotational force of the drive pump to the auxiliary drive motor, allowing the equipment to operate in sync.
Features
- Made of rubber that fits the corresponding groove.
- Provides high efficiency with minimal energy loss.
- Effective Length: 5115 – 5165 mm (201.378 – 203.346 in)
- Pulley Groove Width: 15.2 mm (0.598 in)
- Pulley Groove Angle: 40°
Applications
The drive pump V-belt set used for the drive pump helps transfer power from the drive motor to the pump drive.
Specifications
| Belt Type | V-Belt |
|---|---|
| Belt Width | 175 mm (6.89 in) |
| Thickness | 16 mm (0.62 in) |
Compatible Equipment
- Cold Planers: PM620, PM622
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
