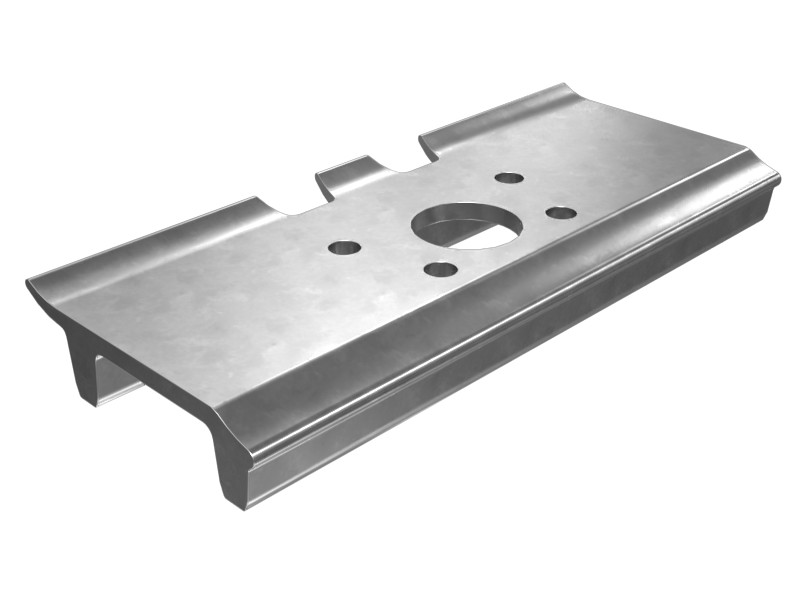

Description
Track shoes provide the machine with flotation and traction while protecting the link group.
Features

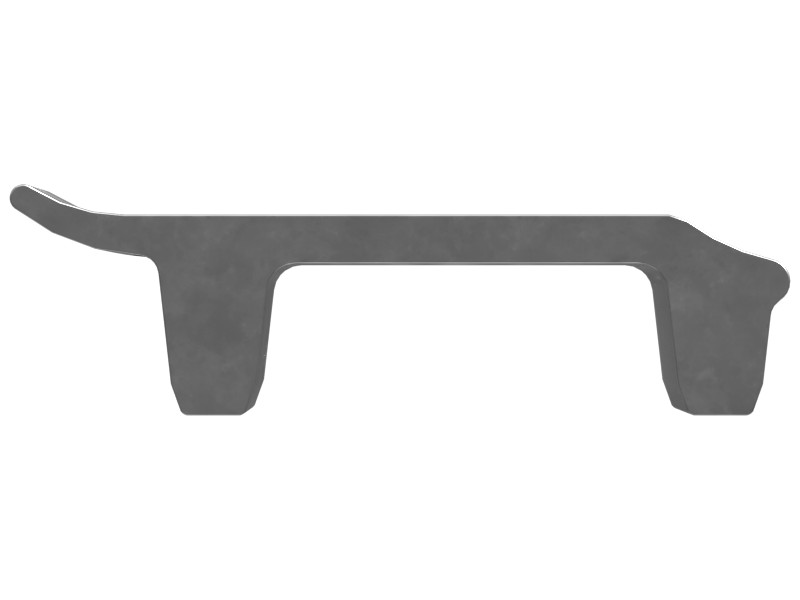

- Double grouser track shoes have less penetration and traction than single grouser track shoes but better turning ability. Double grouser track shoes are standard on track-type loaders and excavators because they require less turning resistance and greater maneuverability.

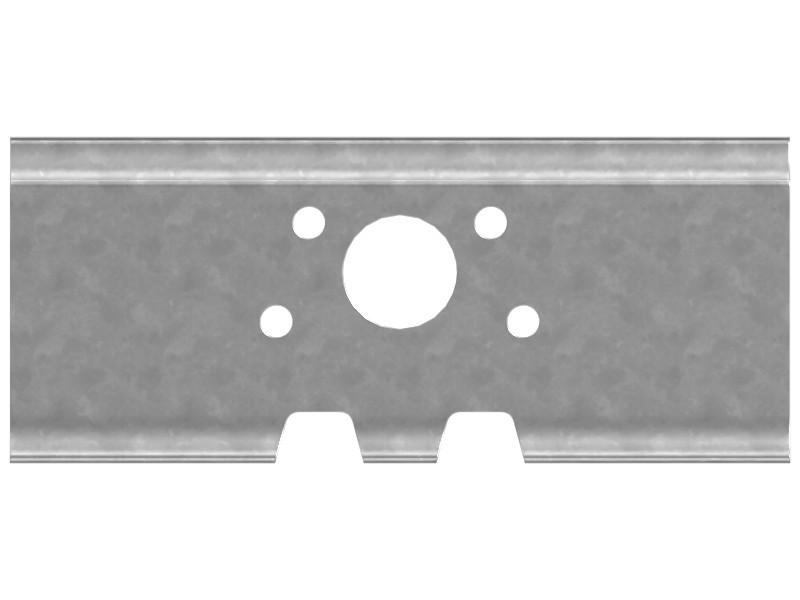

- Center punched track shoes have a round opening between the bolts for releasing compressible packed material.
Specifications
| Track Bolt Thread | M24 |
|---|---|
| Track Reinforcement System | None |
| Number of Grousers | Double |
| Abrasion Resistant Material | 0 ARM |
| Main Bolt Thread | None |
| Connector Type | Regular |
| Shear | No |
| Hole Type | Round |
| Offset | None |
| Material | Carbon Steel |
| Plate Thickness | 15.5 mm (0.61 in) |
| Track Shoe Section 1E Specification | 1E1793 |
| Track Shoe Bolt Hole Spacing B | 140 mm |
| Track Shoe Bolt Hole Spacing C | 190 mm |
| Track Shoe Bolt Hole Spacing A | 76 mm |
| Bolt Hole Diameter | 25 mm (0.984 in) |
| Undercarriage System | HD |
| Track Shoe Type | Double Grouser |
| Track Shoe Width | 600 mm (23.62 in) |
Compatible Equipment
- Excavators: 340, 336F, 336, 336D2 L, 340D2 L, 345 GC, 336 GC, 336D2
