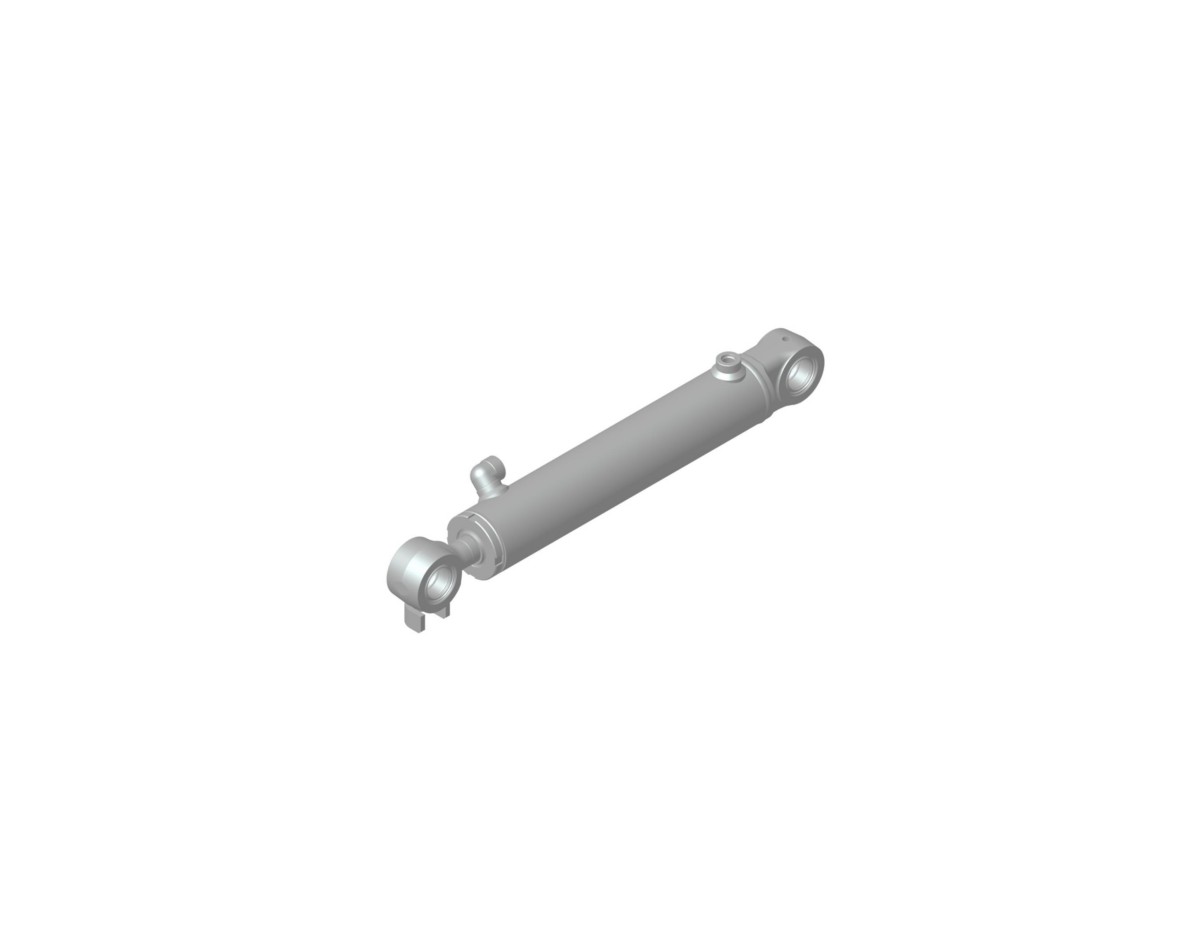

517-7272 284.5 mm Stroke Hydraulic Cylinder
Cat® 284.5 mm stroke hydraulic cylinder, 60 mm bore, eye connections on both ends, for boom swing.
Description
The hydraulic cylinder consists of a cylinder barrel, a piston, a piston rod, seals, a cylinder head, and a cylinder cover. The main body of the hydraulic cylinder is the cylinder barrel, made of high-strength material. It provides a housing for the other internal components and contains the reciprocating piston and piston rod. The piston is a cylindrical component that fits tightly within the cylinder barrel. It divides the cylinder into two chambers: the cap end and the rod end. The piston rod extends from the piston and connects to the external load. Seals are provided to prevent fluid leakage and maintain separation between the rod side and the cap side.
Attributes
- Built to exact specifications for durability and reliability
- Withstands a maximum pressure of up to 24500 kPa
Applications
When hydraulic energy is converted to mechanical motion, the hydraulic cylinder controls the boom swing movement by providing linear motion.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Mini Excavators: 301.5, 302CR, 301.7CR
- Excavators: 301.8, 301.6
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
