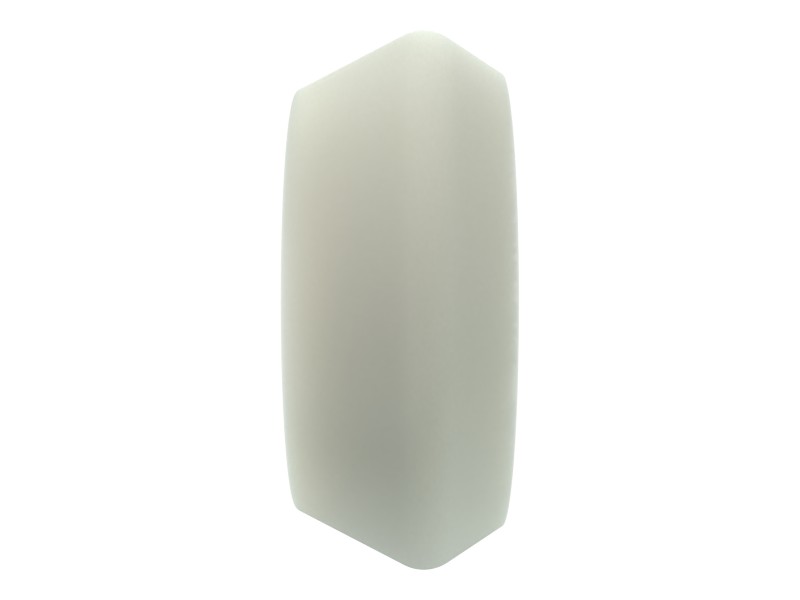

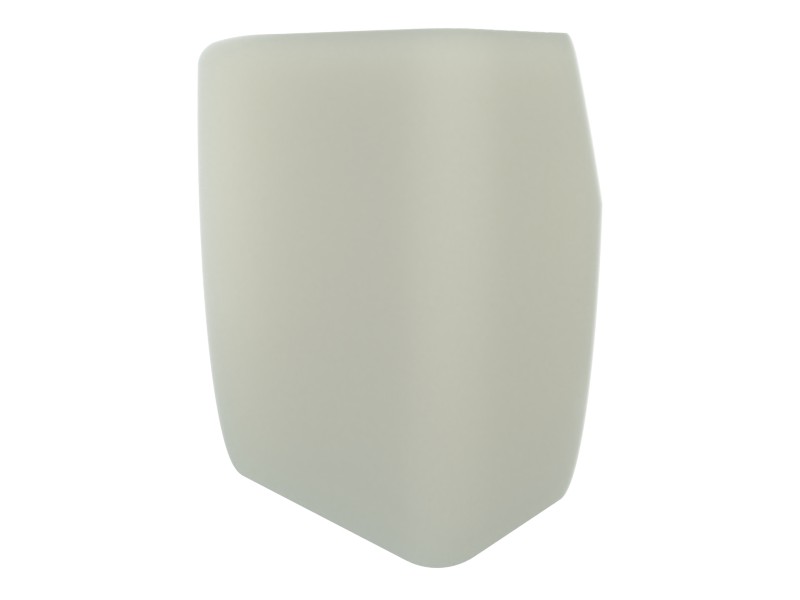

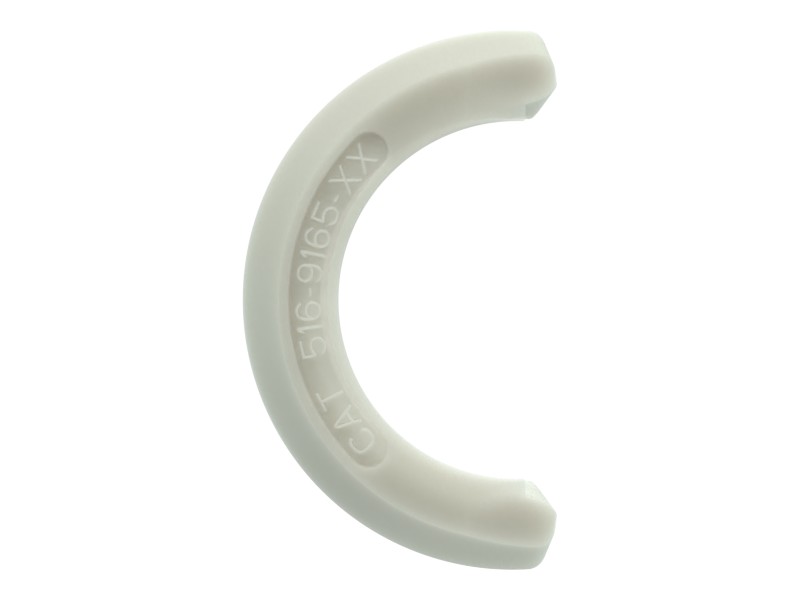

516-9165 Capsure Sleeve

Description

Sleeve for 70 and 80 Series Advansys tip adapters. Fits all Advansys tip types in the 70 and 80 Series.

Features

Hammerless retainer

Applications

Protector groups, shrouds, tip groups and more. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Compatible Models:

Grader

120M 120M 2 12M 3 12M 3 AWD 140M 3 140M 3 AWD 14M-3 14M3 160M 3 160M 3 AWD 16M3

Wheel Loader

924K 930M 938K 938M 950 GC 950G II 950H 950K 950L 950M 950M Z 962 962G II 962H 962K 962L 962M 962M Z

Wheel Excavators

M313C M314 M314F M315C M315D M316C M316D M316F M318C M318D M318D MH M318F M320D2 M320F M322C M322D M322D MH M322D2 M322D2 MH M322F M324D2 MH

Material Handler

MH3022 MH3024

Excavator

313 313 GC 313D2 313D2 GC 313D2-GC 315 315C 315D L 315F LCR 316E L 316F L 318C 318D2 L 318F L 320 320 GC 320D 320D L 320D LRR 320D RR 320D2 320D2 L 320E L 320E LN 320E LRR 321D LCR 322C 323 323D 323D L 323D LN 323D SA 323E L 323E LN 323E SA 323F 323F L 324D L 325 M315F M317F M318F

Track-Type Tractors

D3K2 LGP D3K2 XL D4K2 LGP D4K2 XL D5K2 LGP D5K2 XL

Specifications

Compatible Equipment

• Motor Graders: 120, 14, 140 GC, 16M3
• Track Loaders: 963, 953, 953K, 963K
• Wheel Excavators: M315GC, M315D, M322D, M320D2, M320, M315
• Dozers: D4, D3K2 LGP, D5K2 XL, D1
• Excavators: 313, 313 GC, 316 GC, 320, 324D L, 315D L, 320 GC, 323D, 318D2 L, 323D L, 315C, 323, 315 GC, 320D2 GC, 320D2 L, 323D2 L, 316 GX, 313D2, 326, 320D RR, 320D L, 315, 320D, 320D2
• Wheel Loaders: 924K, 950 GC, 938K, M314, 926M, 950
