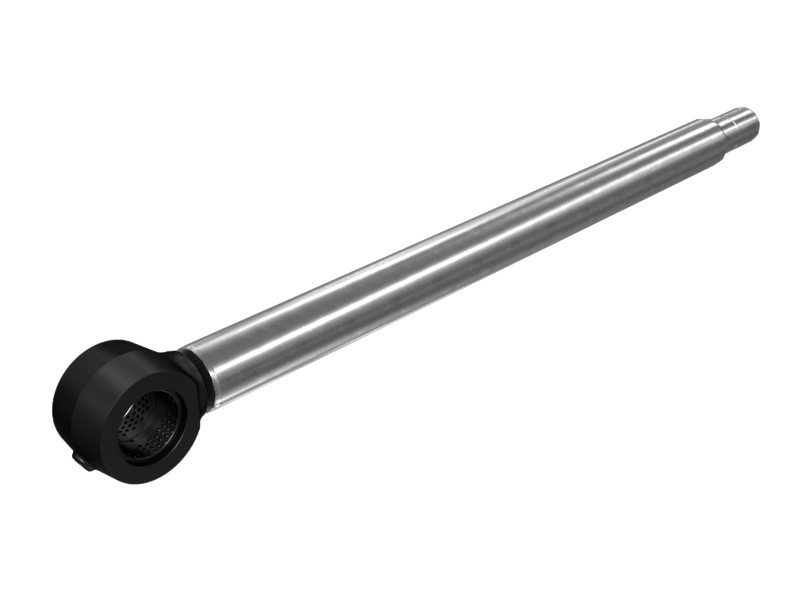

516-5836 240 mm Long Stick Cylinder Rod
Cat® 2240 mm Long Stick Cylinder Rod for Hydraulic Systems
Description
The stick cylinder rod in a hydraulic system transfers the force generated by hydraulic oil to external loads and mechanisms. When hydraulic pressure acts on one side of the piston, it creates a differential force that extends or retracts the rod. It is connected to the piston inside the cylinder and moves back and forth within the cylinder bore. The rod is sealed to prevent fluid leakage and maintain pressure inside the cylinder.
Attributes
- Provides a smooth surface finish and enhanced corrosion resistance.
- Control and monitoring of the hydraulic system.
Applications
The stick cylinder rod in a hydraulic system transfers the force generated by hydraulic oil to external loads and mechanisms. The rod is sealed to prevent fluid leakage and maintain pressure inside the cylinder.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Excavators: 320, 323, 320D L, 320D2 L, 333, 320D2 GC, 323 GX, 330GC, 330 GC, 323D2 L, 325, 320D, 320D2, 330
