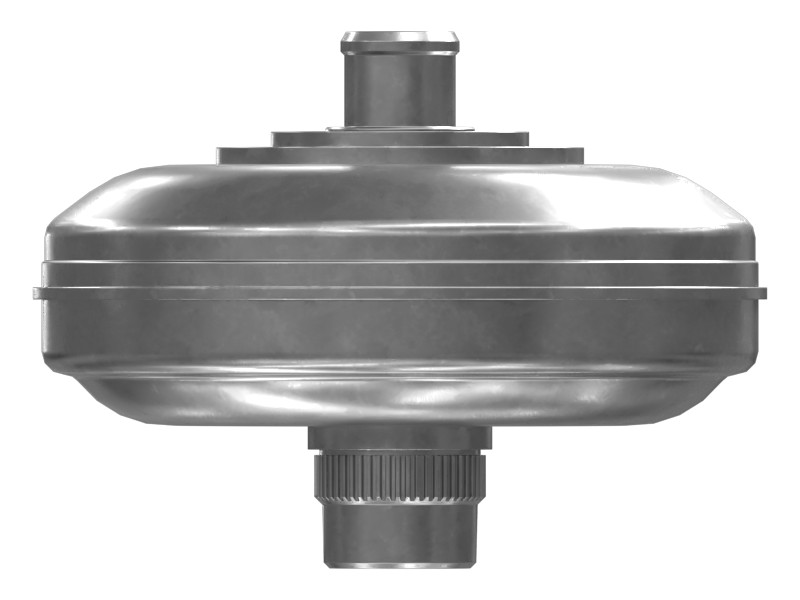

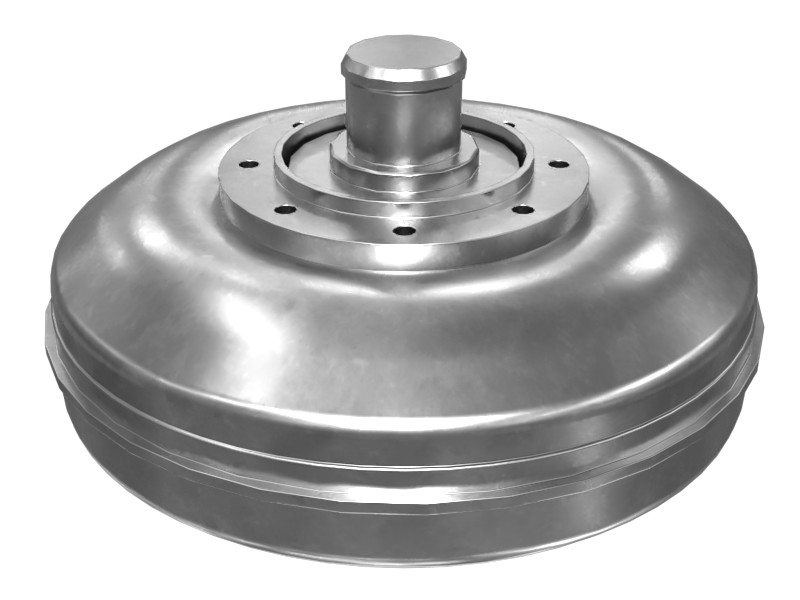

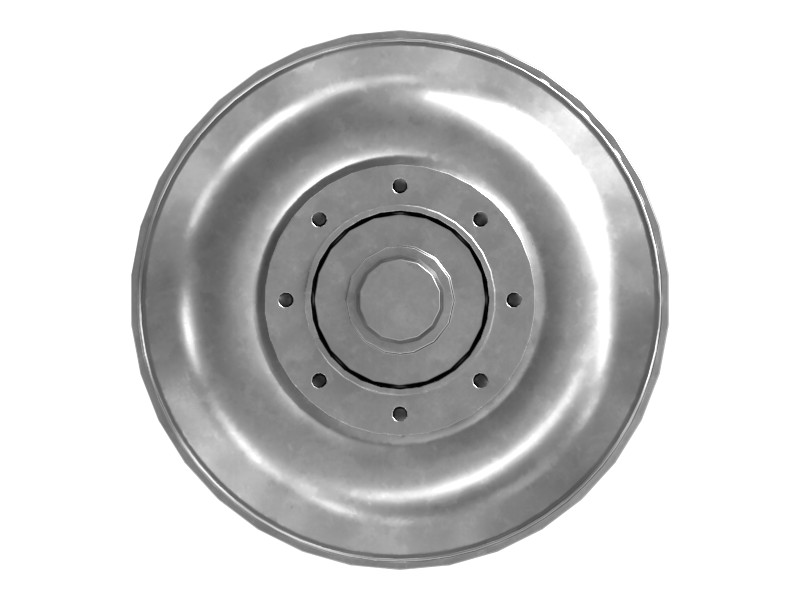

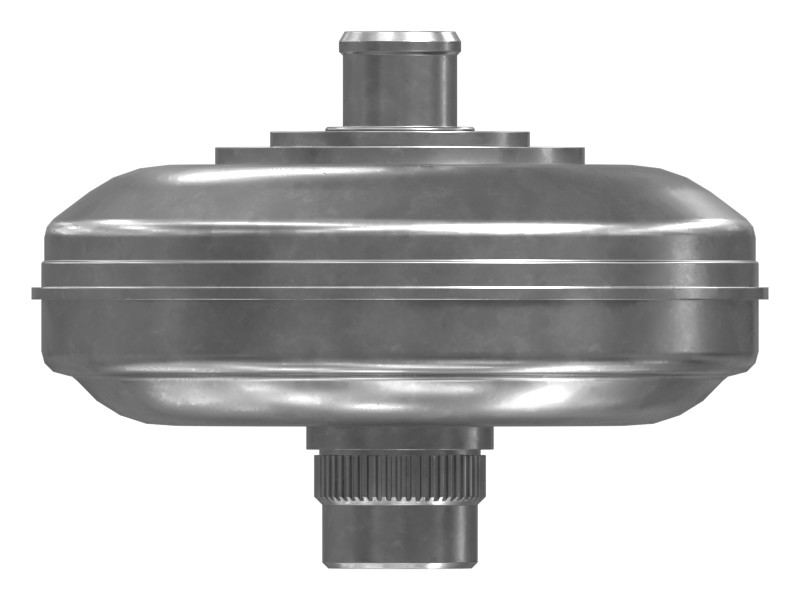

510-7484 Torque Converter for 950 GC Medium Wheel Loader
Cat® Torque Converter for 950 GC Medium Wheel Loader
Description
The torque converter (for example, part number 510-7484) hydraulically and mechanically multiplies engine torque and transmits it to the transmission.
When a piece of heavy equipment becomes bogged down, the torque converter plays an important role in providing extra push. It does this by simultaneously reducing RPM and increasing engine torque.
Features
- Flange Diameter: 188 mm (7.40 in)
- Thread Size: M12x1.5
- Internal spline A tooth count: 27
- Internal spline B tooth count: 46
- Number of External Spline Teeth: 54
- Overall Length: 273 mm (10.74 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|
Compatible Equipment
- Wheel Loaders: 950 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
