Description

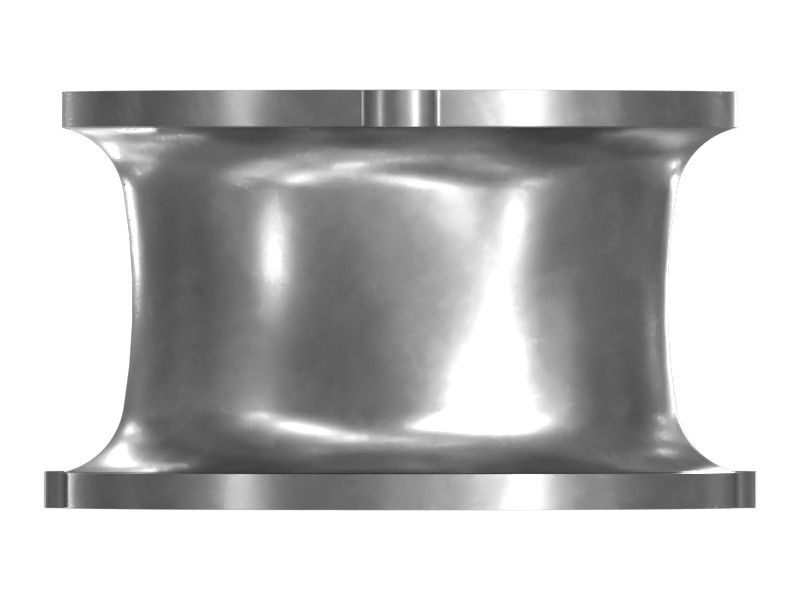

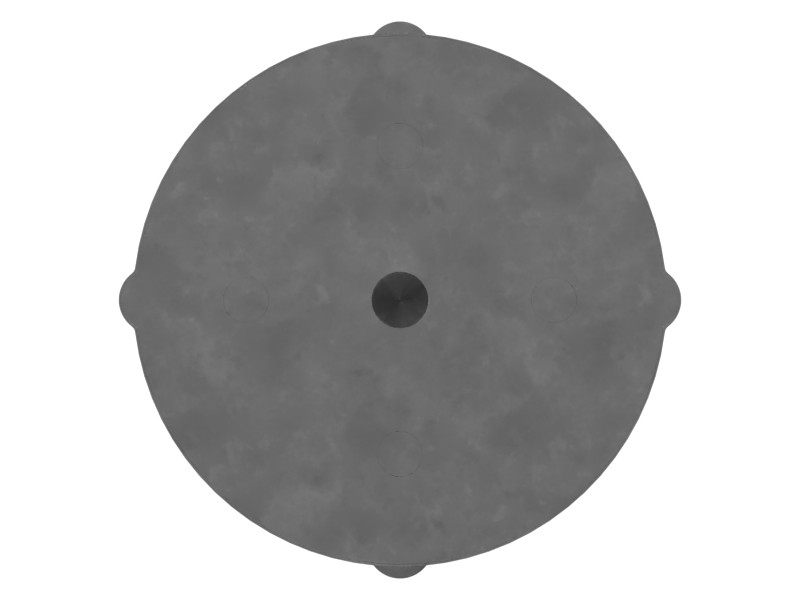

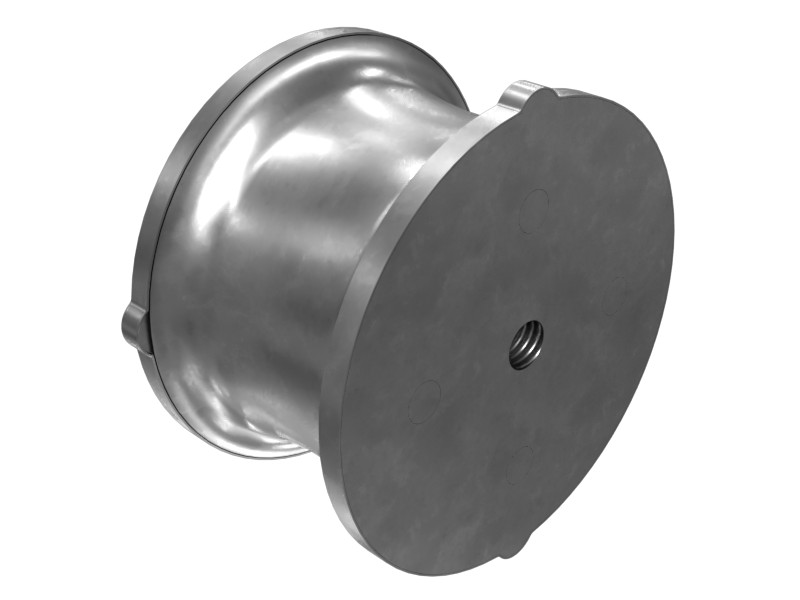

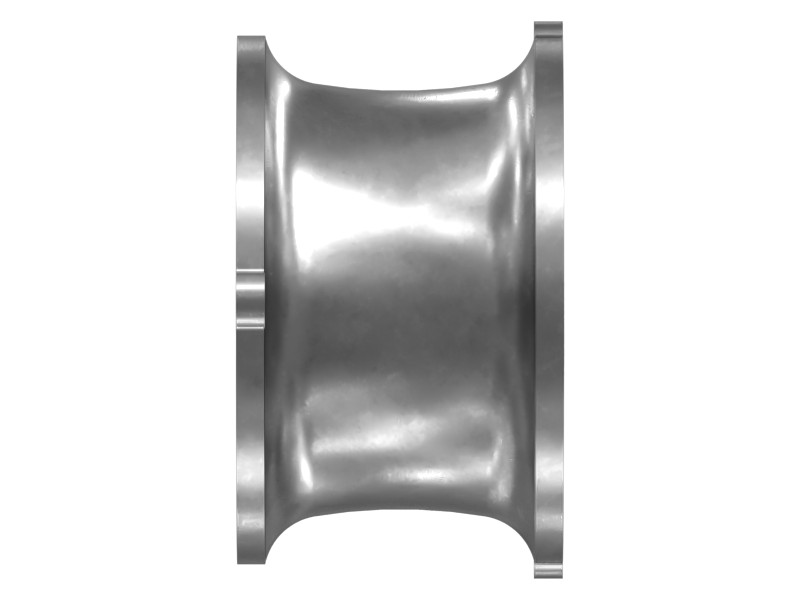

The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
The platform base features an integrated flange and inner sleeve for easy bolted connections. The mount is installed through the center hole and secured with 2 or 4 flange bolts.
Applications
Platform mounts are widely used in various Cat system installations and work well in connections involving sheet metal, such as electrical panels/boxes, coolers, and HVAC components.
Specifications
| Diameter | 163.8 mm |
|---|---|
| Height | 101.6 mm |
| Mounting Type | Base – Not Applicable |
| Material Description | Rubber |
| Hole Size | 20 mm |
| Flange Hole Spacing | Not Applicable mm (Not Applicable in) |
| Overall Height or Sleeve Length | 101.6 mm (4.0 in) |
| Sleeve ID or Thread | M20 mm (Not Applicable in) |
| Flange Hole-to-Hole Width | Not Applicable mm (Not Applicable in) |
Compatible Equipment
- Compactors: CP54B, CS11, CS12, CP12 GC, CS-583D, CS7, CP11 GC, CS-563E, CS-54, CS56B, CS79B, CS78B, CS68B, CS54B, CS74B, CS-56, CP56B, CS-533E, CS64B, CS-54B
- Mini Excavators: 308
- Excavators: 432
