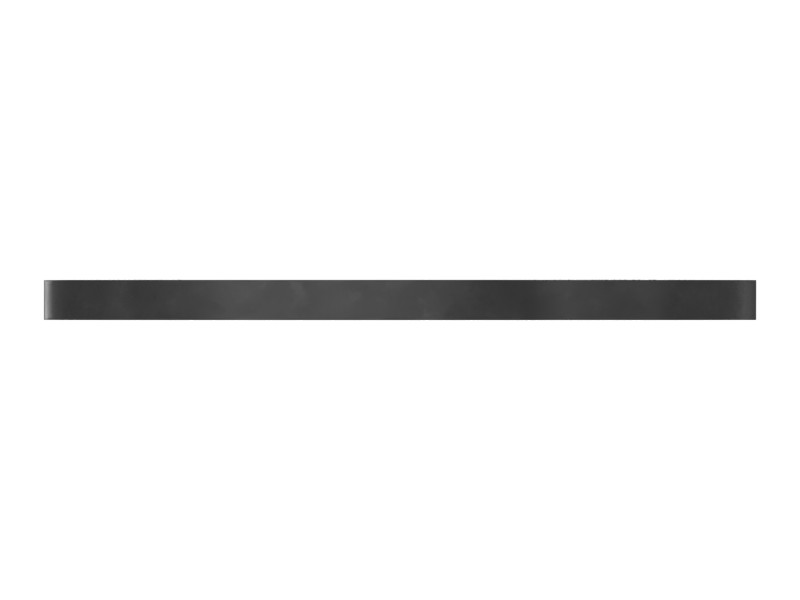

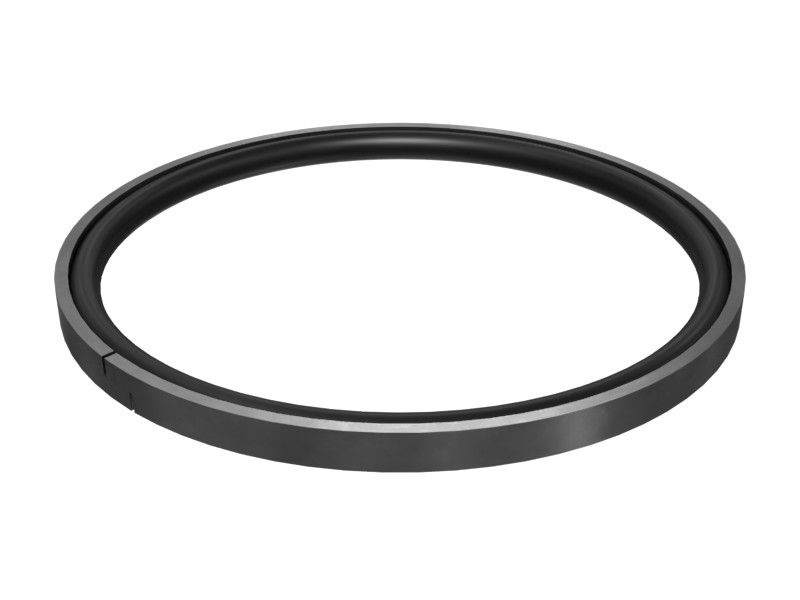

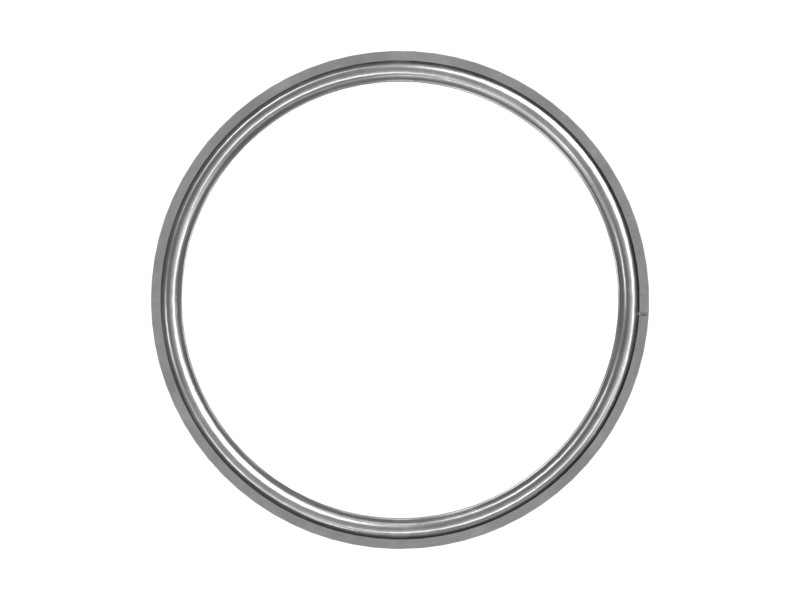

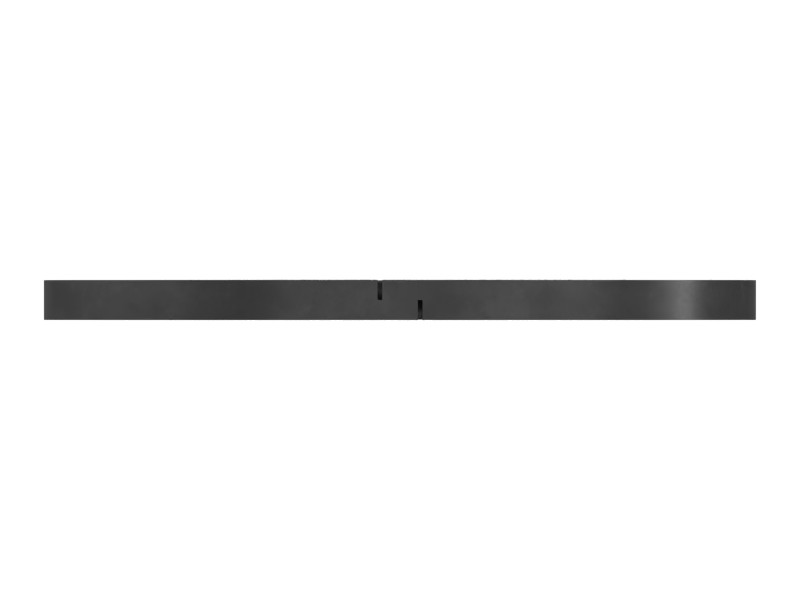

506-2322 160 mm Bore Two-Piece Seal
Cat® Two-Piece Seal for Hydraulic Cylinders, consisting of a plastic seal ring and a rubber piston ring expander
Description
The piston seal ring is used to prevent oil from flowing between the cylinder rod end and the cylinder head end.
Features
- Groove Axial Width: 9.63 mm (0.379 in)
- Groove Diameter: 150.62 mm (5.930 in)
- Bore Diameter: 170.00 mm (6.693 in)
Applications
Used in hydraulic cylinders. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 150.6 mm (6.69 in) |
|---|---|
| Cross-Section Width | 9.6 mm (0.38 in) |
| Material | Polyamide Plastic |
Compatible Equipment
- Track Loaders: 972
- Compactors: 834K
- Dozers: D11
- Excavators: 330D L, 637K, 340, 325D L, 336D L, 336F L, 336F, 336D2 L, 336E L, 336F L XE, 336E LH, 336F LN, 330D, 336D2 GC, 336D2 XE, 325C, 330C, 385C L, 340D2 L, 385C, 330C L, 336E, 336E H, 336E LN, 336D2, 336D
- Wheel Loaders: 966M, 966 GC, 980M
Additional information
| Machine Model | 325C, 325D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D2 L, 385C, 385C L, 637K, 834K, 966 GC, 966M, 972, 980M, D11 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Compactors |
| Part Source | Genuine OEM |
