Description

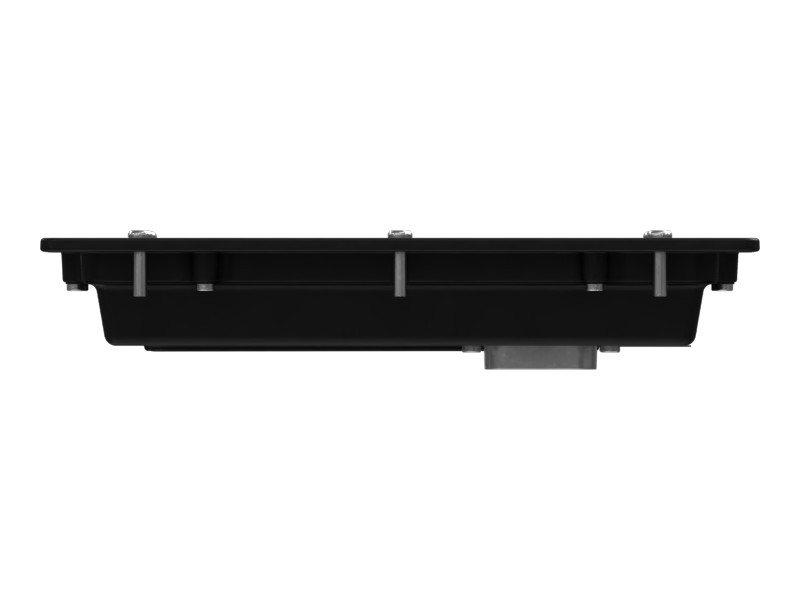

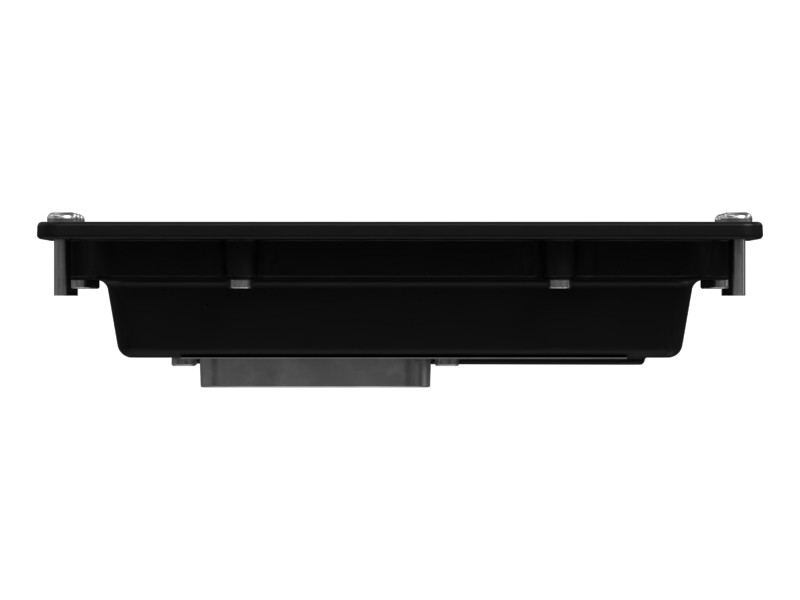

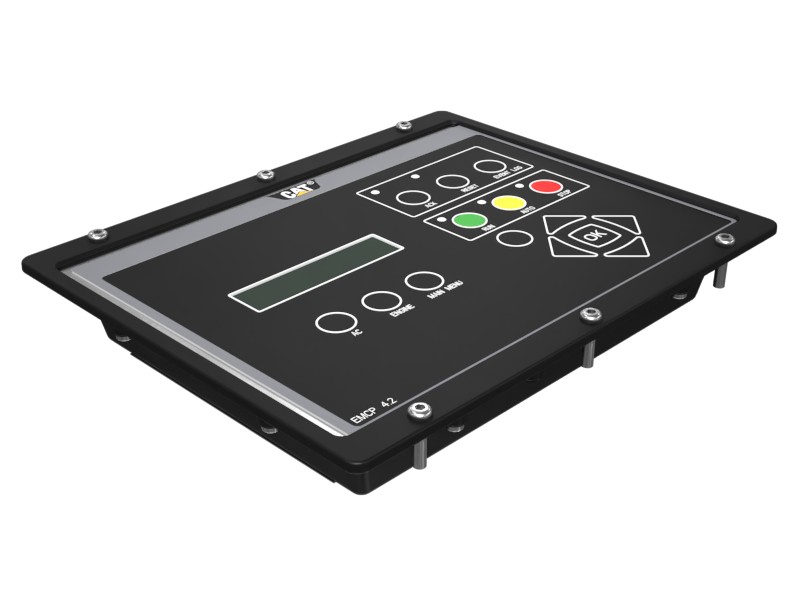

The EMCP 4.2 panel is an aftermarket retrofit upgrade solution that supports end-of-life management of generator set electronic modular control panels and can be customized for power generation applications by Cat Electronic Technician. The retrofit is a ready-to-install panel; only the oil pressure sensor, coolant temperature sensor, and engine speed sensor need to be installed and wired. This panel can also be used when upgrading from EMCP 2.x or 3.x generator set controllers.
Features
Offers the following enhanced features:
- Engine operating status – start, run, cooldown, stop, idle
- Engine diagnostic information – coolant temperature, oil pressure, speed, battery voltage, and operating hours
- Simple, easy-to-use interface design that displays data on the screen
- Programmable, with automatic setpoints integrated with voltage and frequency selection
- Access port for the electronic technician
- Panel sized to fit factory display
- Space reserved for adding Product Link
Applications
- For more information, contact MECHSC.
Specifications
| Width | 308 mm (12.13 in) |
|---|---|
| Height | 247 mm (9.72 in) |
| Depth | 50.6 mm (1.99 in) |
Compatible Equipment
- Generator Sets: G3516C
- Engines: C15, C32
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
