Description

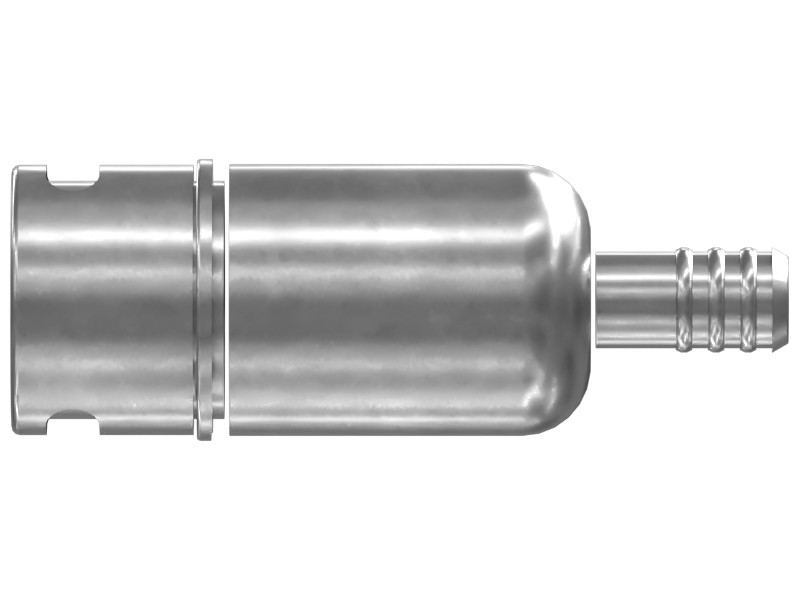

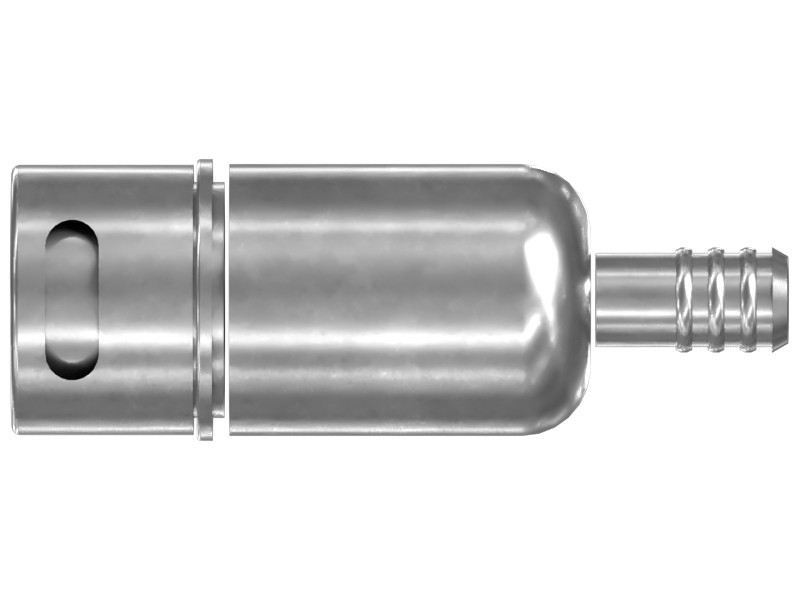

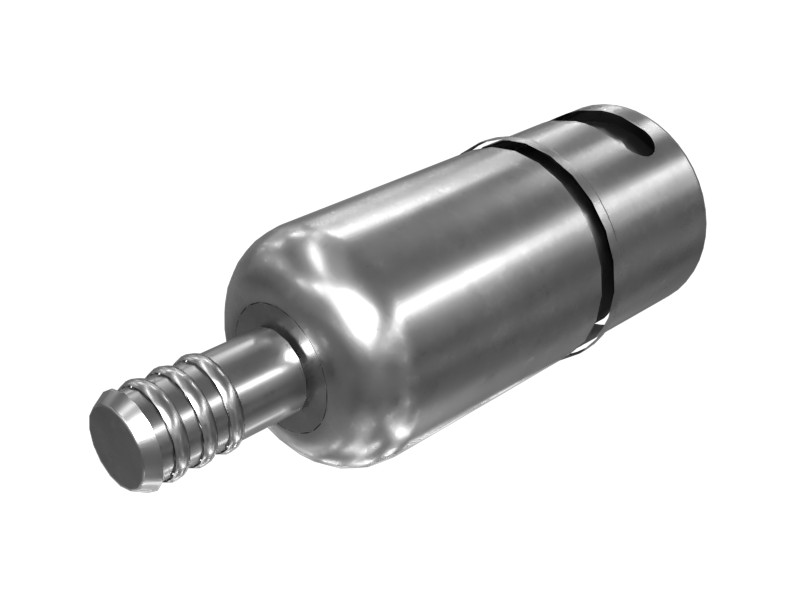

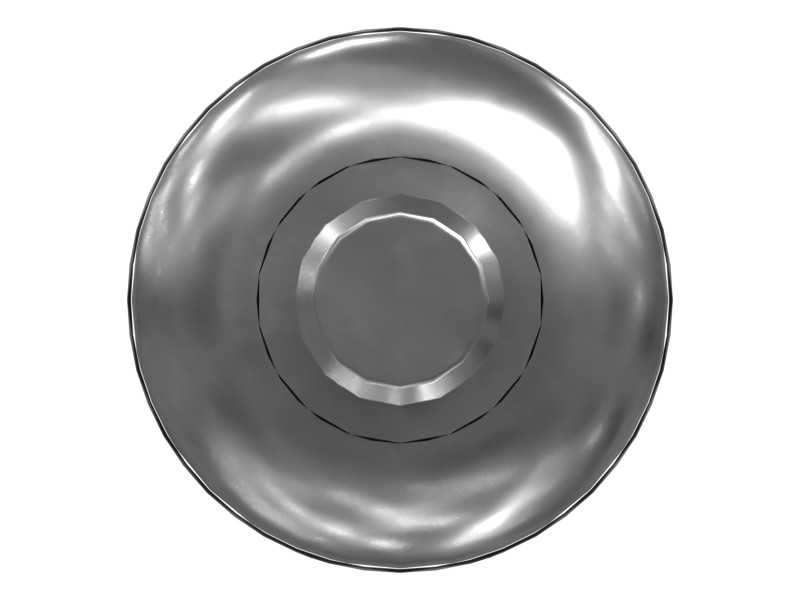

The fueling foot valve is a valve that controls fuel flow in a fuel transfer pump. It is usually installed at the bottom of the fuel tank and is designed to prevent fuel from flowing back into the tank when the pump is off. The valve is activated by the pressure of the fuel being pumped, which opens the valve and allows fuel to flow through.
Features
- Controls fuel flow and prevents fuel from flowing back into the tank when the pump is off
- Prevents debris from entering the valve and clogging the fuel system
Applications
The fueling foot valve is an important component of the fuel transfer pump, which moves fuel from the tank to the engine.
Specifications
| Material Description | Steel |
|---|---|
| Flange Hole Spacing | 21.25 in |
| Length | 145.034 (Closed); 156.972 (Open) mm (5.71 (Closed); 6.18 (Open) in) |
| Outside Diameter | 53.09 mm (2.09 in) |
| Thickness | 0.2 in |
| Weight | 0.9 kg (0.37 lb) |
Compatible Equipment
- Motor Graders: 316F
- Track Loaders: 973K, 953, 963, 953K, 963K
- Dozers: D6N, D6T, D6T LGP, D6K2, D4
- Excavators: 313, 313 GC, 320, 323, 320 GC, 330GC, 330 GC, 326, 313F L, 333, 325, 315, 313F LGC, 315F LCR, 326GC, 335, 315 GC, 323GC, 333 GC, 326 GC, 330
