Description
Cat® flange connectors and flange clamps meet the highest standards of quality, reliability and durability. These flange components are manufactured to tight tolerances to ensure leak-free connections. Every Cat flange connector and flange clamp meets or exceeds industry standards for working pressure, cyclic loading and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Connection component for fluid-carrying tubes and hoses
- Meets or exceeds industry-standard part performance and provides a leak-free connection

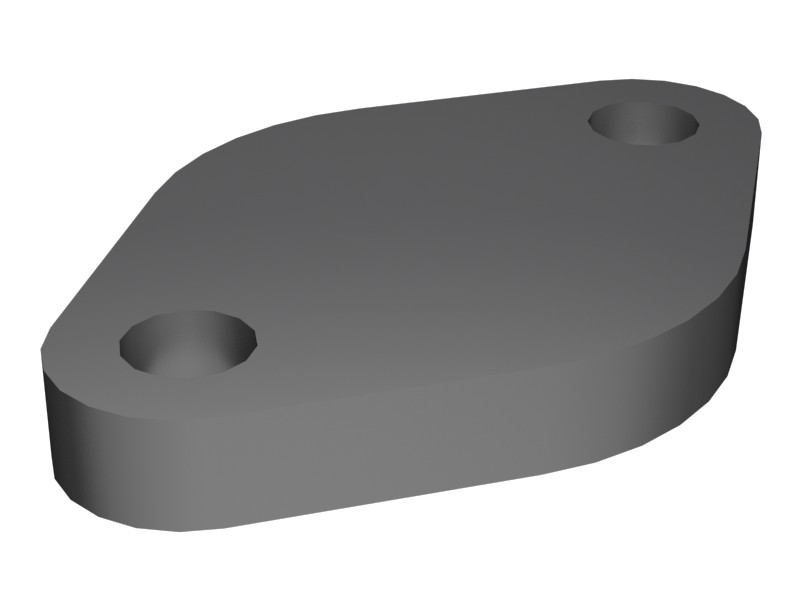

- Images provided are for reference only. Flange component construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Flange connectors and flange clamps are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Plated Steel |
Compatible Equipment
- Generator Sets: 3406B, 3406C, 3516C, 3512B, 3512E, G3516, C9, G3516C, C4.4
- Track Loaders: 824C, 994K, 834H, 826G, 826K, 824G, 826H, 995
- Cold Planers: PM620, PM622, PL83, PL87, PM-200
- Compactors: 824K, 825K, 834K, C-15
- Engines: C15, C18
- Excavators: 3456, 374D L, 390F L, 374F, 390D L, 374, 657G, 3512C, 385B, 3516B, 3508B, 3516E, 385C FS, 390F, 6015, 385C, 365C L, 621G, 385C L, 395, 637G, 637K, 637E, 374F L, 6060, 365C, 6015 FS, 6018, 6015B, 3101, 390D
- Asphalt Pavers: AD45, AD30
- Wheel Excavators: MD6200
- Dozers: D10T2, D9, D8, D8T, D8R, D8N, D9T, D10T
- Wheel Loaders: 980G, 988K, 988G, 988H, 986H, RM500B, R2900 XE, R3000H, R2900G, 836, 834
- Off-Highway Trucks: 772G, 745C, 770G, 785, 740, 740B, 789D, 740 GC, 793D, 735, 789, 745, 785D, 793
Additional information
| Machine Model | 3101, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6015B, 6018, 6060, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 785, 785D, 789, 789D, 793, 793D, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 986H, 988G, 988H, 988K, 994K, 995, AD30, AD45, C-15, C15, C18, C4.4, C9, D10T, D10T2, D8, D8N, D8R, D8T, D9, D9T, G3516, G3516C, MD6200, PL83, PL87, PM-200, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
