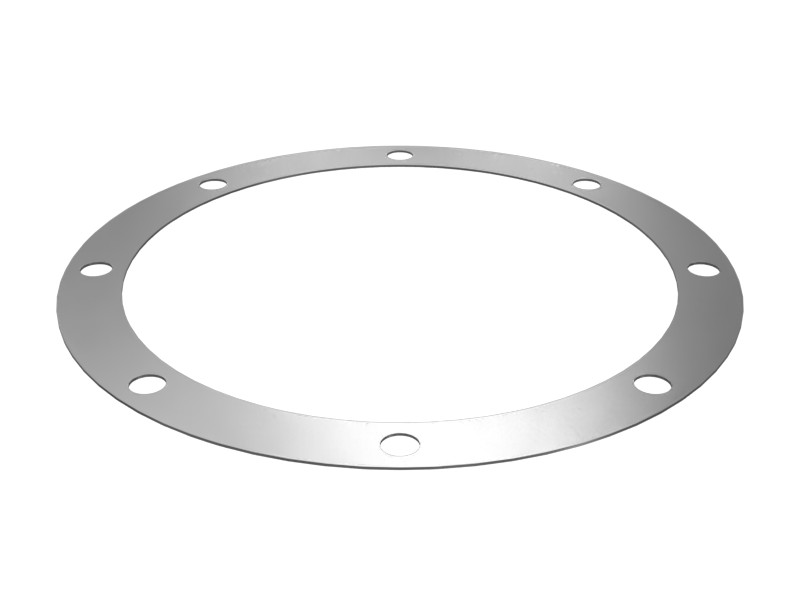

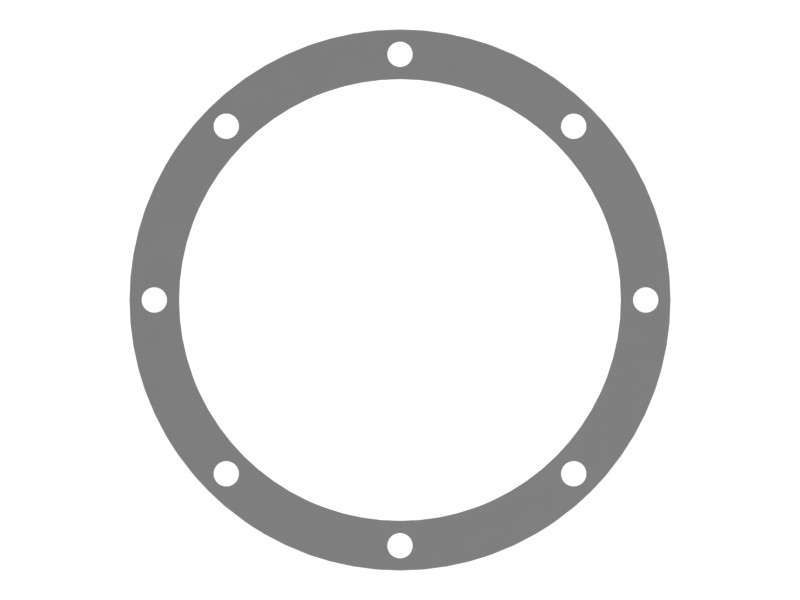

4W-7749 0.8 mm Thick Round Engine Gasket
Cat® 0.8 mm Thick Round Gasket
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A round gasket is a seal used to fill the space between two or more mating surfaces, typically used to prevent the joined components from leaking into or out of each other while under compression. The gasket is designed with the right combination of material and form to deliver the desired performance for your application.
Features
- Comes with 8 mounting holes to fit 3/8" attachment sizes.
- Manufactured to exact specifications for rugged durability, reliable performance and high efficiency.
- Designed to withstand high temperatures and pressures, so it can maintain its sealing capability.
Applications
The round gasket is used in applications that require vibration damping, packing, noise reduction, and sound insulation. Mainly used on Caterpillar G3606, G3608, G3616, and G3612 gas engines, C280-12, 3612, 3616, 3606, 3608, C280-16, 3508, and 3608 military generator sets, 3612, 3616, 3606, 3608, and C280-16 industrial engines, 3612, 3616, 3606, and 3608 locomotive engines, C280-16, C280-12, 3612, 3616, 3606, 3608, C280-6, and C280-8 marine engines, and C280-12 and C280-16 petroleum engines.
Specifications
| Hole Size | 10.5 (8X) mm (0.41 (8X) in) |
|---|---|
| Inside Diameter | 180 mm (7.08 in) |
| Material | Medium Compressibility, Thin Gasket Material |
| Outside Diameter | 220 mm (8.66 in) |

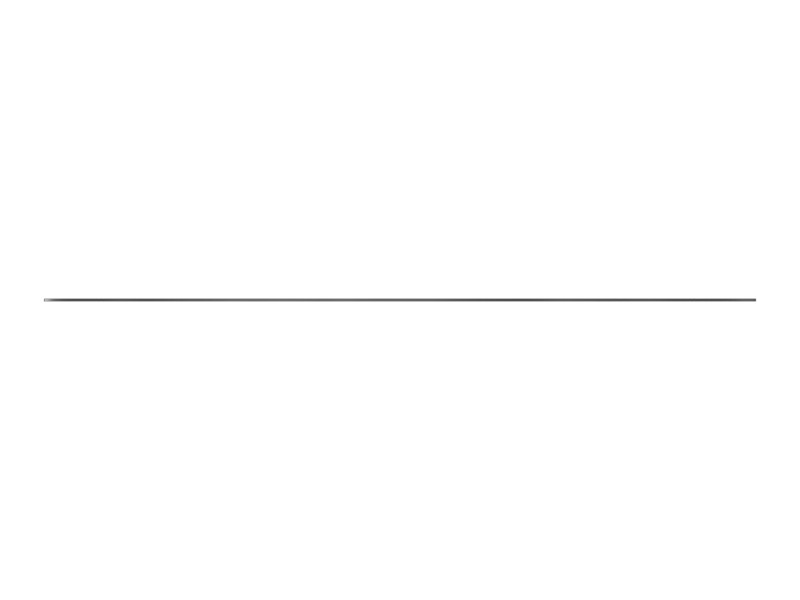

| Thickness | 0.8 mm (0.03 in) |
| Style | Flat Plate |
| Weight | 0.02 kg (0.05 lb) |
| Type | Round Standard |
Compatible Equipment
- Motor Graders: 3606
- Wheel Excavators: MD6200
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
