Description

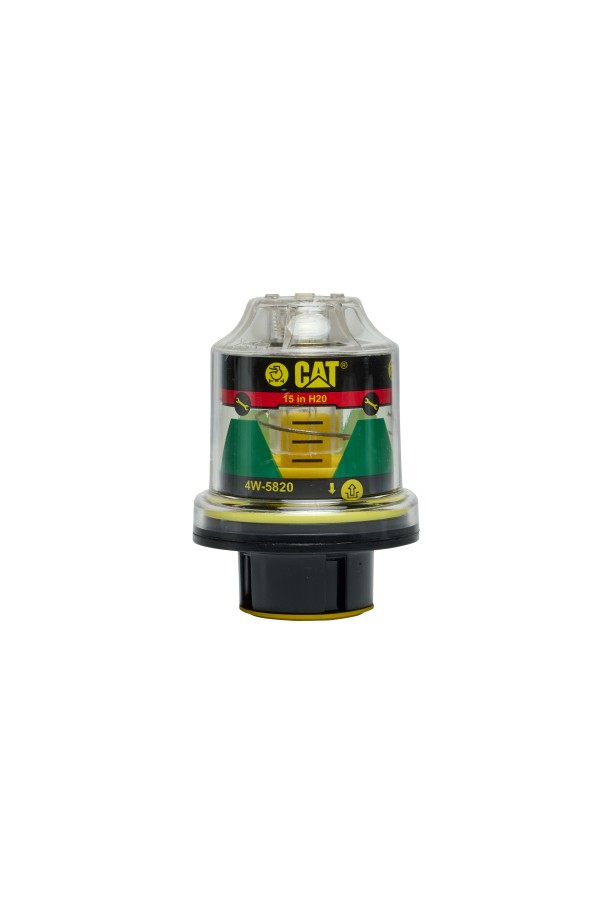

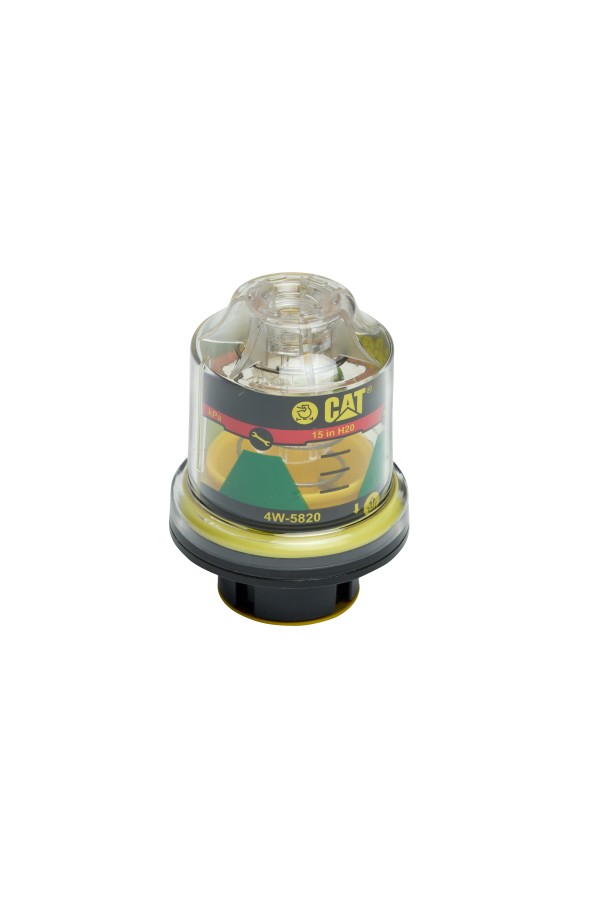

Cat Air Filter Service Indicators determine when a filter needs to be replaced for optimal filter performance.
Features
- Polypropylene indicator
- Vacuum Port: 1/8-27 NPT
- Trip Point: 3.7 kPa
- Normally closed switch
- Designed to work with other Cat parts to ensure the equipment reaches its full potential.
Applications
Service indicators are used to identify when the engine air filter should be replaced. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts are designed for heavy-duty applications such as severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion and excessive dust.
Specifications
| Thread | Pipe 1/8-27 NPT |
|---|---|
| Trigger Point | 3.7 |
| Type | Two Strap |
| Height | 71 mm (2.81 in) |
| Description | Graduated |
| Outside Diameter | 50 mm (1.98 in) |
| Material | Polyolefin Plastic |
Compatible Equipment
- Generator Sets: G3516
- Motor Graders: 3606
- Engines: C32, C18
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
