Description

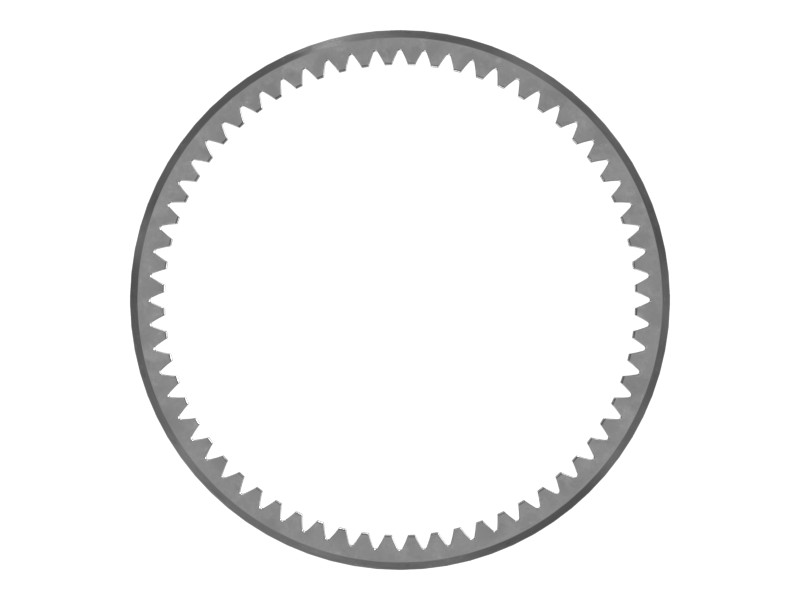

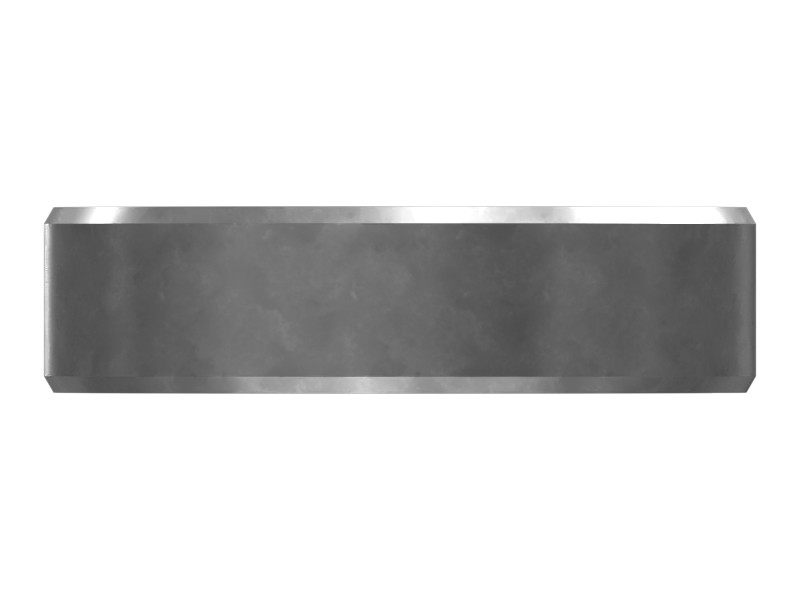

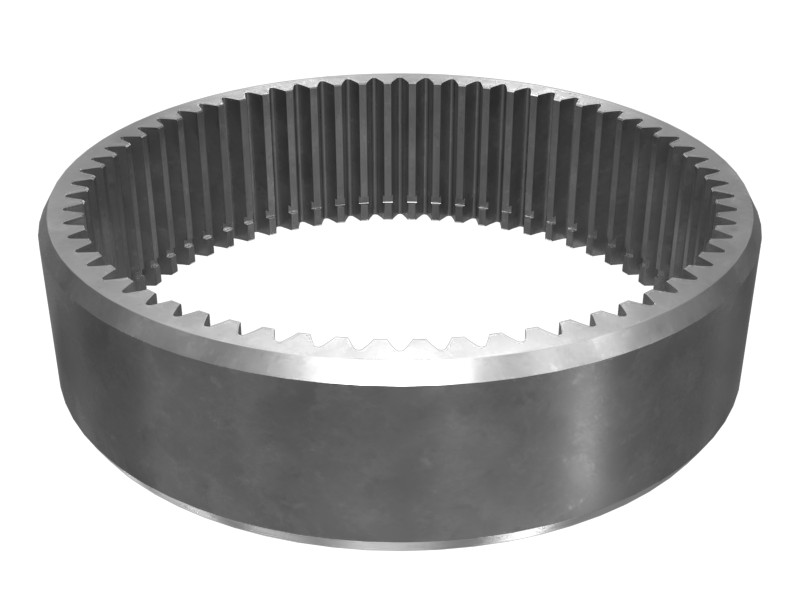

Gear used in the final drive planetary gear set.
Features
Cat® final drives are designed to maximize system performance and balance system life. The metallurgy, heat treatment, tooth profile, and surface finish of the cam final drive gears are designed to maximize the life of the mating gears, ensuring that the final drive maintains optimal performance.
Recommended Applications:
All Applications
Specifications
| Width | 102 mm |
|---|---|
| Material | Low Alloy Steel |
| Diameter | 391 mm (15.4 in) |
| Material Description | Steel |
| Number of Teeth | 64 |
| Outside Diameter | 373 mm (14.685 in) |
| Inside Diameter | 326.74 mm (12.863 in) |
| Height | 97 mm (3.818 in) |
Compatible Equipment
- Wheel Loaders: R1300G
- Off-Highway Trucks: 730, 725, 725C2, 735
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
