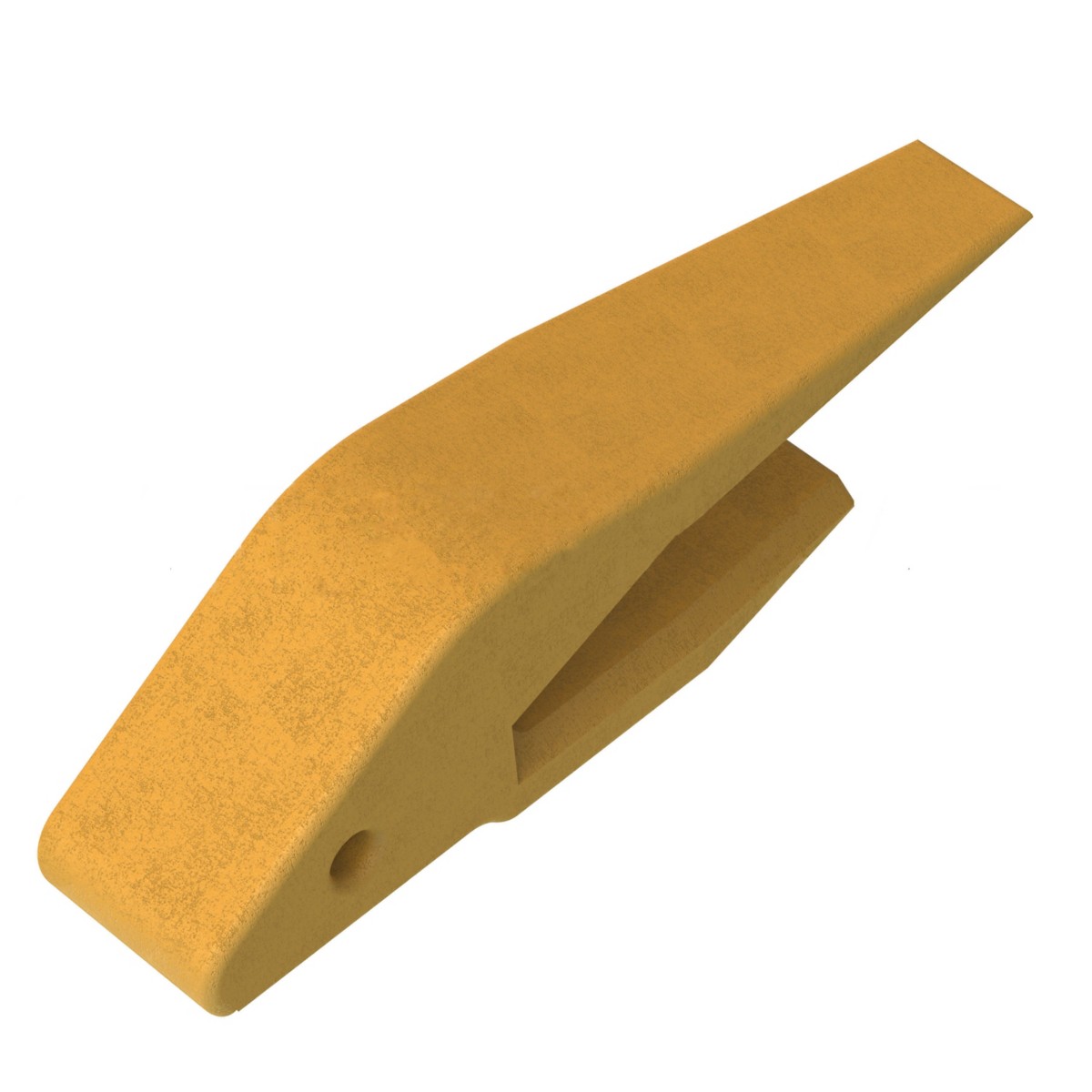

4T-8456 J Series (Side Pin) Adapter
J450 Left Side Pin Adapter
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Fitment data not listed — send us your machine model or serial number to confirm.
Description
J450 Left Adapter for 45 mm Cutting Edge with 22.5 Degree Bevel Angle
Features
Cat® Two-Strap Adapters have a lower profile than flush-mount adapters, producing greater penetration for higher productivity.
Recommended Applications:
Wheel Loader Buckets
Specifications
| Width | 100 mm (3.937 in) |
|---|---|
| Bevel Angle | 22.5 |
| Attachment Method | Weld-On |
| Number of Holes | 0 |
| Hole Spacing | 0 mm |
| Overall Length | 458 mm (18.031 in) |
| Corner Stop Angle | 0 |
| Bottom Bar Length | 178.9 mm (7.043 in) |
| Machine Model | Loader |
| Wear Material | Standard Optional |
| Attachments | Weld-On |
| Base Edge Thickness Grade | 45 |
| Series | J Series |
| Wear or Durability | Standard |
| Type | Two Strap |
| Size | J450 |
| Adapter Size | J450 |
Additional information
| Part Source | Genuine OEM |
|---|
