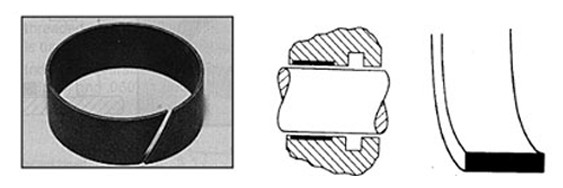

4T-7283 Nylon Wear Ring
Cat® Nylon Wear Ring, Rod Diameter: 69.85 mm
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat wear rings (for example, part number 4T-7283) guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seal.
Features
- Material: Nylon
- 30° cut angle
- Thickness: 3.20 mm (0.126 in)
- For use with 69.85 mm (2.75 in) rod
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Groove Width – A (+/- 0.0762 mm) | 31.75 mm |
|---|---|
| Groove Width – A (+/- 0.003 in) | 1.25 in |
| Groove Diameter – B (+/- 0.001 in) | 3.01 in |
| Groove Diameter – B (+/- 0.0254 mm) | 76.33 mm |
| Material | Glass Fiber Reinforced Nylon |
| Rod Diameter | 69.85 mm (2.75 in) |
| Width | 31.5 mm (1.24 in) |
Compatible Equipment
- Dozers: D6R II, D6R, D7R II, D7R, D8N
