Description

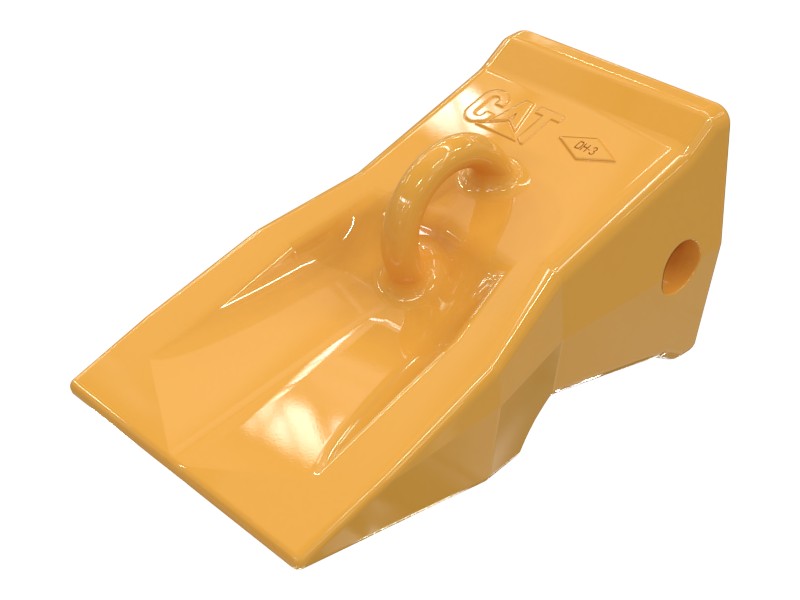

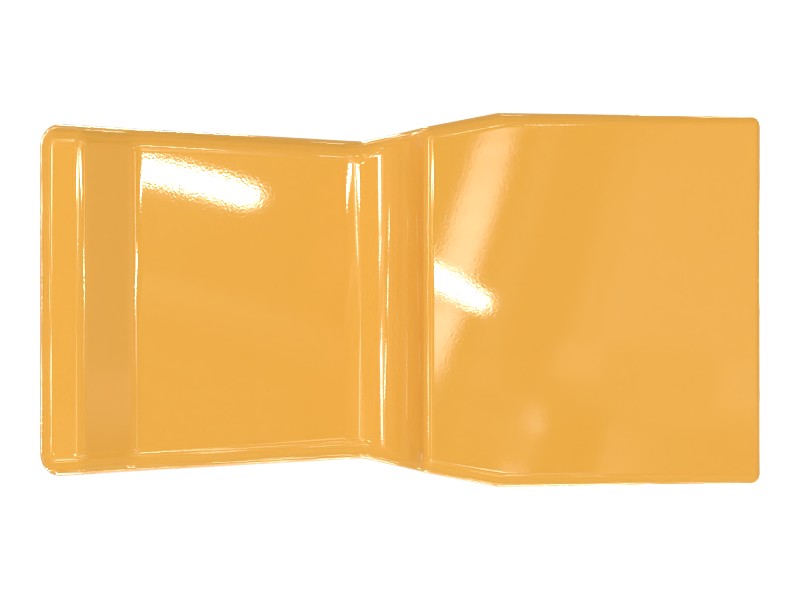

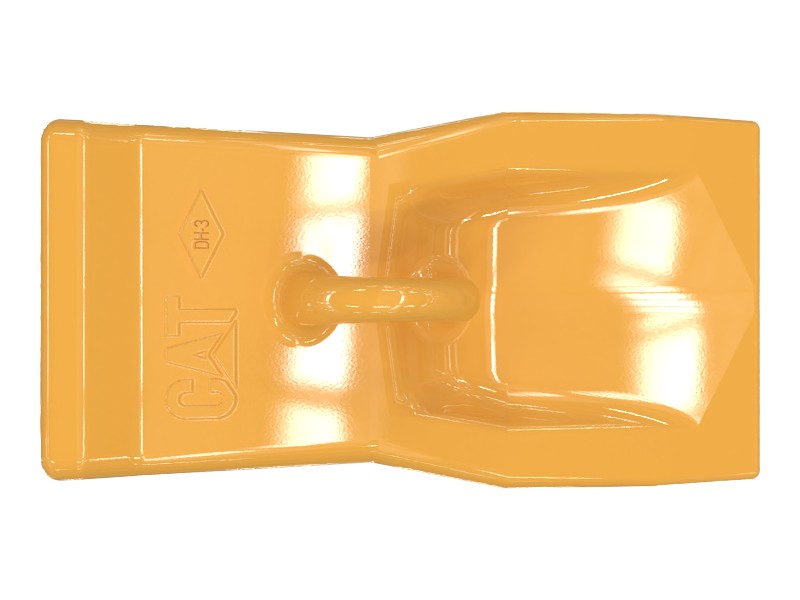

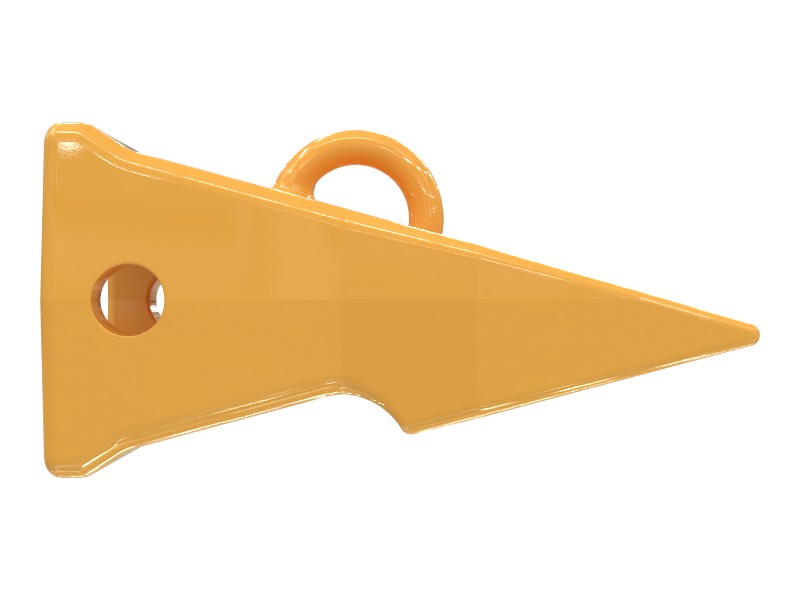

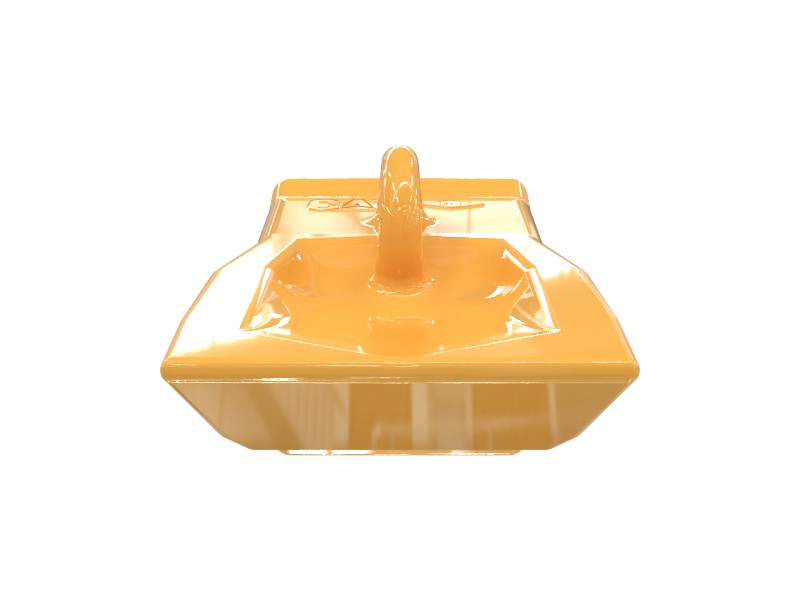

Cat® J Series tips offer unmatched manufacturing precision and prevent damage to the machine's bucket. Our Ground Engaging Tools (GET, Ground Engaging Tools) are designed around the inherent characteristics of your Cat equipment to provide consistent, outstanding protection.
With an industry-standard side-retained design, Genuine Cat bucket tips can be used in a wide range of applications, greatly increasing equipment versatility. With the standard pin and retainer system, installation and removal are quick. You can also retrofit with our innovative hammerless J Series CapSure™ system to make the job easier.
Wide tips are designed to keep the trench floor level and work best in easy-to-penetrate materials. Our tips are durable, cast from steel, hold their hardness, and offer long wear life so your machine delivers the performance you need. Always choose Genuine Cat GET to protect your investment.
Features
- Low, wide profile
Applications
- Keeps the trench floor level
- Low abrasion/impact, easy-to-penetrate materials
Specifications
| Overall Length | 415 mm (16.339 in) |
|---|---|
| Rear Width | 210 mm (8.268 in) |
| Rear Height | 210 mm (8.268 in) |
| Shape | Abrasion |
| Front Width | 226 mm (8.898 in) |
| Material | Alloy Steel |
| End Bit Size | J700 |
| Wear or Durability | Standard |
| Size | J700 |
| Series | J Series |
| End Bit Length | 415 mm |
Compatible Equipment
- Excavators: 385C L, 385C, 385C FS, 385B, 345C L
- Wheel Loaders: 992C, 992D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
