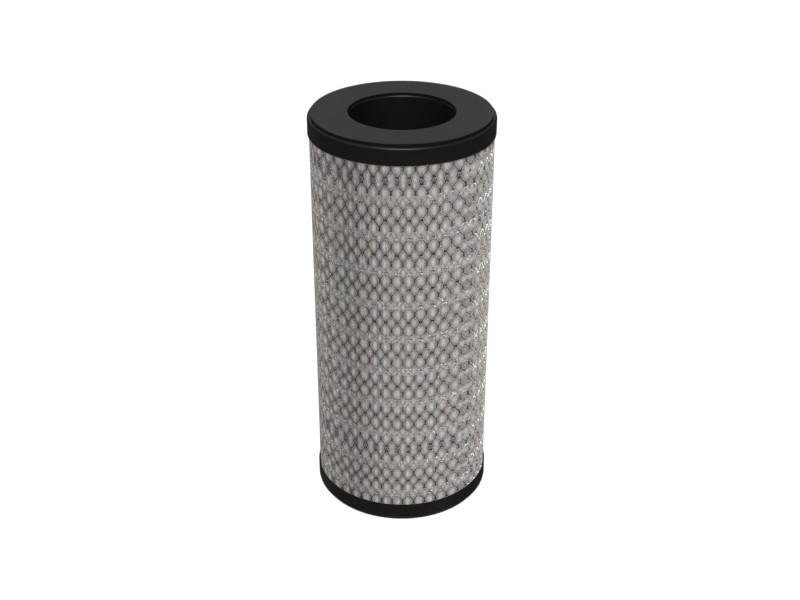

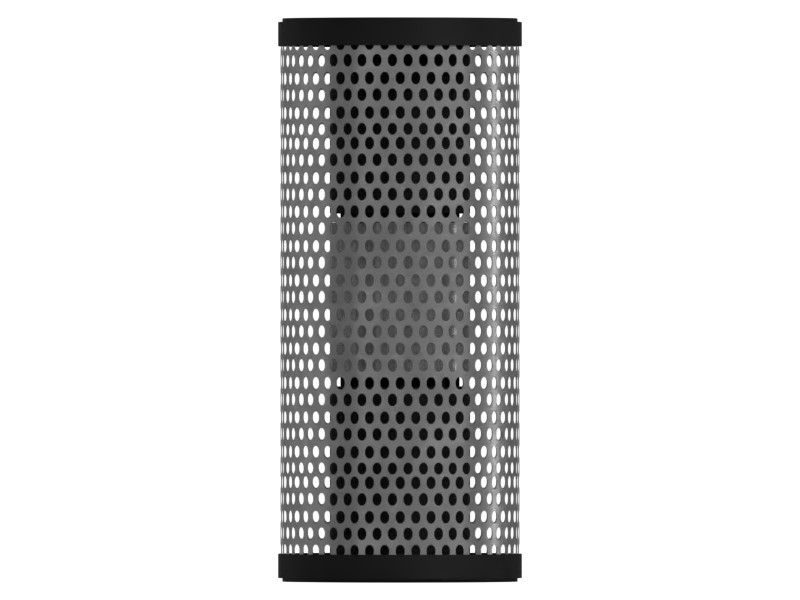

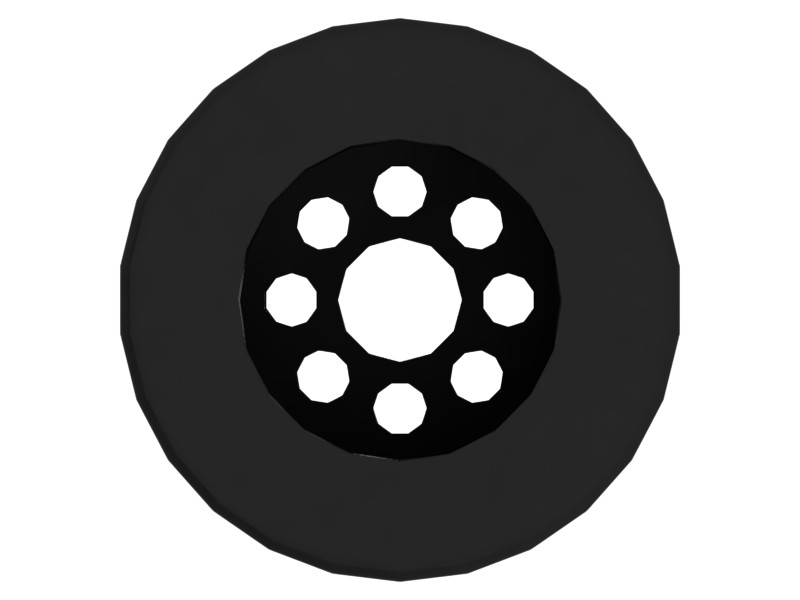

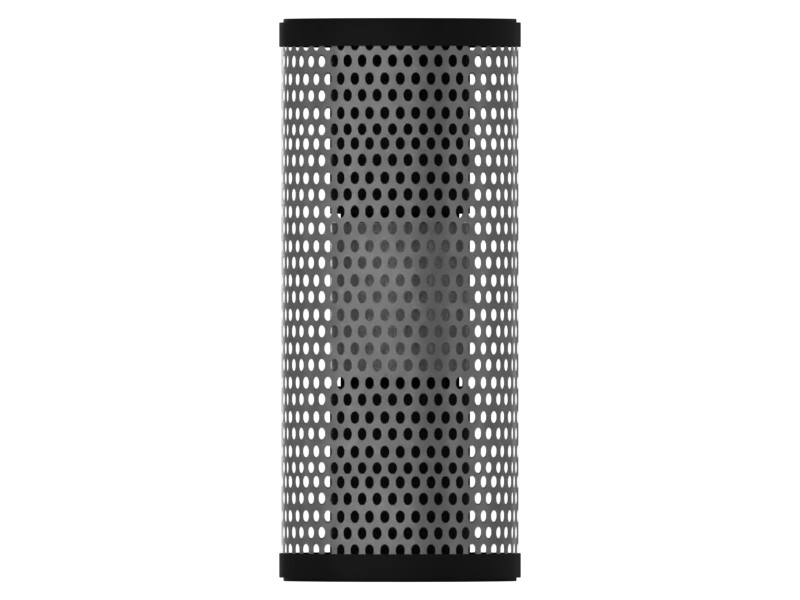

4T-3131 Hydraulic and Transmission Filter
Ultra High Efficiency Hydraulic/Transmission Filter – Fire Resistant
Description
Smart Cat® equipment owners choose Genuine Cat filtration products
Protect their machines and the businesses they depend on.
Cleanliness is key to keeping sensitive hydraulic and transmission systems properly lubricated. Cat Ultra High Efficiency (UHE) filters isolate harmful contaminants and abrasives to keep them from wearing tight-tolerance systems, providing optimal protection.
Cat Fire Resistant Hydraulic and Transmission Filters contain media that withstands fire resistant hydraulic fluids (which can break down typical cellulose or synthetic media), providing additional protection for your equipment and operators.
These filters are produced in our plants using precision automation and superior quality control, virtually eliminating filter-to-filter variation for a better fit on your Cat equipment and improved equipment function and efficiency. If you are not yet protecting your hydraulic system with Genuine Cat filters, switching is easy. Contact MECHSC or search for part numbers at catfiltercrossreference.com.
Features
- Unique media compatible with fire-resistant hydraulic fluids
- Provides all the features of Cat Ultra High Efficiency filters
Specifications
| Filter Type | Cartridge |
|---|---|
| Diameter | 101.6 mm (4 in) |
| Length | 235 mm (9.252 in) |
| Flow Direction | Out-to-In |
| Efficiency Rating | Fire Resistant (UHE) |
| Efficiency Category | Ultra High Efficiency |
| Material | Other Mixed: Metal-Nonmetal |
Compatible Equipment
- Motor Graders: 12H, 140G, 16H, 140H, 120H
- Track Loaders: 824C, 816F, 826G, 824G
- Dozers: D9R, D10N, D8R, D4E, D9L, D9N, D8L, D8N, D5H
- Wheel Loaders: 836, 980G, 972G, 966F, 988F, 992D, R1700G, R1600H, R2900G, R3000H
- Off-Highway Trucks: 740, 789, 735, 793, 777D, 771D, 777, 785
Additional information
| Machine Model | 120H, 12H, 140G, 140H, 16H, 735, 740, 771D, 777, 777D, 785, 789, 793, 816F, 824C, 824G, 826G, 836, 966F, 972G, 980G, 988F, 992D, D10N, D4E, D5H, D8L, D8N, D8R, D9L, D9N, D9R, R1600H, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
