Description

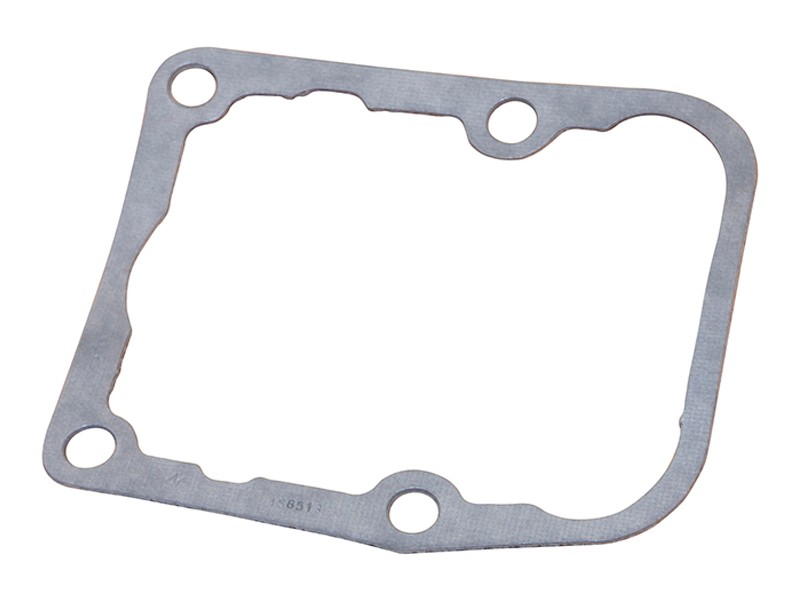

A governor cover gasket is a seal used to fill the space between two or more mating surfaces and is typically used to prevent leakage from or into the joined objects under compression. Gaskets are designed with a sensible combination of material and shape to provide the desired performance for your application.
Features
- Equipped with 4 mounting holes with a diameter of 0.344.
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Designed to withstand high temperatures and pressures while maintaining excellent sealing capability.
Applications
The governor cover gasket is located between the governor housing and the engine configuration assembly, and is also used in applications requiring vibration resistance, packing, noise reduction and sound insulation.
Specifications
| Hole Size | 8.73 (4X) mm (0.344 (4X) in) |
|---|---|
| Length | 91.95 mm (3.62 in) |
| Material | Low compressibility sheet gasket material |
| Style | Flat Plate |
| Thickness | 0.79 mm (0.03 in) |
| Weight | 0.01 kg (0.01 lb) |
| Width | 111.76 mm (4.4 in) |
Compatible Equipment
- Motor Graders: 120, 16, 140G
- Compactors: 814, 816, 815
- Dozers: D4E, D7G
- Wheel Loaders: 950, 980, 910, 834
