Description

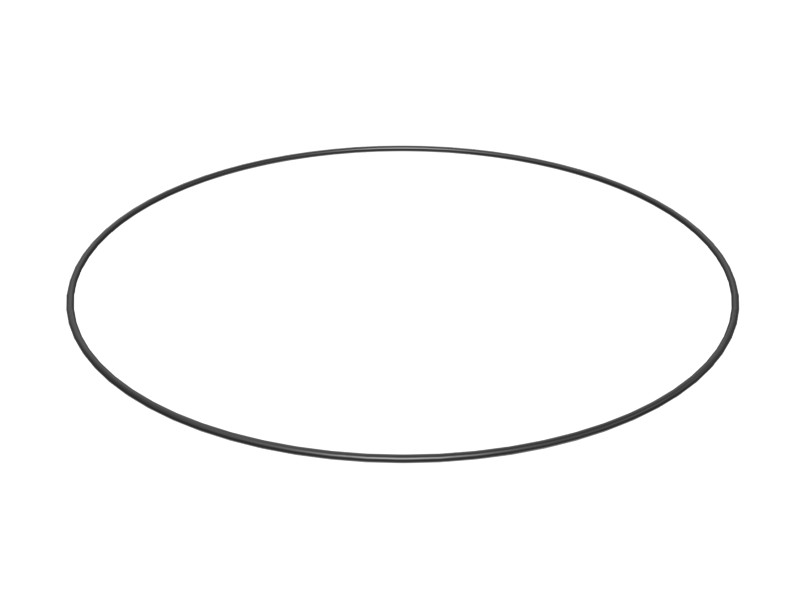

O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Polymer | NBR (Nitrile butadiene) |
|---|---|
| Material Hardness | 75A |
| Dash Size | 280 in |
| Cross-Section Diameter | 3.53 mm (0.139 in) |
| Inside Diameter | 355.19 mm (13.984 in) |
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
Compatible Equipment
- Motor Graders: 140 GC, 140K, 140G, 12H, 140H, 120H, 12K, 160K
- Dozers: D10T2, D10T, D9T, D9R, D9, D10
- Excavators: 3516E
- Wheel Loaders: 928HZ, 924GZ, 924HZ, 928G
- Off-Highway Trucks: 785D, 789D, 789, 785, 793D, 797F, 793F, 793, 735
Additional information
| Machine Model | 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 160K, 3516E, 735, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 924GZ, 924HZ, 928G, 928HZ, D10, D10T, D10T2, D9, D9R, D9T |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
