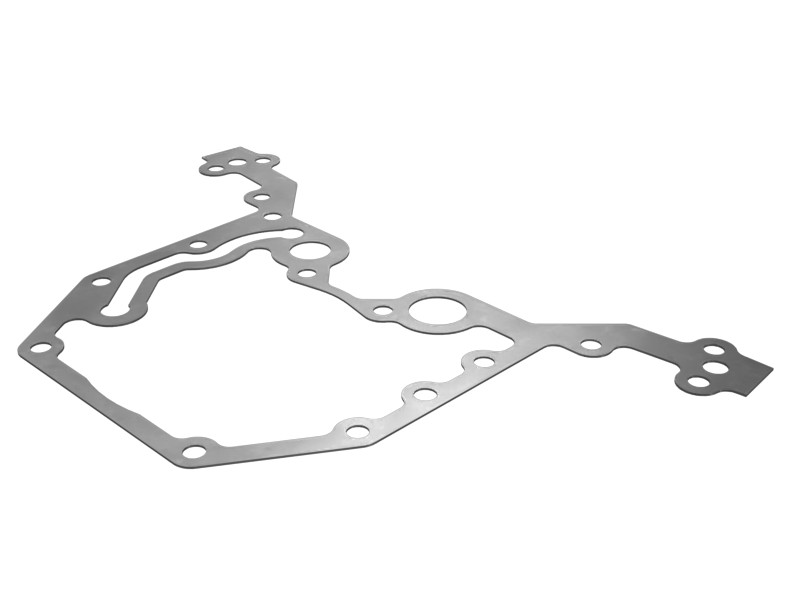

4P-7883 Fuel Pump Gasket
Cat® 0.8 mm Thick Fuel Injection Pump Housing Gasket
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The fuel pump gasket is a gasket that covers the gap between two or more mating surfaces and is typically used to prevent the joined components from leaking outward or inward under compression. Gaskets are typically made from flat sheet material, such as paper, rubber, silicone, metal, cork, felt, neoprene, nitrile rubber, fiberglass, polytetrafluoroethylene (also known as PTFE or Teflon), or plastic polymers (such as polychlorotrifluoroethylene).
Features
- Comes with 14 mounting holes for use with 1/4 fasteners
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
- Comes with 2 holes, sized 17 mm and 22 mm.
Applications
The fuel pump gasket is used to provide a tight, reliable seal between the fuel injection pump housing and the governor, and is also used in applications requiring vibration damping, packaging, and noise reduction and sound insulation.
Specifications
| Hole Size | 7.50 (14X); 8 (2X); 9 (2X) mm (0.29 (14X); 0.31 (2X); 0.35 (2X) in) |
|---|---|
| Height | 184 mm (7.24 in) |
| Length | 296 mm (11.65 in) |
| Style | Flat Plate |
| Material | Rubber Gasket Gasket |
| Thickness | 0.8 mm (0.03 in) |
| Weight | 0.05 kg (0.1 lb) |
Additional information
| Part Source | Genuine OEM |
|---|
