Description

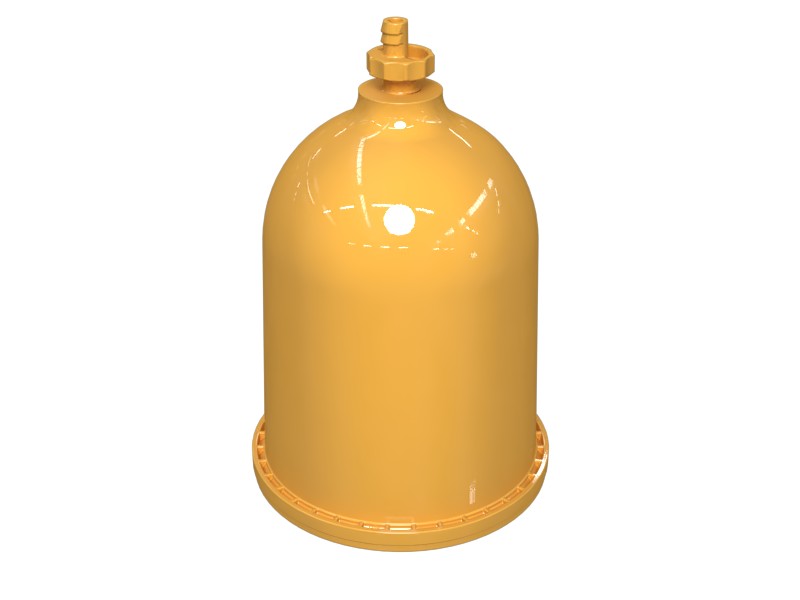

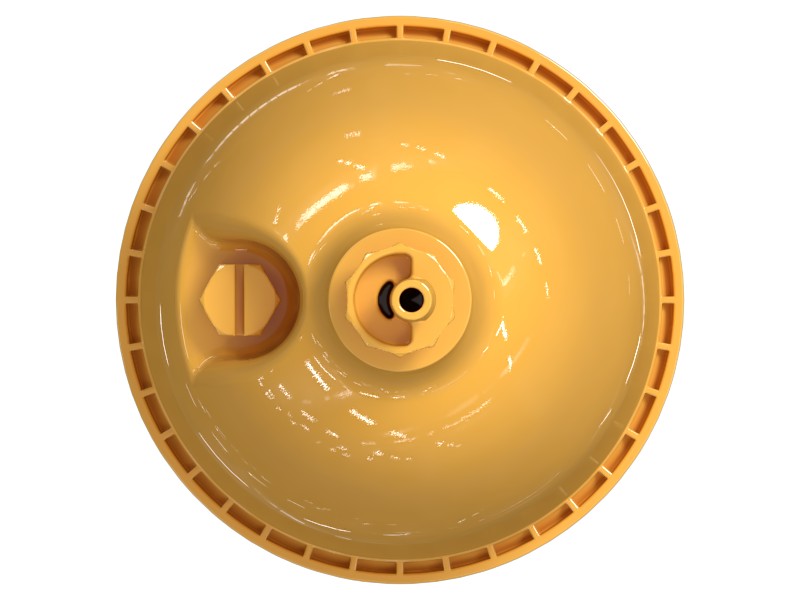

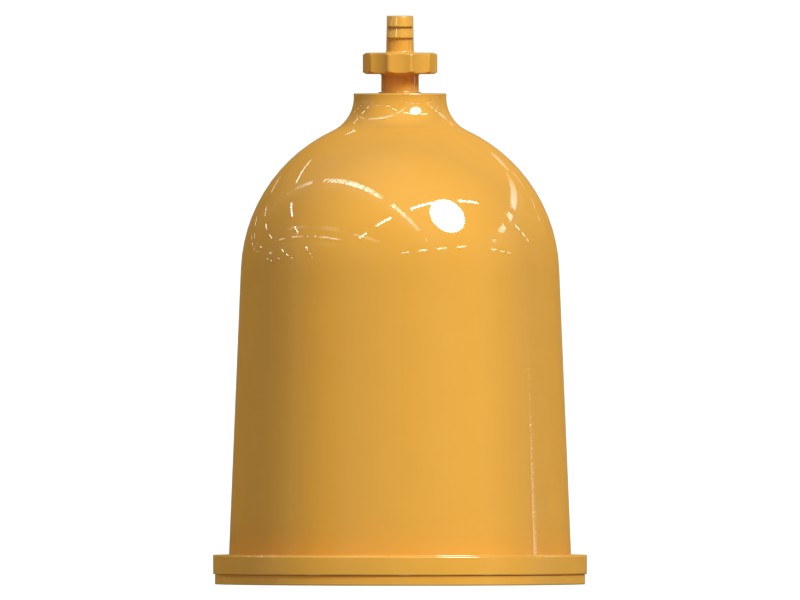

The fuel water separator bowl captures fuel contaminants removed during the filtration process while keeping the filter isolated from the environment.
Features
- Fuel water separator bowl with gasket and self-venting containment drain
- For use with 7.9 mm ID hose
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Housing Outside Diameter | 128.3 mm |
|---|---|
| Housing Length | 19.5 mm (0.768 in) |
| Filter Type | Cartridge |
| Overall Length | Not Specified mm (Not Specified in) |
| Outside Diameter | Not Specified mm (Not Specified in) |
| Flange Diameter | 128.3 (Cup) mm (5.05 (Cup) in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3406C, 3512E, G3516
- Engines: C15, C32, C27, C18, C175-16
- Excavators: 329D L, 3516B, 3512C, 3508B, 3516E
- Off-Highway Trucks: 777D
