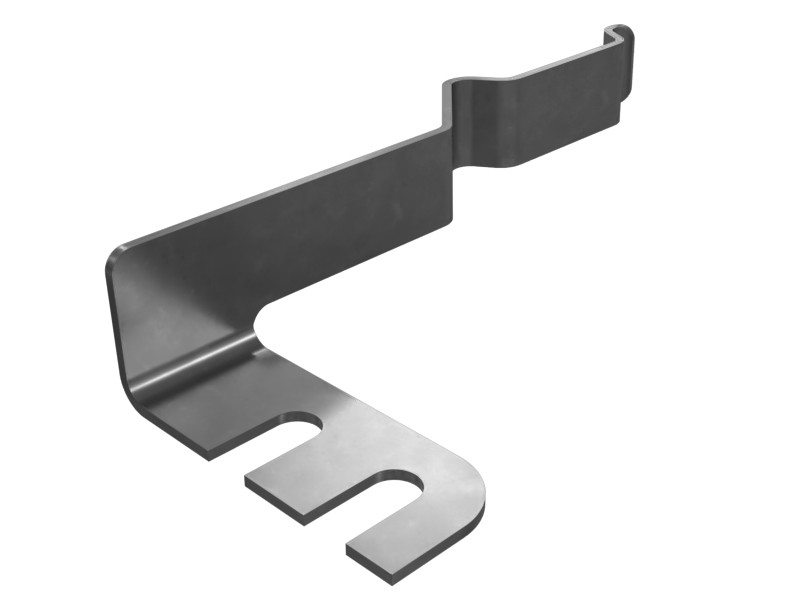

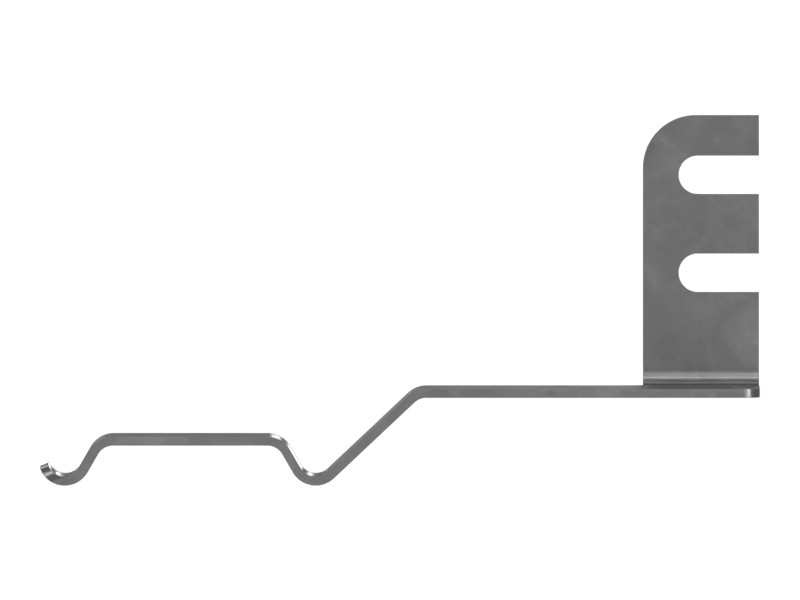

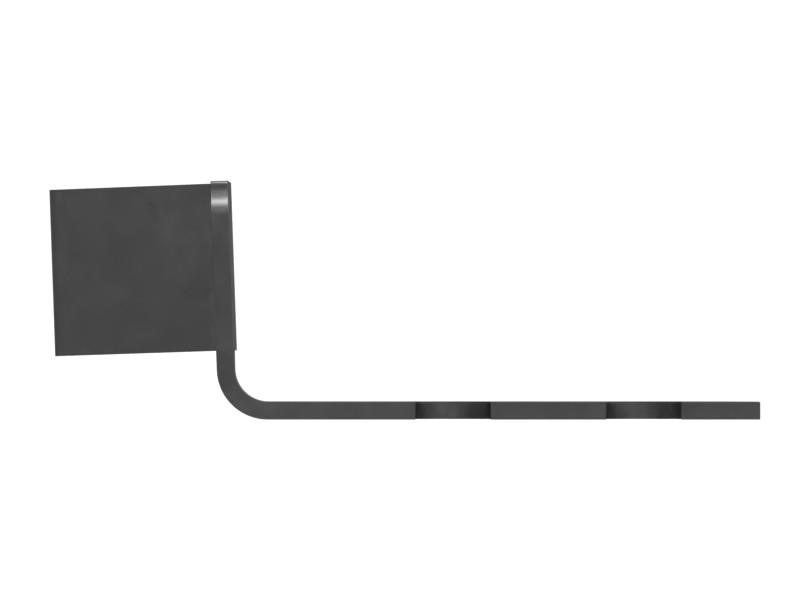

4P-4642 Retainer, 2.5 mm Thick
Cat® Steel Lifting Retainer for Engine Lifting, 2.5mm Thick
Description
The retainer is a lifting device used to lift the engine. It is usually made of high-strength steel and is used to hold the manifold securely in place during lifting operations. The lifting retainer is connected to the manifold with bolts or other fasteners and is then connected to lifting equipment such as a crane.
Features
● Plated and heat treated for excellent hardness
● Heat treated to Rockwell hardness C40-48 for high strength
Applications
The retainer is designed to distribute the weight of the engine evenly across the surface, preventing excessive weight at any one point.
Specifications
| Length | 205 mm (8.07 in) |
|---|---|
| Thickness | 2.5 mm |
| Weight | 2.29 lb |
| Material Thickness | 2.5 mm (0.09 in) |
| Width | 35 mm (1.38 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, G3516C, C4.4
- Track Loaders: 995, 994K
- Dozers: D11N, D11R
- Excavators: 3512C, 3508B, 3516B, 6060, 3516E
- Off-Highway Trucks: 785D, 777D, 789D, 793D, 785, 789, 793
