Description

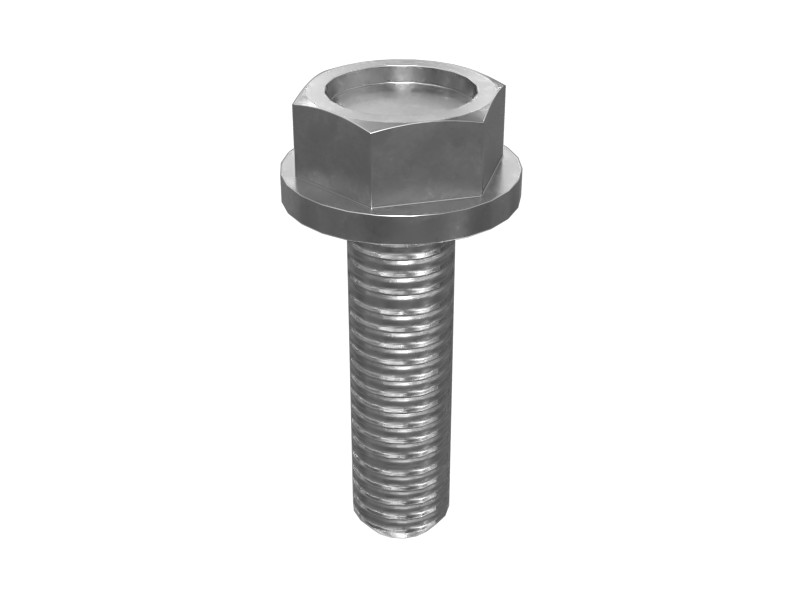

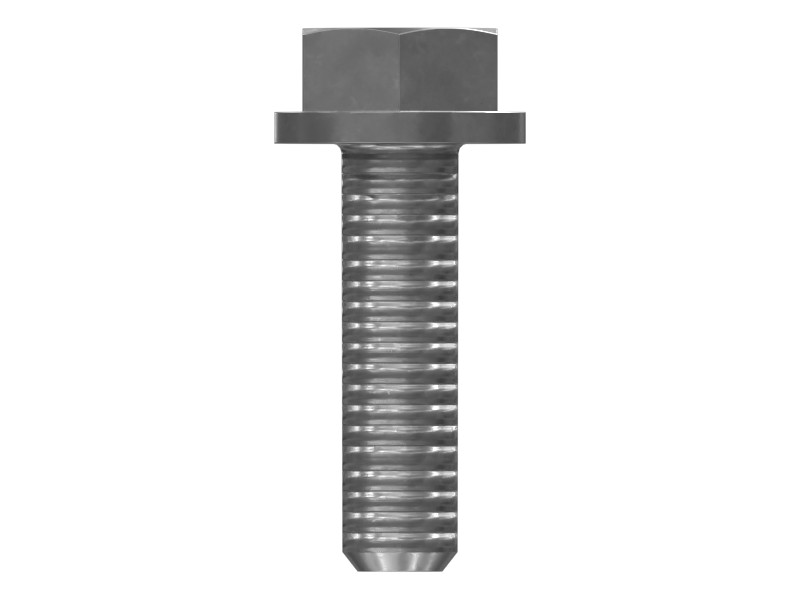

A flange hex bolt has a flange cast into the bolt head that acts like a washer to spread the load over a larger area. Flange bolts come in plain flange or serrated flange configurations. Hex flange bolts are thick-profile hex head bolts available in fully threaded or partially threaded configurations
Attributes
● Self-locking
● Provides substantial vibration resistance.
Applications
Flange hex bolts are designed for a wide range of applications, typically mechanical. Because no washer is required, flange bolts are much faster and more efficient to fasten than many other screws.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | Adhesive |
| Thread Size (Diameter × Pitch) | M6x1 mm |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size | M6 mm (0 in) |
| Height | 12.7 mm (0.5 in) |
| Width | 12.7 mm |
| Length | 25.4 mm (1 in) |
| Material | Sealants / Adhesives Adhesive |
| Thread Size (in – TPI) | M6-1 in |
| Thread | Rough Milled |
| Bolt Length | 22 mm (0.87 in) |
| Bolt Type | Hex Flange Head |
| Coating | Zinc Plated |
| Handle Length | 3 mm (0.12 in) |
Compatible Equipment
- Generator Sets: 3516C, 3406C, G3516, 3406B, 3512B
- Engines: C175-16
- Dozers: D10N, D10R, D9R, D9L, D8L, D9N
- Excavators: 3512C, 3516B, 3508B
- Off-Highway Trucks: 798 AC, 797F
