Description

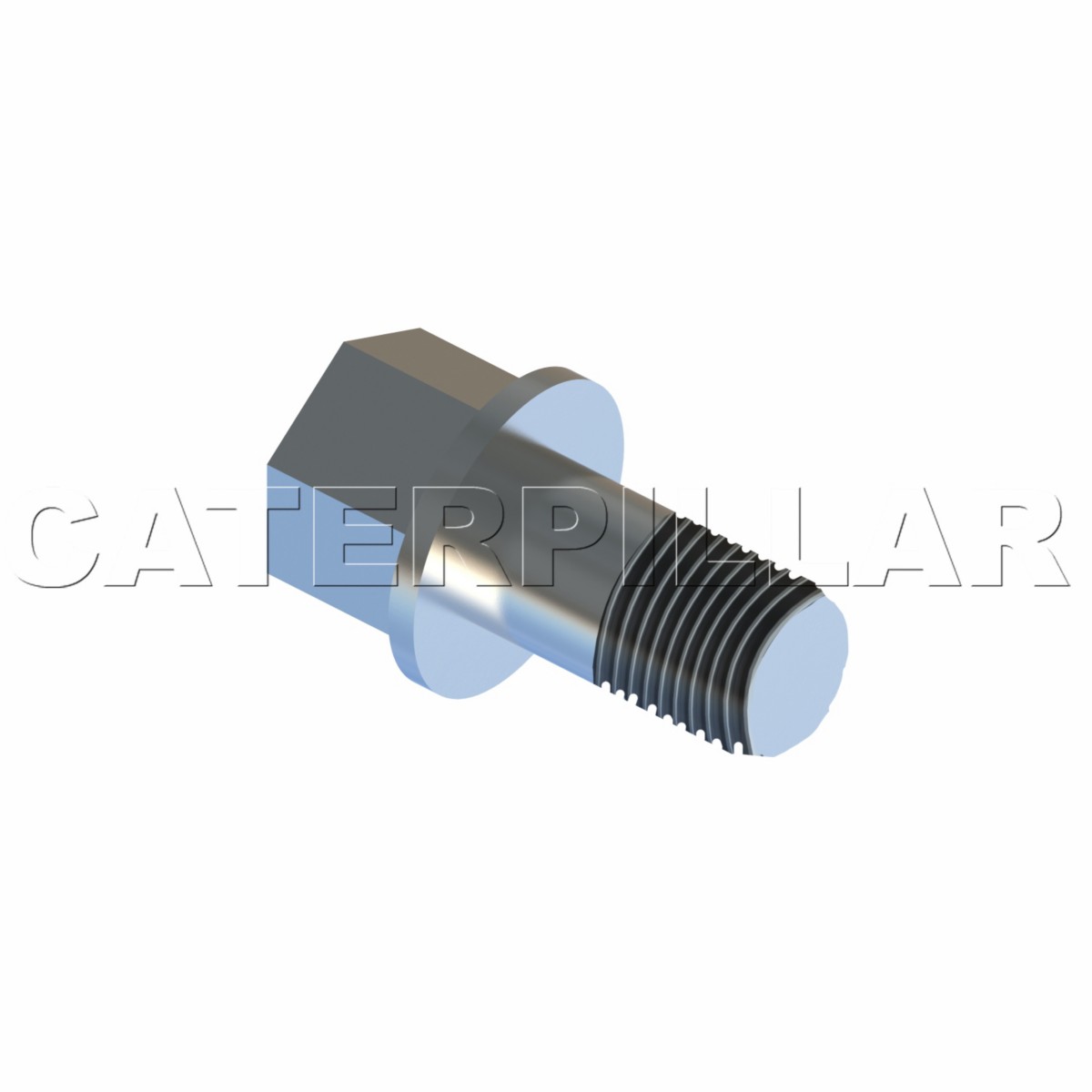

The cartridge bolt is an important component of the turbocharger, which allows more air into the combustion chamber so that a proportionally greater amount of fuel can be drawn in, improving engine efficiency and function.
Features
Cat® turbocharger components can extend service intervals, improve altitude and adjustment capability and increase uptime, lowering owning and operating costs.
Specifications
| Length | 15.2 mm (0.6 in) |
|---|---|
| Width | 7.6 mm |
| Height | 7.6 mm (0.3 in) |
| Locking Feature | Adhesive |
| Thread Direction | RH |
| Thread Size | M4 mm (0 in) |
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size (Diameter × Pitch) | M4x0.7 mm |
| Bolt Length | 10 mm (0.394 in) |
| Bolt Type | Hex Flange Head |
| Coating | Oil with Corrosion Inhibitor |
| Handle Length | 2.1 mm (0.083 in) |
Compatible Equipment
- Generator Sets: 3516C, 3406B, 3406C, 3512B, 3512E, C4.4, G3516
- Track Loaders: 982, 826H, 826K, 990K, 995, 994K, 992, 834H, 824C, 826G, 824G
- Cold Planers: PL87, PL83, PM620, PM622, PM-200
- Compactors: 824K, 825K, 834K, C-15
- Engines: C13, C27, C15, C32, C11, C18
- Excavators: 349D2, 390F L, 374D L, 3456, 349D2 L, 349D, 374, 3516B, 637K, 345C, 3508B, 6030, 6015B, 345D, 345C L, 6020B, 349D L, 345D L, 374F L, 385B, 390F, 3512C, 657G, 3516E, 365C, 621G, 6060, 395, 6015, 637G, 345B, 621H, 365C L, 621K, 6040
- Asphalt Pavers: AD45, AD63, AD30
- Skid Steer Loaders: 24
- Motor Graders: 18, 16, 14M, 16M, 14, 16H, 16M3
- Wheel Excavators: MD6250, MD6200, MD6310
- Dozers: D11N, D8, D8T, D9, D11T, D9R, D8N, D9N, D8R, D10T2, D10N, D10T, D9T, D8L, D6T, D11R, D10R, D11, D10, D9L
- Wheel Loaders: 836, 834, 980, 988K, 966H, 980G, 972H, 980L, 980H, RM500B, 990H, R1700G, R1600H, 988F, 988H, R1700K, R3000H, 988G, 986H, R2900G, R2900 XE
- Off-Highway Trucks: 777, 773, 785D, 730, 735, 773E, 777D, 770G, 771D, 789D, 740 GC, 773F, 740, 789, 740B, 775G, 725, 745, 745C, 773D, 785, 777E
