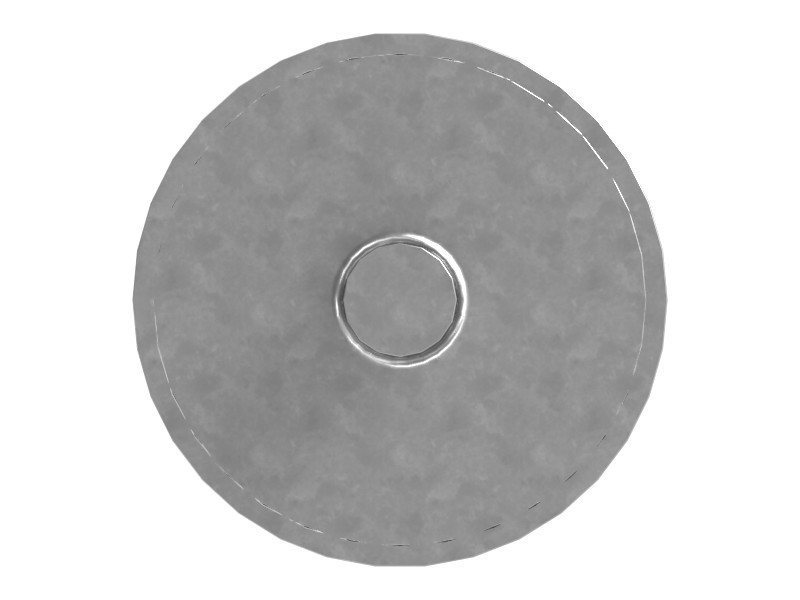

Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Sandwich mounts have integrated fasteners on both ends for easy installation (two studs, two threaded holes, or one stud and one threaded hole).
Features
Cat® mounting systems are designed to reduce the stress and strain on mounted components to increase their durability and performance life and to help ensure operator comfort. The entire system (mount design, material selection, placement, hardware, etc.) is optimized and validated to meet specific application requirements.
Sandwich mounts are a more economical option that performs well in light-duty applications. They deliver excellent radial isolation and can accommodate high radial displacement.
Applications
Sandwich mounts are widely used in light-duty applications such as electrical equipment, as well as in high-displacement applications such as compactor drums.
Specifications
| Overall Length | 44.4 mm |
|---|---|
| Hole Thread Size | 0.4 |
| Outside Diameter | 38.1 mm (1.5 in) |
| Hole Thread Pitch | 16 |
| Stud Thread Size | 0.4 |
| Mounting Type | Sandwich Type – One Stud, One Hole |
| Stud Thread Pitch | 16 |
| Rubber Length | 25.4 mm (1 in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516
- Engines: C32, C27, C175-16
- Excavators: 3516B, 3516E, 3512C, 330C L, 3508B
