Description

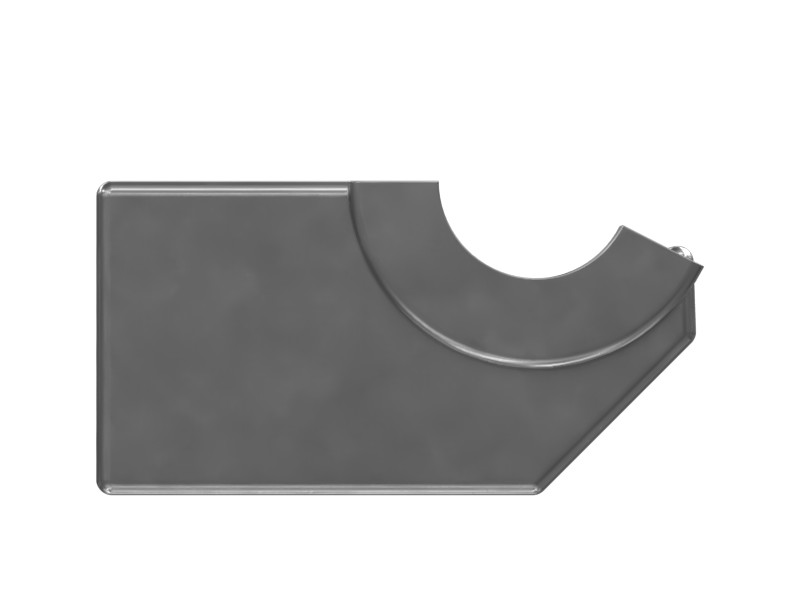

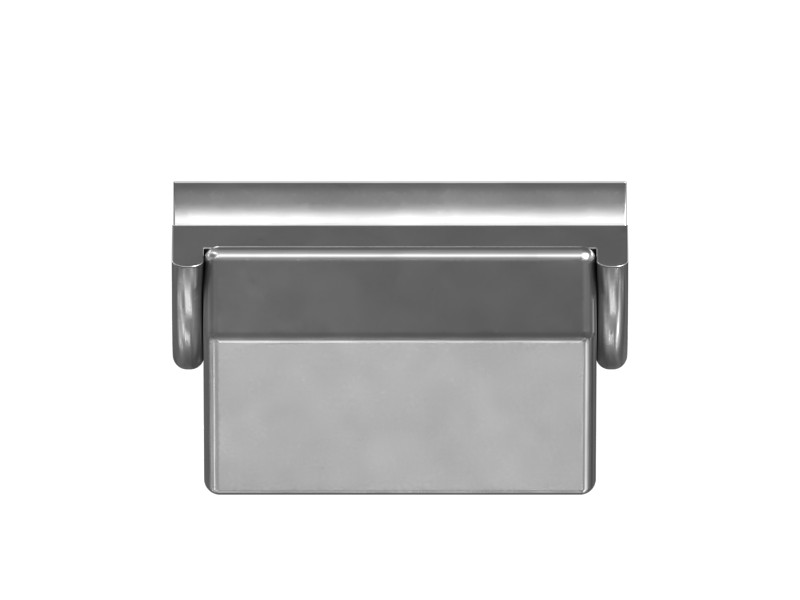

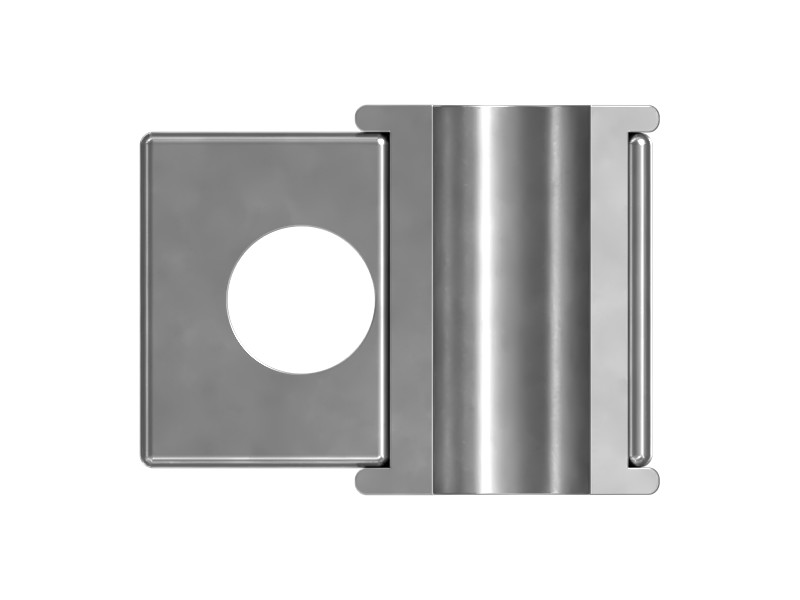

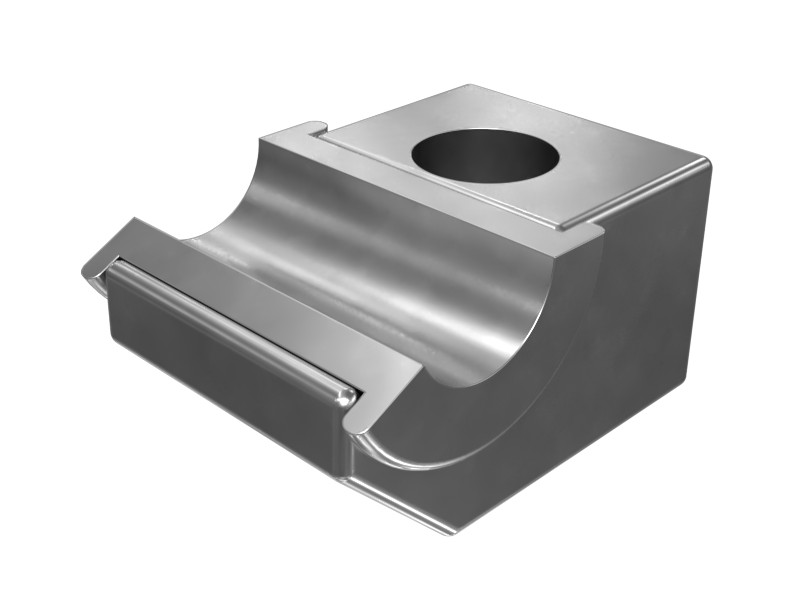

The half-loop clamp is a clamp used to secure a pipe or hose to a surface. It secures half the circumference of the pipe or tube, with a grommet on the curved base (matching the contour of the pipe or tube) and a semicircular channel that holds the pipe in place.
Features
- Requires less space for installation in confined areas.
- Includes grommets to help absorb vibration and shock.
Applications
The half-tube clamp provides a stable, secure grip on tubes and is widely used on Cat Motor Graders, OEM Applications, Engines (Piston), Generator Set Kits, Special Applications – No Pin, Generators (Power), Excavators, Pipelayers, Wheel Tractor-Scrapers, Scrapers, Trucks, Wheel Dozers, Vibratory Compactors, Wheel Loaders, Articulated Trucks, Kerosene Generator Set Kits, Motor Common Platform, Generator Set Rental, Kerosene Generator Set Kits, Track-Type Dozers, Drills, Coating Equipment, Locomotive Engines, and Powertrain.
Specifications
| Height | 20 mm (0.79 in) |
|---|---|
| Fits Bolt Size | M10 mm (3/8 in) |
| Length | 39 mm (1.54 in) |
| Width | 29 mm (1.14 in) |
| Inside Diameter | 12.4 mm (0.48 in) |
| Material | Fluoroelastomer (FKM) Rubber |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E
- Motor Graders: 3606
- Track Loaders: 995, 994K
- Wheel Excavators: MD6200
- Engines: C32, C27, C18, C175-16
- Dozers: D9R, D8L, D9L, D9N, D10N, D11N, D10R, D11R
- Excavators: 3508B, 3512C, 3516B, 637G, 3516E, 637E
- Wheel Loaders: 992K
- Off-Highway Trucks: 789, 785, 785D, 773, 773E, 793D, 793, 773D, 771D, 797F, 773F, 777D, 796 AC, 777, 793F, 798 AC, 794 AC
- Asphalt Pavers: AD45
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 3606, 637E, 637G, 771D, 773, 773D, 773E, 773F, 777, 777D, 785, 785D, 789, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 992K, 994K, 995, AD45, C175-16, C18, C27, C32, D10N, D10R, D11N, D11R, D8L, D9L, D9N, D9R, MD6200 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
