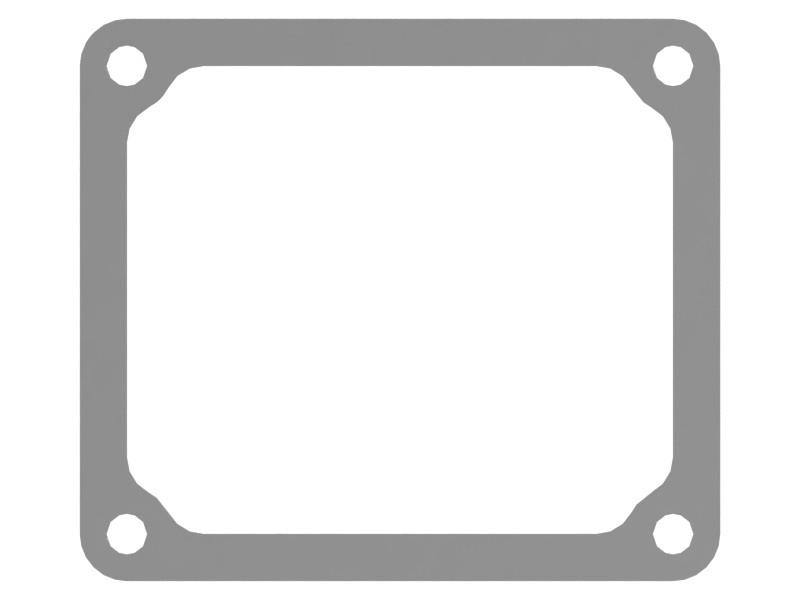

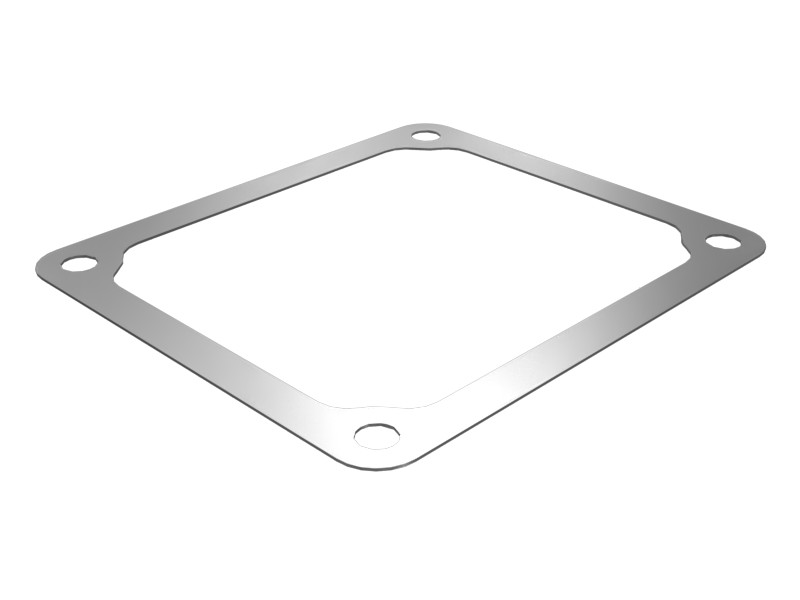

4P-0340 0.8 mm Thick Engine Housing Gasket
Cat® Shim
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. 4P-0340 is a square-rectangular gasket designed with the right combination of material and form to deliver the desired performance for your application.
Features
- Type: Square-Rectangular
- Style: Flat
- Low-compressibility sheet material
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Type | Square-Rectangular |
|---|---|
| Style | Flat Plate |
| Material | Rubber Gasket Gasket |
| Length | 164 mm (6.46 in) |
| Width | 144 mm (5.67 in) |

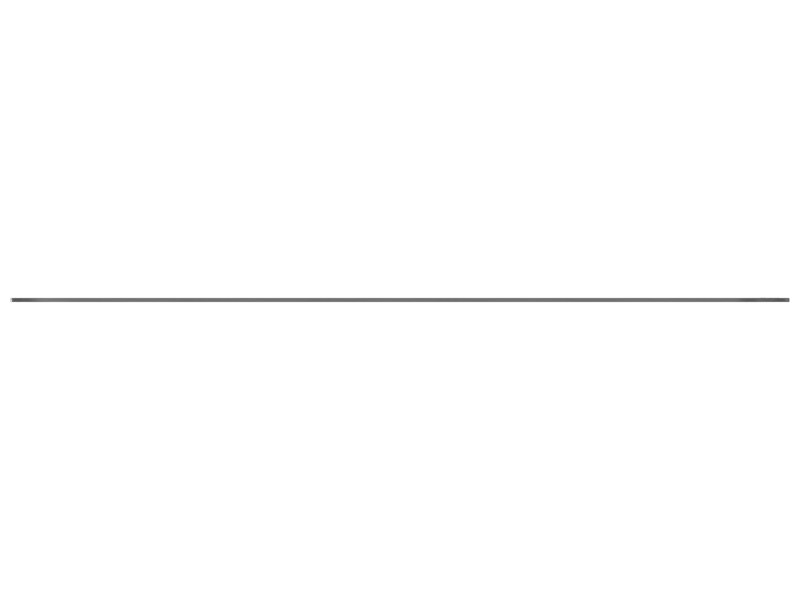

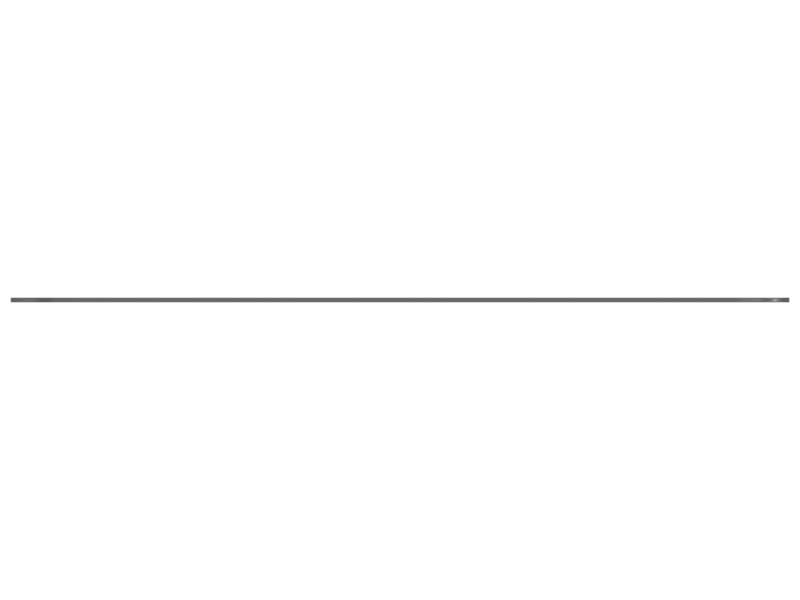

| Thickness | 0.8 mm (0.03 in) |
| Hole Size | 10.5 (4X) mm (0.41 (4X) in) |
Additional information
| Part Source | Genuine OEM |
|---|
