Description

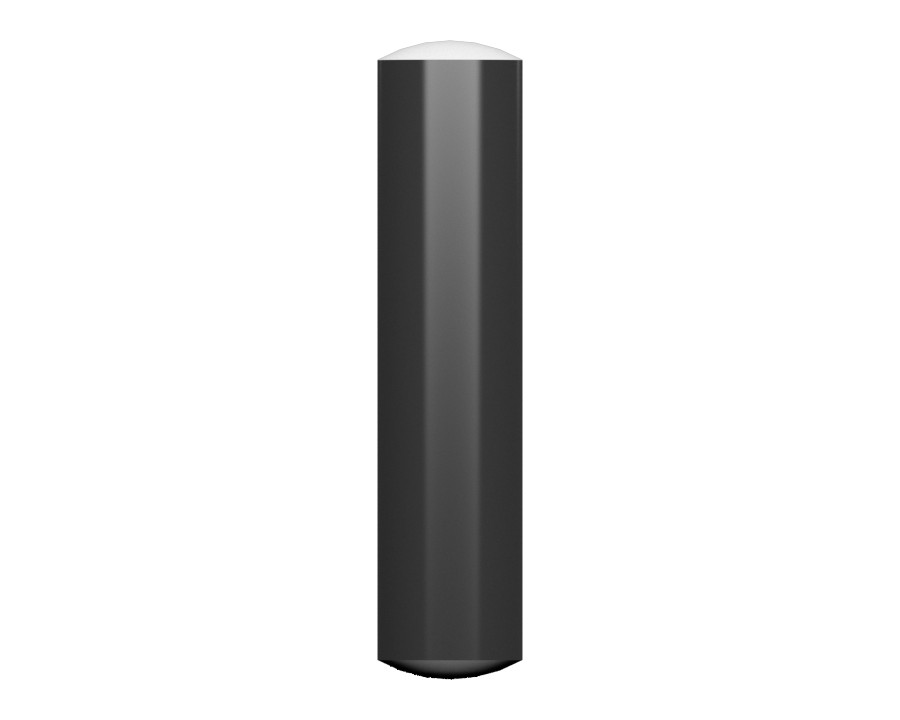

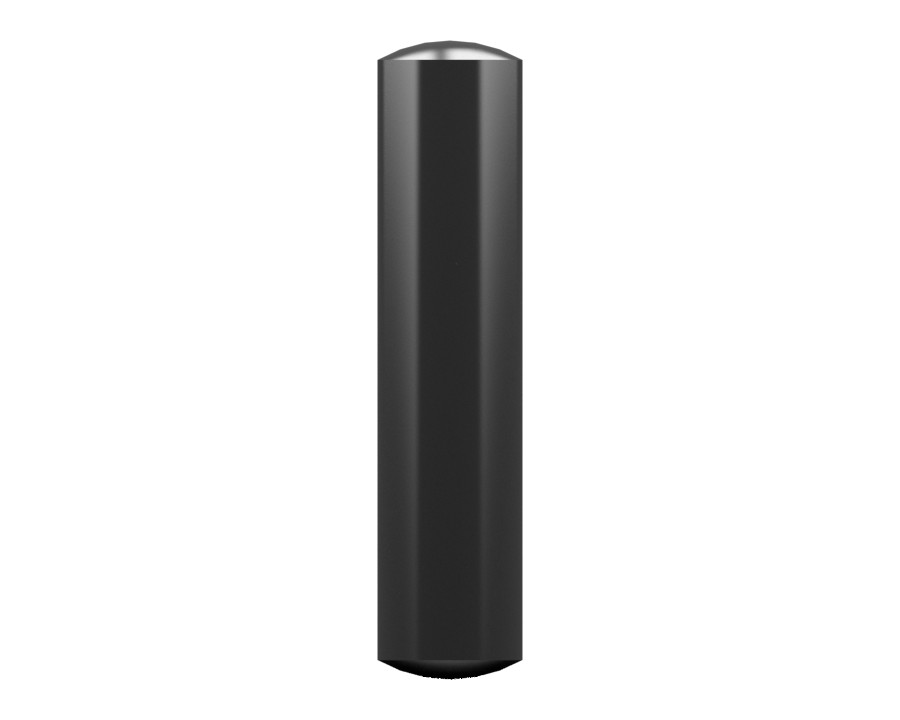

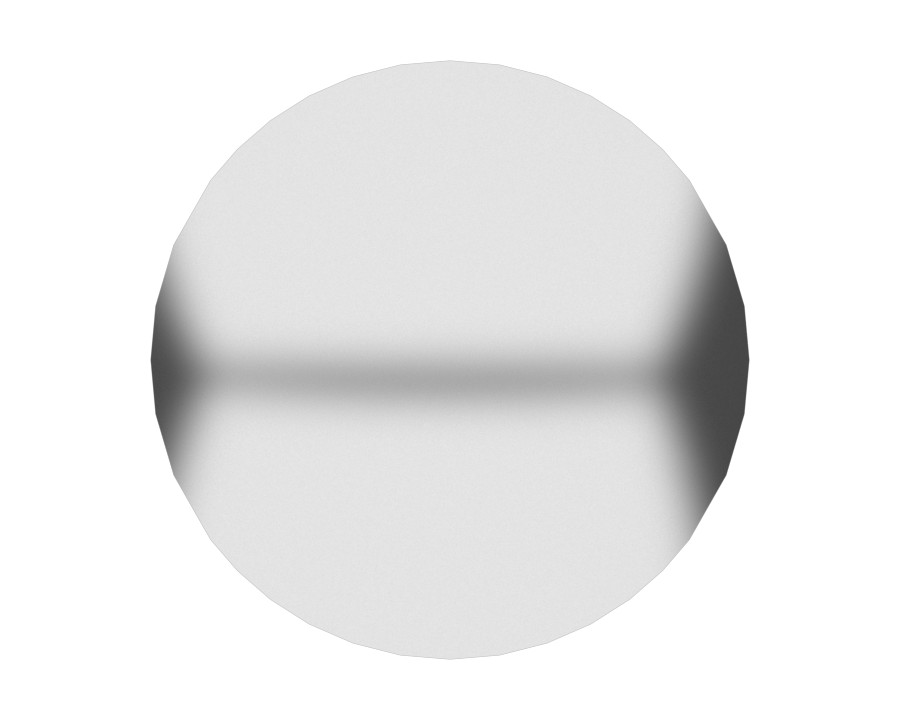

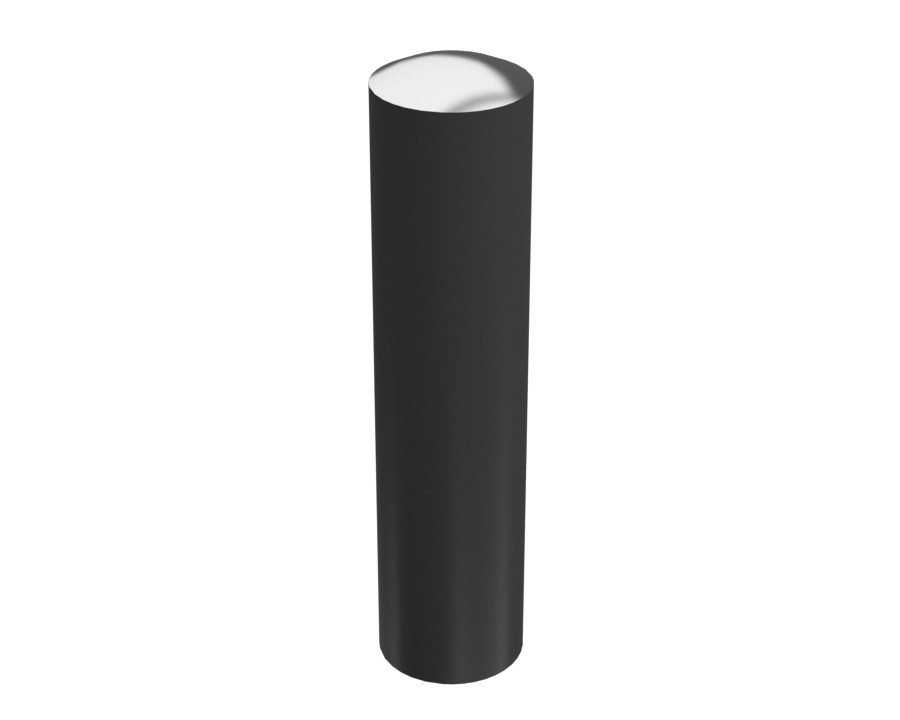

A dowel pin is a solid, headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Parts meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Material | Low Alloy Steel |
|---|---|
| Remarks | Overall Length: 13.97, Pin Diameter: 3.175, End Type 1: Crown, End Type 2: Crown |
| Pin Length | 13.97 mm (0.55 in) |
| Material Description | Steel – Pins and Dowels |
| Pin Outside Diameter | 3.17 mm (0.125 in) |
| Pin Type | Solid |
Compatible Equipment
- Generator Sets: 3406C, 3406B, C7.1, 3512B
- Motor Graders: 140G, 140H, 120, 12H
- Track Loaders: 953, 824G, 824C, 963, 826G, 816F
- Compactors: 815, 814, 816
- Engines: C15, C13
- Dozers: D7R II, D5H, D7H, D4E, D6R, D8N, D7R, D8R, D7G, D6G2 LGP, D6G2 XL, D7G2, D6G
- Excavators: 330 L, 330B, 637E, 350 L, 345B, 637G
- Wheel Loaders: R1300G, 972G, 950, 966F, 910, 980G
- Off-Highway Trucks: 735
Additional information
| Machine Model | 120, 12H, 140G, 140H, 330 L, 330B, 3406B, 3406C, 345B, 350 L, 3512B, 637E, 637G, 735, 814, 815, 816, 816F, 824C, 824G, 826G, 910, 950, 953, 963, 966F, 972G, 980G, C13, C15, C7.1, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6R, D7G, D7G2, D7H, D7R, D7R II, D8N, D8R, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
