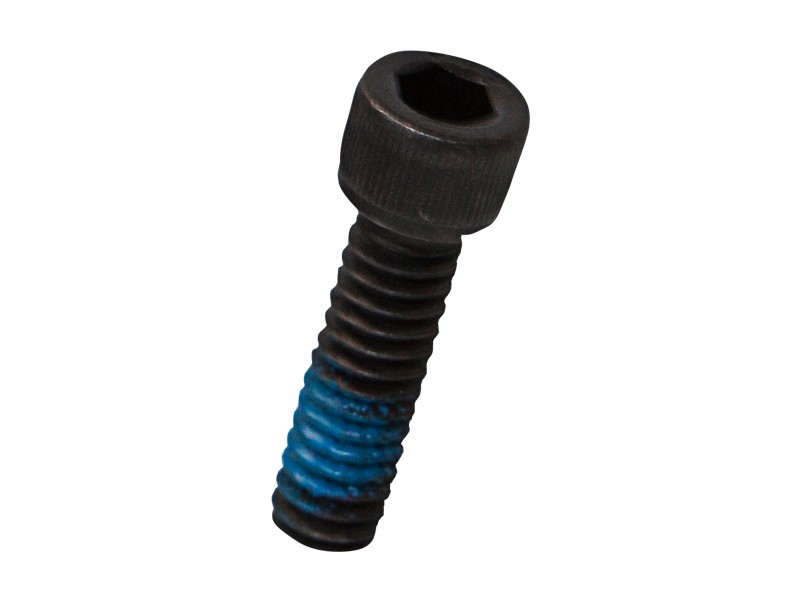

4N-2955 1/4-20 Thread Socket Head Bolt
Cat® 1/4-20 Thread 22.23 mm Long Socket Head Self-Locking Bolt
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts can be installed when there is not enough clearance to use hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Handle Length | 2.38125 mm (0.094 in) |
|---|---|
| Thread Size | 0.250 mm (0.01 in) |
| Bolt Type | Socket Head |
| Thread Direction | RH |
| Locking Feature | Nylon Patch |
| Bolt Length | 22.23 mm (0.875 in) |
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
| Coating | None |
| Class or Grade | ASTM A574 (180 ksi) |
Compatible Equipment
- Motor Graders: 140G, 120
- Compactors: 814, 815, 816
- Dozers: D7G, D4E
- Wheel Loaders: 950, 988F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
