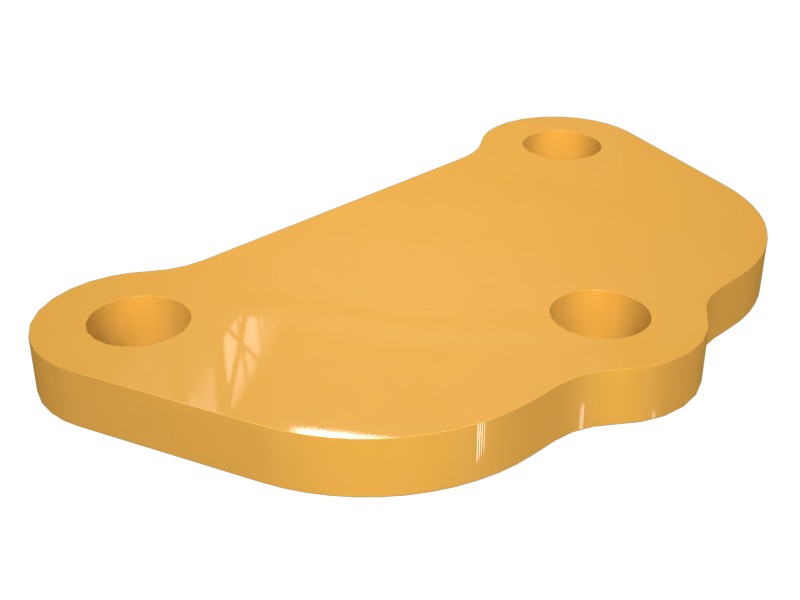

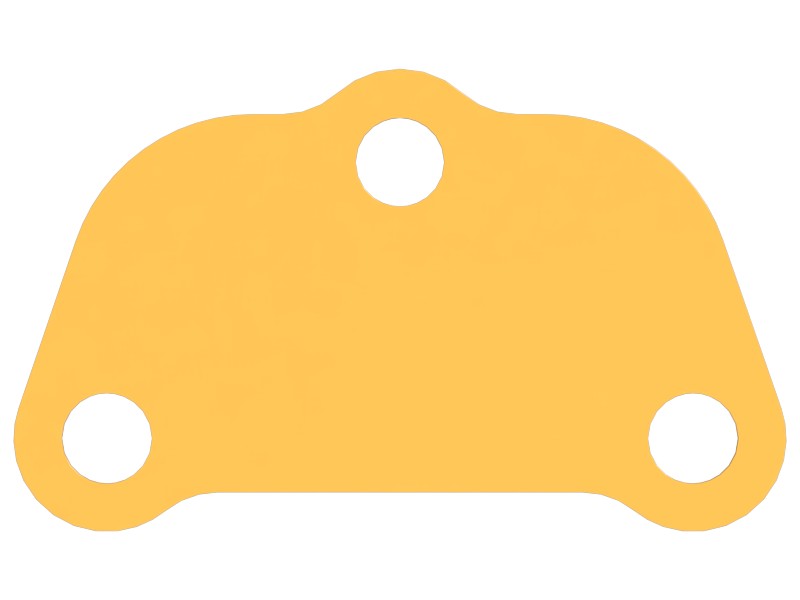

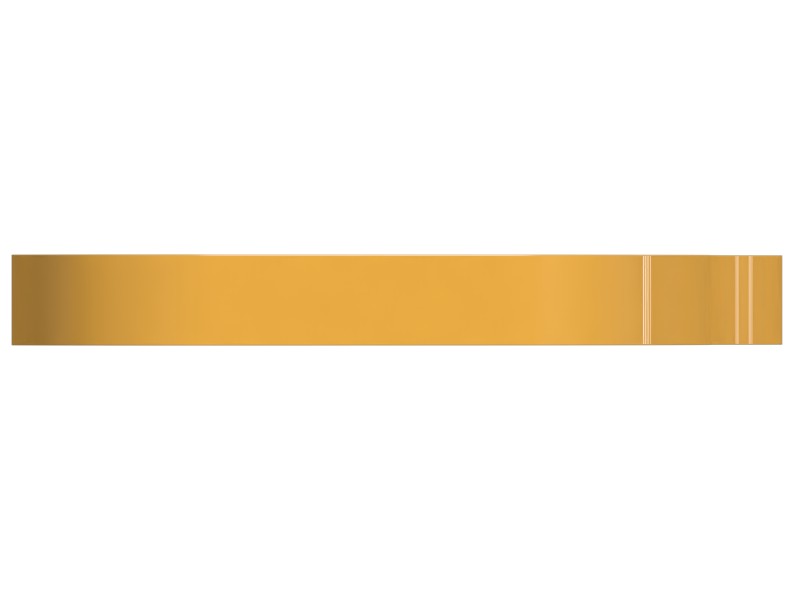

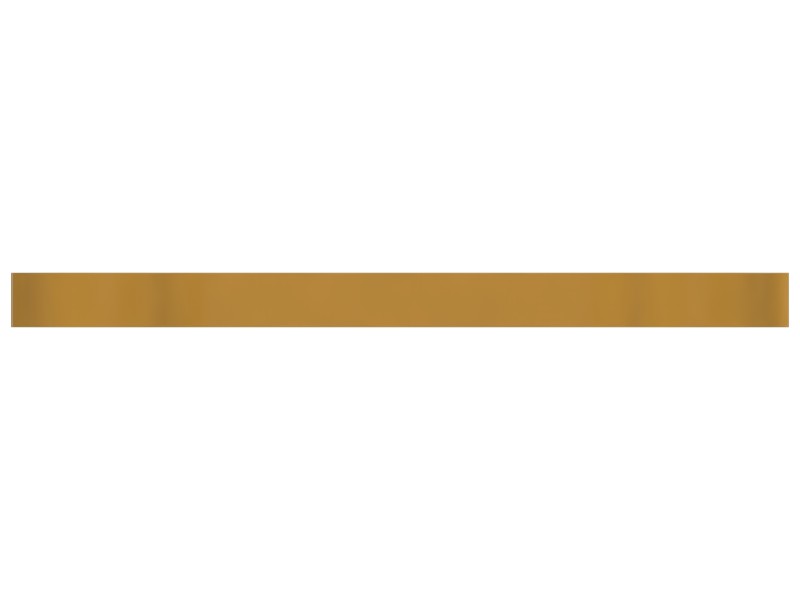

4N-0861 6.35 mm Thick Engine Oil Filter Line Cover
Cat® Filter and Cooler Bypass Cover, Steel
Description
The 4N-0861 steel cover is used to retain the valve plunger and spring in the filter and cooler bypass valve body.
The sealing cap retains fluids and lubricants and keeps dust, moisture, and contaminants out of critical machine systems.
Features
- Steel cover
- Used with M10 or 3/8 inch fasteners, 3 locations
- Dimensions: 91 X 55 X 6 mm (3.6 X 2.2 X 0.3 in)
Applications
Use this cover where applicable. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 91 mm (3.6 in) |
|---|---|
| Width | 55 mm (2.2 in) |
| Thickness | 6 mm (0.3 in) |
| Hole Size | 11 (3X) mm (0.4 (3X) in) |
Compatible Equipment
- Track Loaders: 993, 992, 990K
- Wheel Excavators: MD6310, MD6250
- Engines: C32, C27, C7
- Dozers: D10, D10T, D8L, D9R, D9N, D9L, D10T2, D6T, D10R, D11R, D10N, D11, D11T
- Excavators: 6015, 6030, 6040, 6020B, 6015B, 637E, 637G
- Wheel Loaders: 992K
- Off-Highway Trucks: 777, 773, 777E, 773E, 773D, 775G, 773F, 777D
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 6015, 6015B, 6020B, 6030, 6040, 637E, 637G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 990K, 992, 992K, 993, AD63, C27, C32, C7, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D6T, D8L, D9L, D9N, D9R, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
