Description

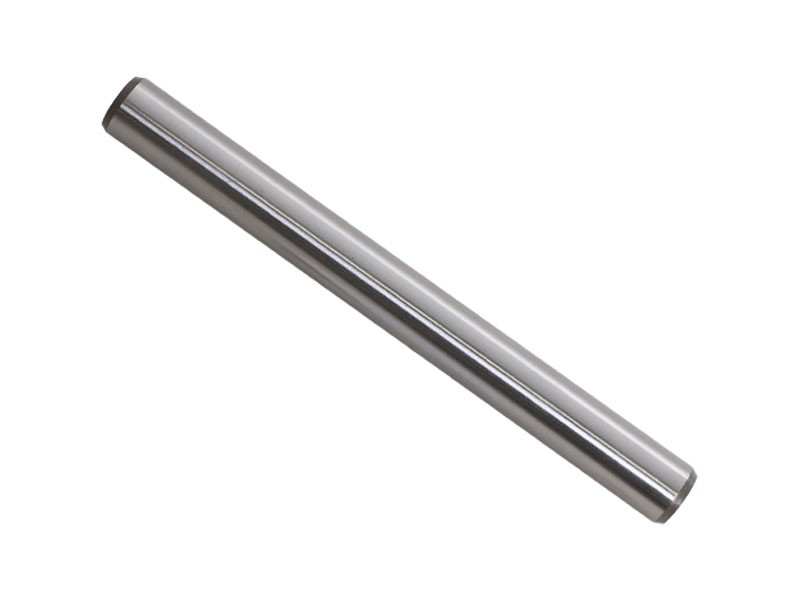

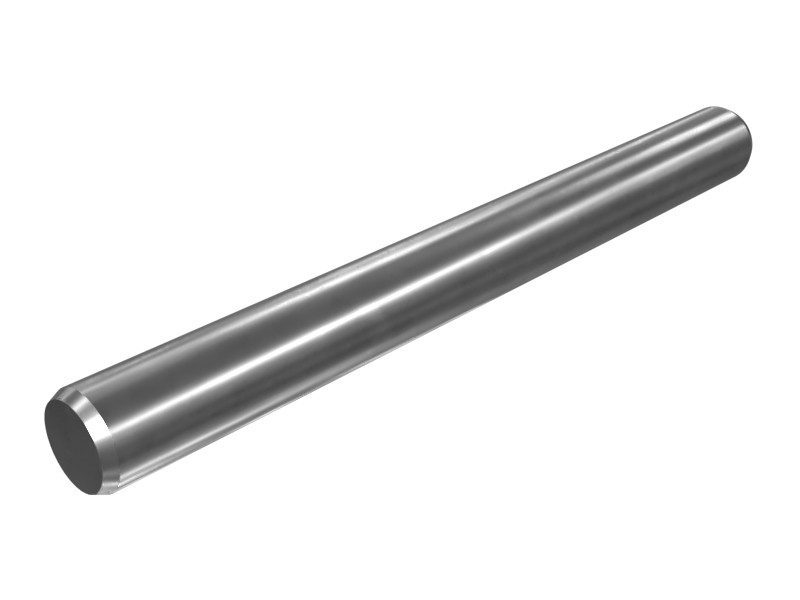

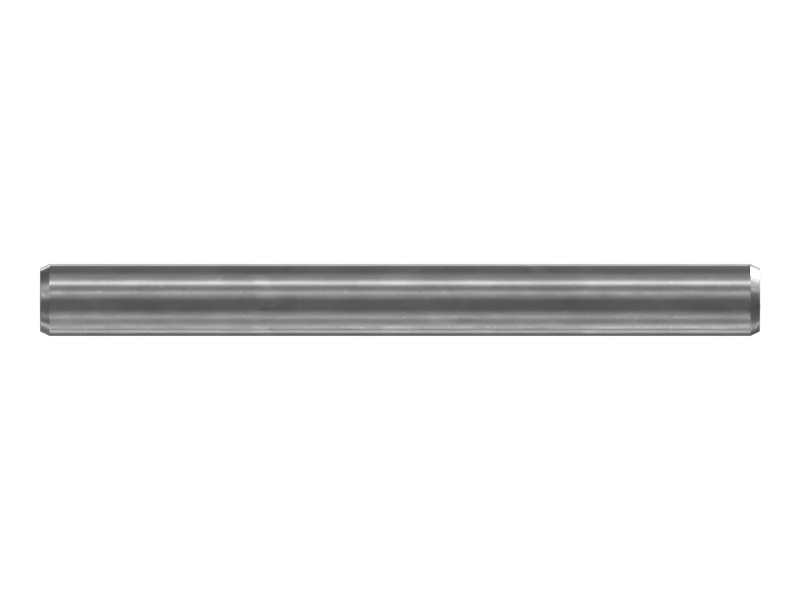

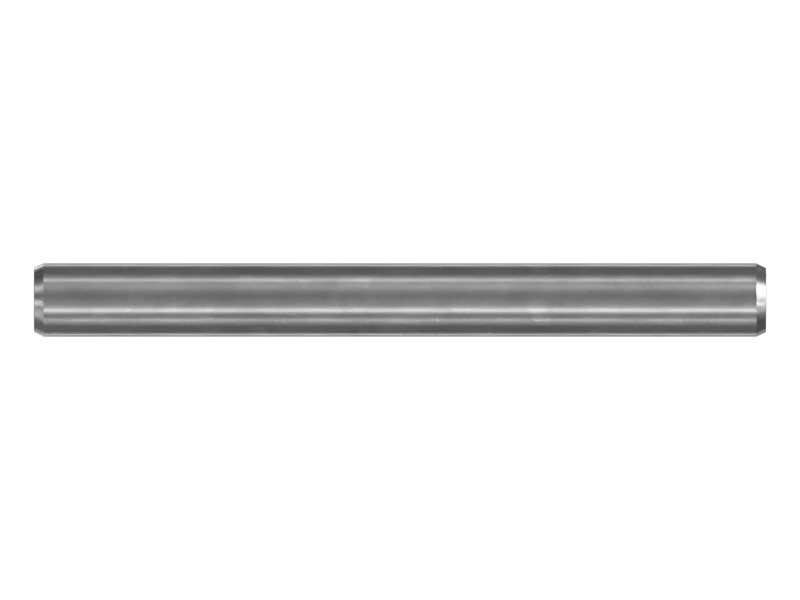

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Features
- Hardened steel pin
- Pin Diameter: 12.6365 mm (0.4975 in)
- Length: 127 mm (5.000 in)
- Chamfered end
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Type | Solid |
|---|---|
| Material | — |
| Pin Outside Diameter | 12.64 mm (0.498 in) |
| Pin Length | 127 mm (5 in) |
| Material Description | Steel |
| Pin Diameter | 12.6365 mm (0.4975 in) |
| Length | 127 mm (5.000 in) |
Compatible Equipment
- Motor Graders: 16, 16H
- Track Loaders: 992
- Dozers: D7G, D6G2 LGP, D4E, D6G2 XL, D6G, D7G2
- Excavators: 621K, 621H, 621G
- Wheel Loaders: 834
- Off-Highway Trucks: 773
Additional information
| Machine Model | 16, 16H, 621G, 621H, 621K, 773, 834, 992, D4E, D6G, D6G2 LGP, D6G2 XL, D7G, D7G2 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
