Description

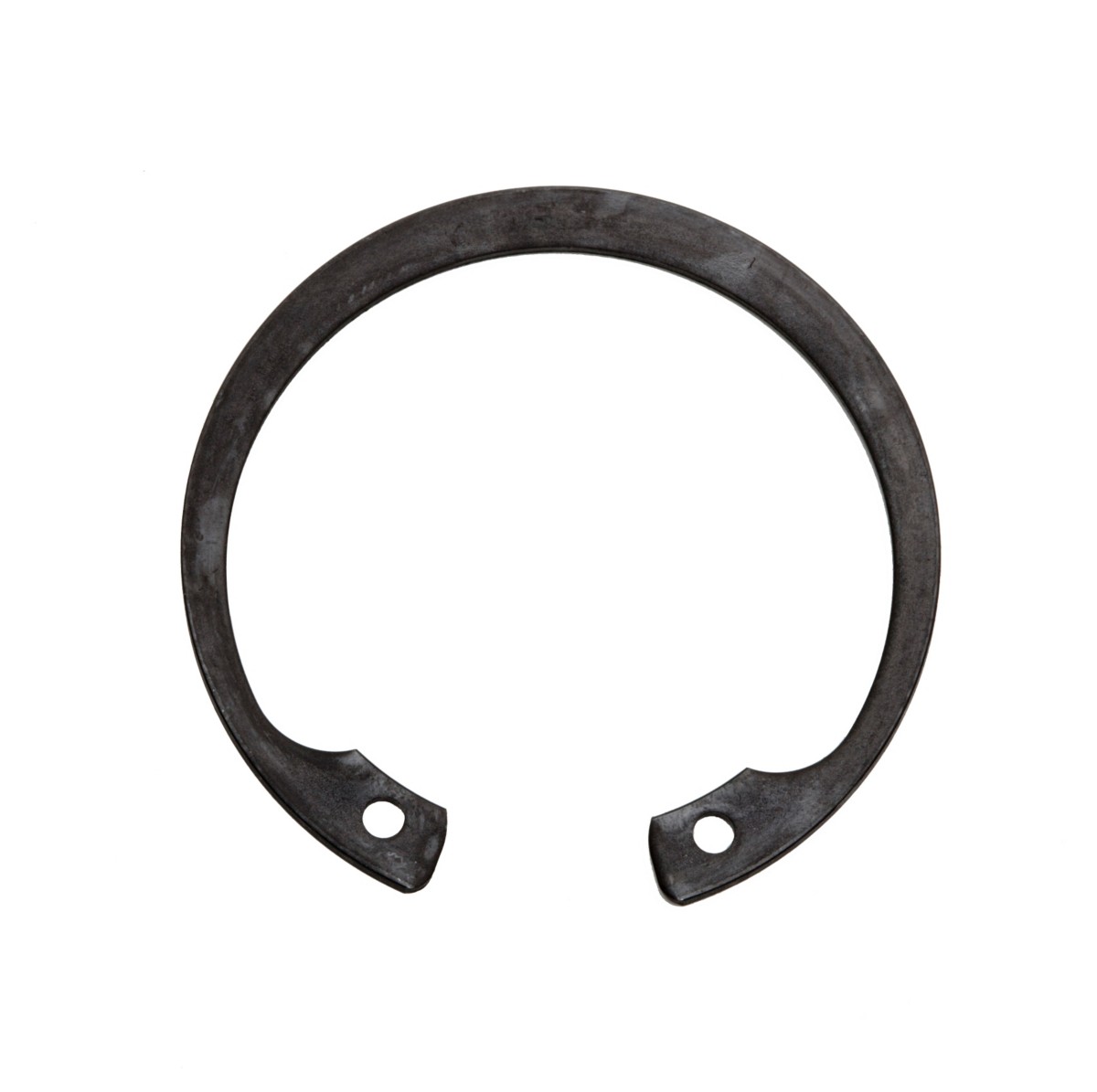

Cat snap rings are made of tempered carbon steel
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel Retaining Ring |
| Thickness | 1.07 mm |
| Thickness – B | 0.042 in |
| Shape | Tempered Basic |
| Hole Diameter | 0.90 in |
| Free Diameter – A | 1.00 in |
| Snap Ring Type | Internal |
| Remarks | Free Diameter: 25.4, Radial Wall: 2.21, Lug Height: 3.94, Groove Width: 1.17, Groove Diameter: 24.36, Housing Diameter: 22.86 |
| Cross Hole | Yes |
Compatible Equipment
- Compactors: 816, 815
- Excavators: 657G
- Wheel Loaders: 834
- Off-Highway Trucks: 771D, 785, 789, 777D, 793, 773D
- Asphalt Pavers: AD45
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
