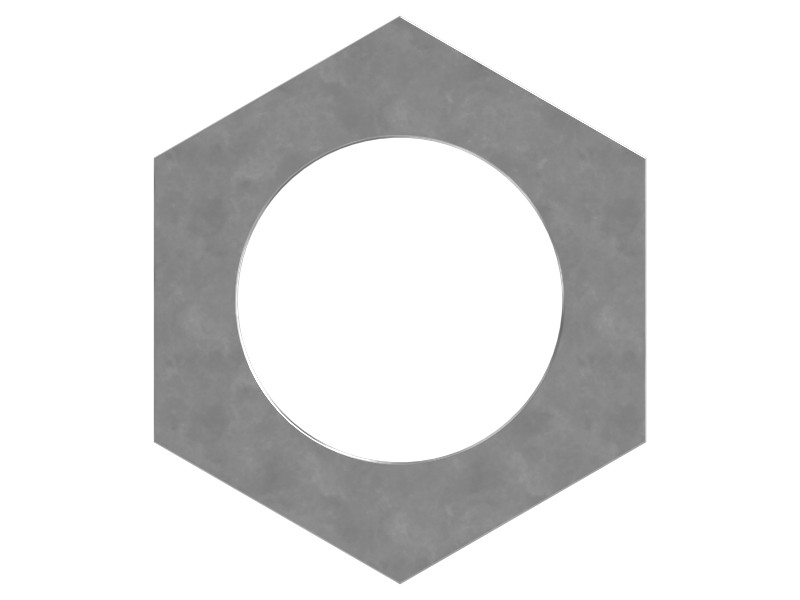

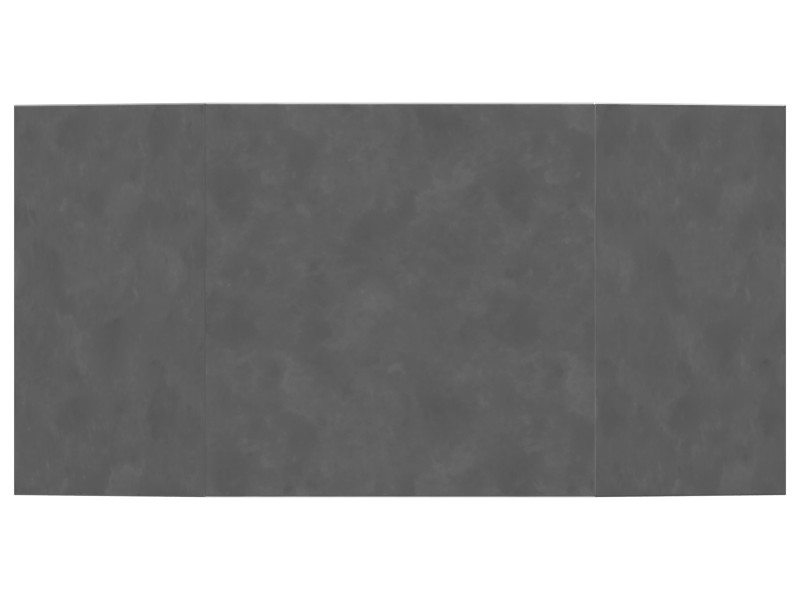

4K-0367 0.625″ Hex Nut
Cat® 0.625" Steel Hex Full Height Nut
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 5/8×11 mm |
| Thread Direction | RH |
| Nut Width – 3 | 15/16 in |
| Drive Chain | 23.8125 mm (1 in) |
| Hole Thread Pitch | 11 |
| Thread Size | 0.625 mm (0.025 in) |
| Thickness | 13.890625 mm (0.559 in) |
| Height | 0.56 in |
| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 5/8-11 in |
| Material | Steel |
| Material Description | Hardness More Than 20% Higher Than SAE J995 Grade 8 |
| Coating | Zinc Phosphate and Oil |
Additional information
| Part Source | Genuine OEM |
|---|
