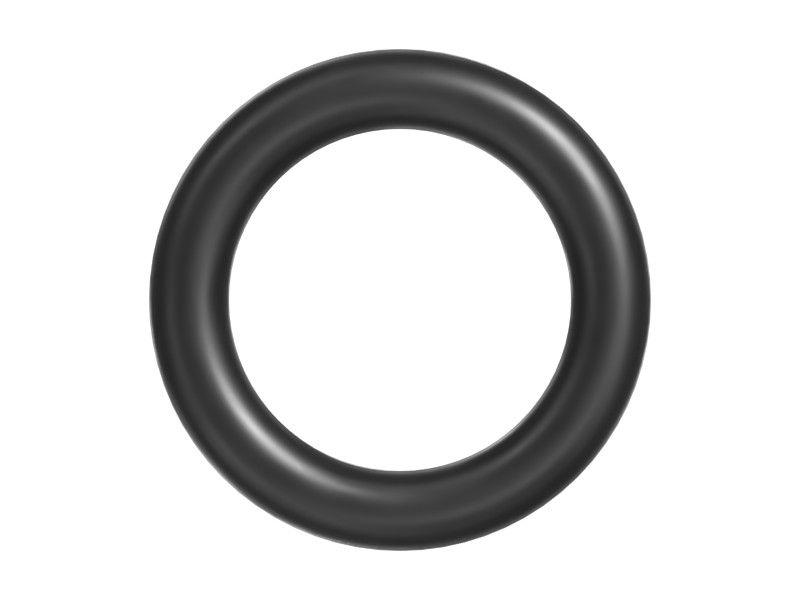

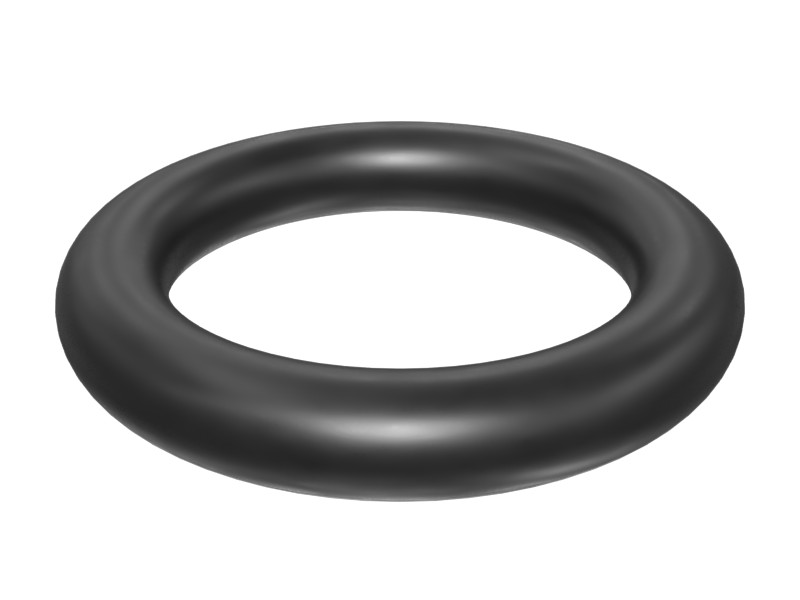

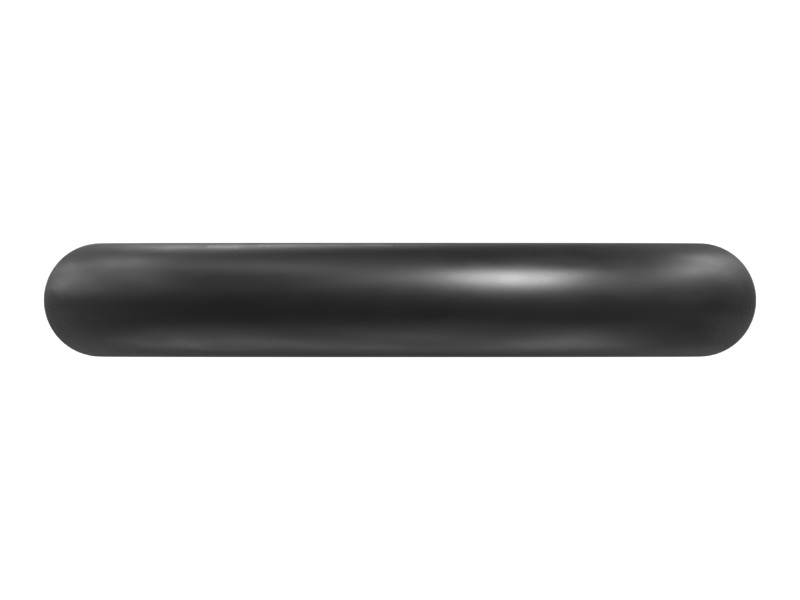

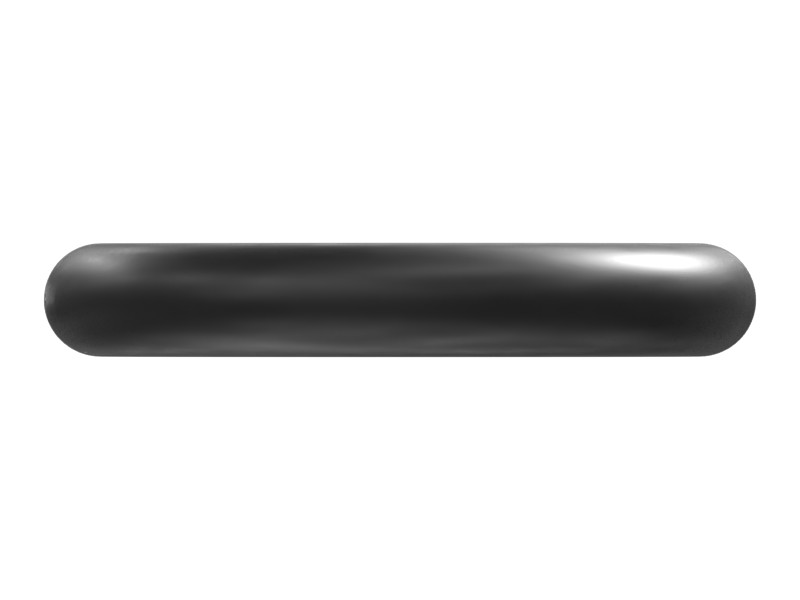

4J-5477 1.78 x 7.67 mm 90A NBR O-Ring
Cat® O-ring face seal ensures a leak-free connection between hydraulic hoses and adapters.
Description
OD-controlled O-rings are used in sealing applications where the seal outside diameter is the critical dimension.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat® seals protect your investment.
Applications
OD-controlled O-rings are used in many static and dynamic joints in Cat machines and engines, including ORFS (O-Ring Face Seal) and STOR (Straight Thread O-Ring) couplings and adapters.
Specifications
| O-Ring Type | O-Ring Face Seal (ORFS) |
|---|---|
| Fitting Size | 9/16-18 in |
| Material Hardness | 90A |
| Dash Size | 011 in |
| Polymer | NBR (Nitrile butadiene) |
| Cross-Section Diameter | 1.78 mm (0.07 in) |
| Inside Diameter | 7.67 mm (0.302 in) |
| Material | Polytetrafluoroethylene (PTFE) Plastic |
Compatible Equipment
- Generator Sets: G3516C, 3516C, 3512B, G3516, C9, 3406B, C7.1, C4.4, 3406C
- Track Loaders: 972, 816F, 826G, 953D, 824G, 824C, 963, 834H, 963D, 992, 826H, 995, 953, 993
- Cold Planers: PL61, PL83, PL87, SE50 VT, PL72, TH360B, TH55-E70, PM622, PM620
- Compactors: CP12 GC, CP11 GC, CS-56, 834K, CB-335D, CB2.5 GC, CB2.7 GC, CS7, CC2.7 GC
- Engines: C27, C32, C7, C175-16, C18
- Excavators: 320D, 336D, 329D, 303C CR, 306E2, 305, 308D, 303, 3126, 336D2, 305C CR, 374D L, 301.7D, 308E, 390F L, 320D2, 306E, 349D, 330, 330D L, 305E2 CR, 333, 305 CR, 320C, 314D LCR, 324D L, 328D LCR, 314D CR, 311C, 330 L, 330C L, 312D, 313D2, 312C, 336D L, 329D L, 323D2 L, 325D, 312D2 GC, 320D FM, 325D L, 657G, 637E, 3512C, 621G, 345D, 416E, 350 L, 621K, M325D L MH, 320D L, 311D LRR, 324D, 336E, 325C, 320C L, 318D2 L, 315D L, 312D L, 637G, 345C, 3516B, 365C, 345C L, 385C L, 345D L, 349D L, 352, 315 GC, 350, 326, 315, 355, 312C L, 312D2 L, 330B, 320E, 323D L, 320B, 349E L, 428F, 320D RR, 336D2 L, 330C, 330D, 325B L, 315C, 314C, 312D2, 3508B, 345B, 325B, 336E L, 349E, 621H, 329E L, 323D, 320D2 L, 320D GC, 326D L, 313D, 385C, 329E, 365C L, 318D L, 340D2 L, 320D2 GC, 312E, 336, 325, 340, 320, 330 GC, 120 GC, 323, 3516E
- Asphalt Pavers: AD30
- Skid Steer Loaders: 242D3, 236D, 262C, 226B, 236B3, 279C, 226B3, 216B3, 3126B, 246C, 262D, 262D3, 246D3, 246D, 236, 232D, 313D2 LGP, 249D3, 239D3, 272D3 XE, 272D3
- Motor Graders: 140K, 14M, 120H, 12H, 16H, 140H, 16M, 140G, 160K, 14
- Wheel Excavators: M313D, M315, IT14G, M315D, M322D, M315GC, MD6310
- Dozers: D5N, D6T, D8N, D6R II, D7H, D8T, D6R, D9R, D6N, D5K LGP, D7R II, D6R III, D9T, D7E, D3K2 LGP, D11T, D10T2, D6T LGP, D9N, D5G, D11N, D11R, D5H, D8, D7, D10T, D8L, D8R, D5M, D7R, D5K XL, D3G, D6M, D10R, D4G, D9L, D10N, D7G, D5K2 XL
- Mini Excavators: 305.5, 307D, 305.5E, 308, 303.5C, 303.5E, 306, 303.5, 303.5D
- Wheel Loaders: 950H, 966H, 972H, 980G, 980, 928G, 980H, 924HZ, 988K, 924GZ, 950G, 990H, R1300G, 928HZ, 950, 972G, 962G, 966F, 988H, 966, 836, 986H, 988G, 992C, R2900G, R3000H, 924K, 988F, 992D, R1700G, 966K, 938K
- Off-Highway Trucks: 793, 775G, 725, 735, 770G, 730, 797F, 772G, 789D, 777, 789, 785D, 740, 773F, 777D, 796 AC, 771D, 793D
