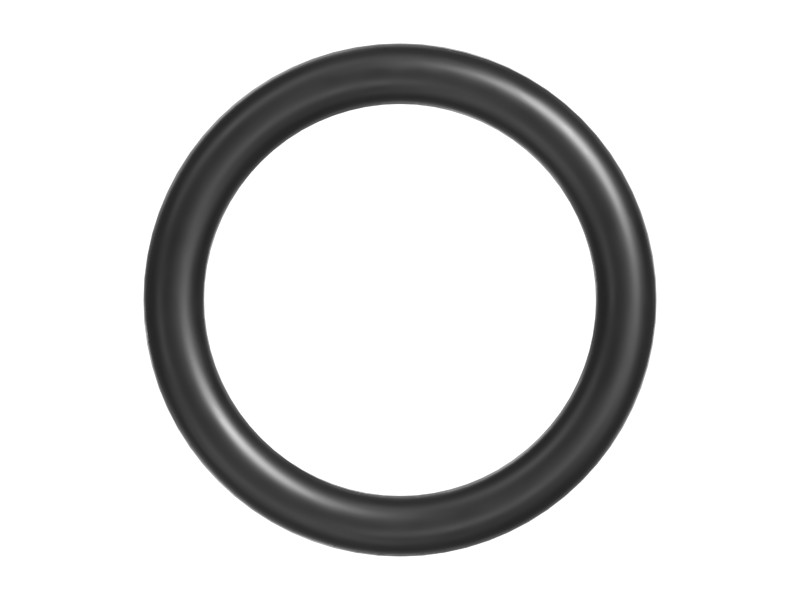

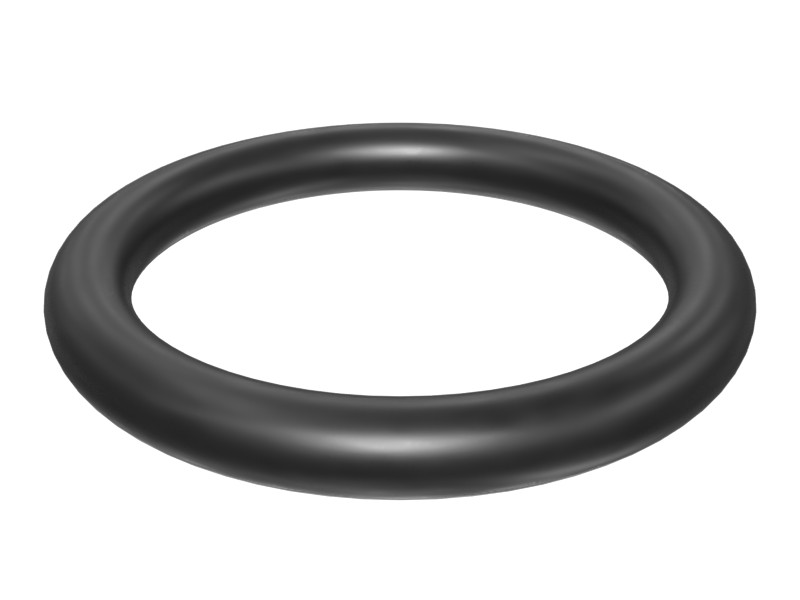

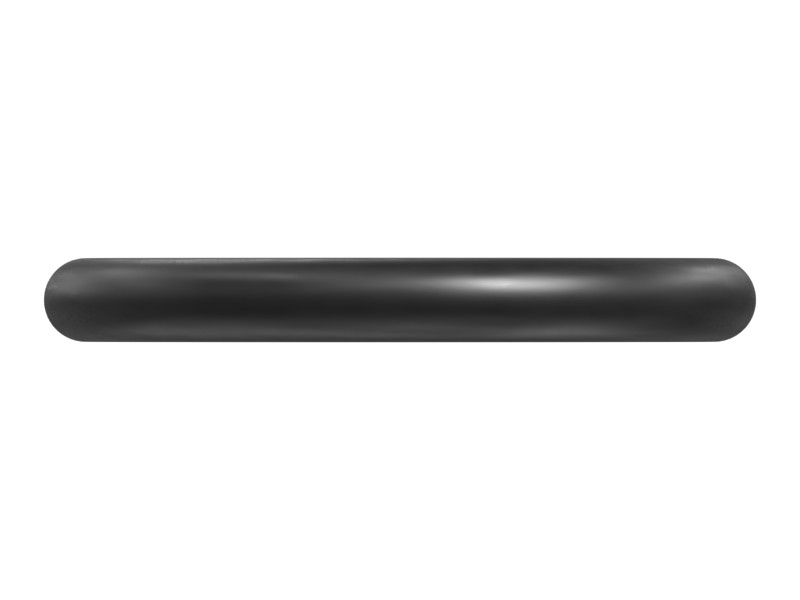

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material Hardness | 90A |
|---|---|
| Polymer | NBR (Nitrile butadiene) |
| Dash Size | 0 in |
| Compatible | Anti-Wear Agents; Alpha-Olefin-Based Synthetic Lubricants; Glycols; Hydrocarbon Fuels; Petroleum-Based Lubricants; Silicone Oils and Greases; Water, Water-Based Engine Coolants; ORFS, STORS Seals |
| Cross-Section Diameter | 2.62 mm (0.103 in) |
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
| Inside Diameter | 17.12 mm (0.674 in) |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 953, 963, 963D, 973K, 992
- Compactors: CS-533C, 834K, CS-563E, CS54B, CS-583D, CS-56, CS11, CP54B, CS-54, CS-533E, CS64B, CS-54B
- Engines: C15
- Excavators: 305, 307.5, 374F, 374D L, 390D L, 374, 365B L, 329E L, 336E L, 320B, 336F L, 336F L XE, 325B L, 336E, 336, 336F, 320E, 330 L, 336D2 XE, 336E LH, 637K, 657G, 340, 352, 349, 345 GC, 329E, 637G, 637E, 385B, 374F L, 621H, 345C L, 385C L, 385C, 350 L, 345B, 325B, 336F LN, 336 GC, 365B, 365C L, 390D, 385C FS, 365C, 345C, 305 CR, 330B, M325D L MH, 336E H, 336E LN, 335F LCR
- Motor Graders: 16M, 140G, 14M, 14, 18, 16, 16M3
- Wheel Excavators: M322D, M320, M315, M320D2, M315D2, M317D2, M315D, M313D, M315GC
- Dozers: D6R III, D8N, D6T, D7R, D6R, D8T, D7H, D9T, D7R II, D6T LGP, D9R, D8, D10N, D10R, D8R, D6R II, D7E, D7G, D10T2, D9L, D9N, D8L, D6R XL, D6R LGP
- Mini Excavators: 306.5, 305.5 GC, 308, 308.5, 306, 307B, 305.5E2, 307
- Wheel Loaders: 950, 950H, 988K, 972H, 834, 980, 836, 966H, M314
