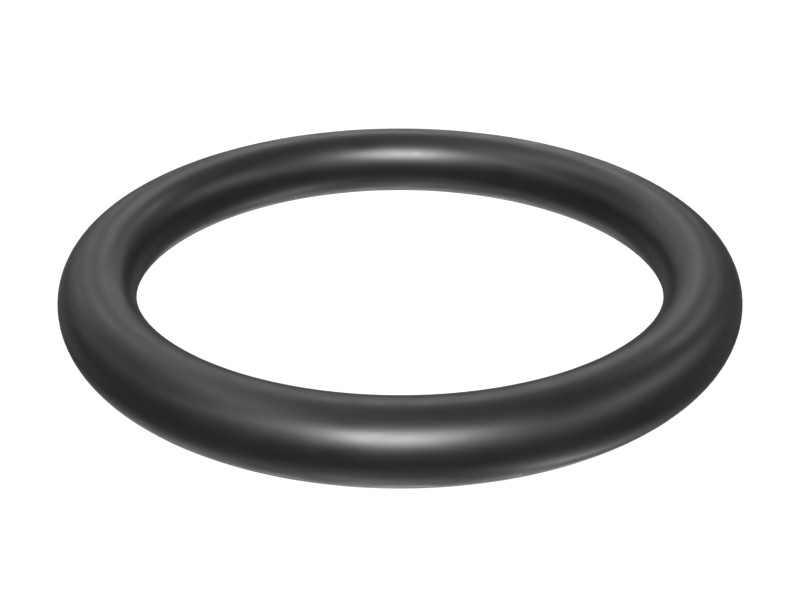

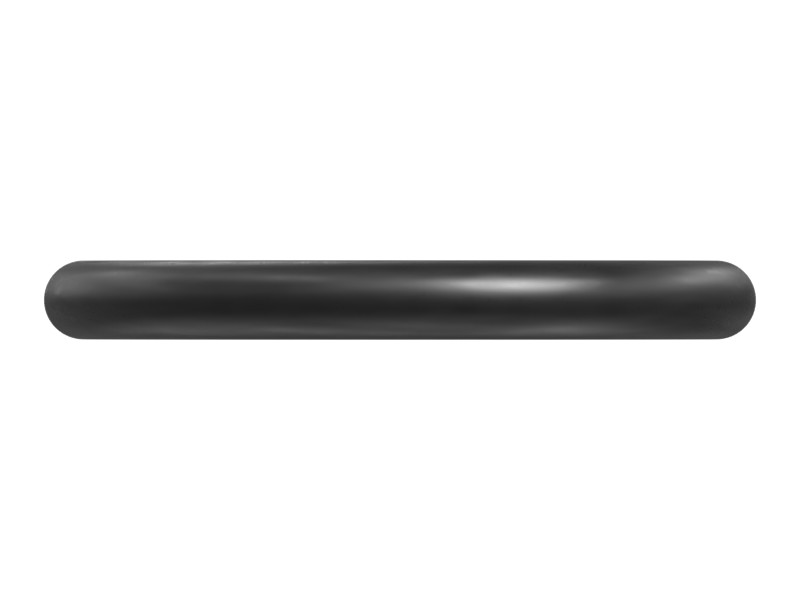

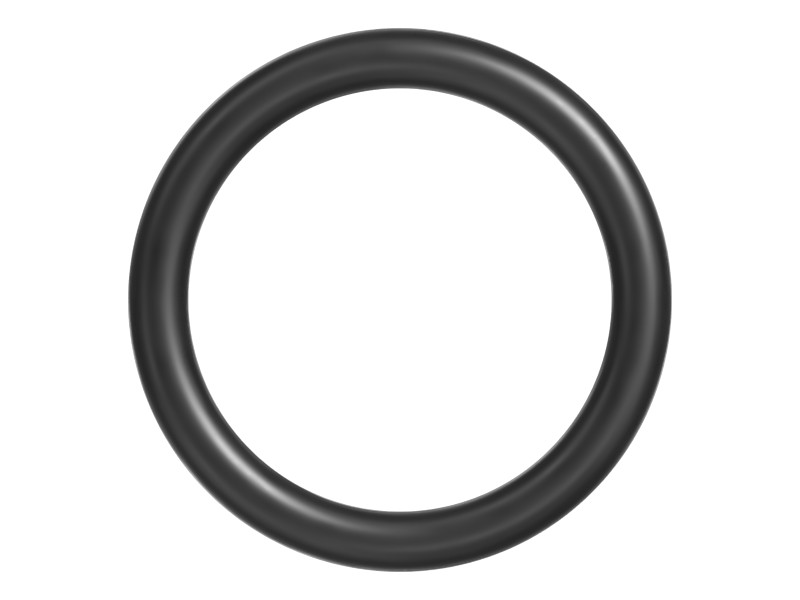

Description
O-rings are used for static sealing and some dynamic applications.
Features
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Polymer | NBR (Nitrile butadiene) |
|---|---|
| Compatible | Anti-Wear Agents; Alpha-Olefin-Based Synthetic Lubricants; Glycols; Hydrocarbon Fuels; Petroleum-Based Lubricants; Silicone Oils and Greases; Water, Water-Based Engine Coolants; ORFS, STORS Seals |
| Material Hardness | 90A |
| Dash Size | 0 in |
| Cross-Section Diameter | 3.53 mm (0.139 in) |
| Inside Diameter | 24.99 mm (0.984 in) |
| Material | NBR (90) |
Compatible Equipment
- Track Loaders: 963, 953, 816F, 826H, 992, 826G, 972, 824G, 993, 963D, 824C, 995, 834H, 953D
- Cold Planers: PL72, PL61, TH360B, PL83
- Compactors: 815, 816, 814, CC2.7 GC, CS7, CP11 GC, CP12 GC, CB2.7 GC, CB2.5 GC, 834K
- Excavators: 308E, 320D2, 320D, 336D, 329D, 390F L, 349D, 374D L, 336D2, 390D L, 308D, 330D L, 315C, 324D, 320C, 313D, 320E, 312C, 311B, 336D L, 336D2 L, 330C L, 325D, 312D2, 320D FM, 324D L, 330B, 329D L, 330C, 325C, 311D LRR, 314D LCR, 330 L, 315D L, 318D L, 325D L, 657G, 621H, 349D L, 345C, 345D L, 621K, 385C L, 365C L, 365C, M325D L MH, 350 L, 345C L, 385B, 340D2 L, 621G, 312C L, 345D, 385C FS, 385C, 328D LCR, 320B, 325B L, 637G, 320D L, 330D, 312D2 L, 325C L, 323D L, 637E, 312E, 312D, 320D2 L, 320D GC, 323D2 L, 318D2 L, 314C, 320D RR, 314D CR, 311C, 345B, 313D2, 312D2 GC, 340D L, 326D L, 365B, 320D2 GC, 329E, 312D L, 329E L, 320C L, 323D, 325B
- Asphalt Pavers: AD30, AD45
- Skid Steer Loaders: 242D3, 313D2 LGP, 216B3, 262C, 226B, 246C, 279C, 236D, 236B3, 226B3, 236
- Motor Graders: 14M, 16, 140H, 120, 14, 120H, 12H, 16M, 140G, 16H
- Wheel Excavators: M315, M315D, M313D, M322D, M315GC, IT14G
- Dozers: D8R, D8, D8T, D6M, D7H, D6T, D7G, D7R, D4E, D8L, D7G2, D8N, D6N, D9N, D3G, D5N, D6R II, D6G2 LGP, D5K LGP, D5M, D9R, D6R, D10T2, D10T, D11T, D5H, D6R III, D7R II, D10N, D7E, D9L, D9T, D3K2 LGP, D11N, D10R, D4G, D6G2 XL, D6T LGP, D10, D5G, D7, D5K XL, D6G, D5K2 XL
- Mini Excavators: 306, 307B, 307, 305.5, 307D
- Wheel Loaders: 950, 950H, 988H, 966H, 910, 950G, 972H, 924GZ, 834, 992C, R1300G, 988G, 992D, 988K, R1700G, R1700 II, 966, 836, 980H, 928HZ, 924HZ, 962G, 980G, 980, 928G, 966F, 988F, 986H, R2900G
- Off-Highway Trucks: 770G, 785, 772G, 793, 789, 785D, 777, 740, 773, 735, 730, 773F, 777D, 797F, 725, 775G, 771D
