Description

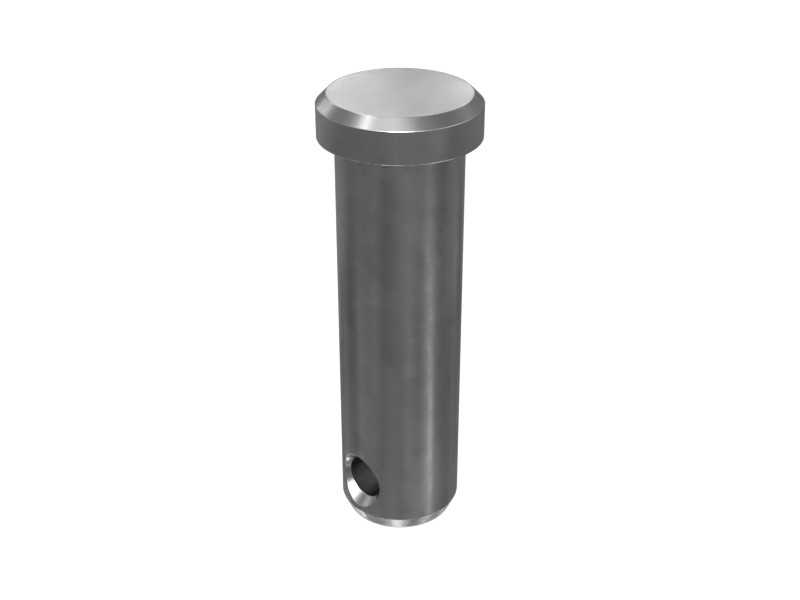

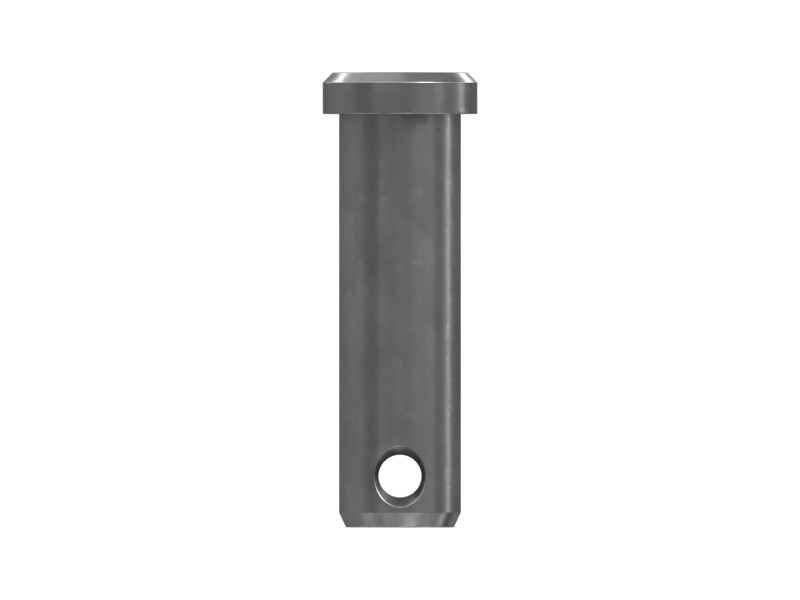

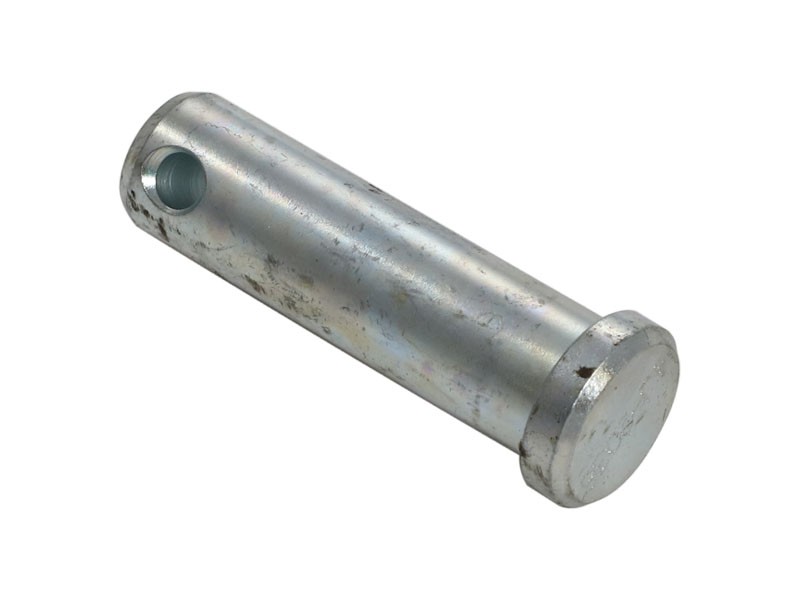

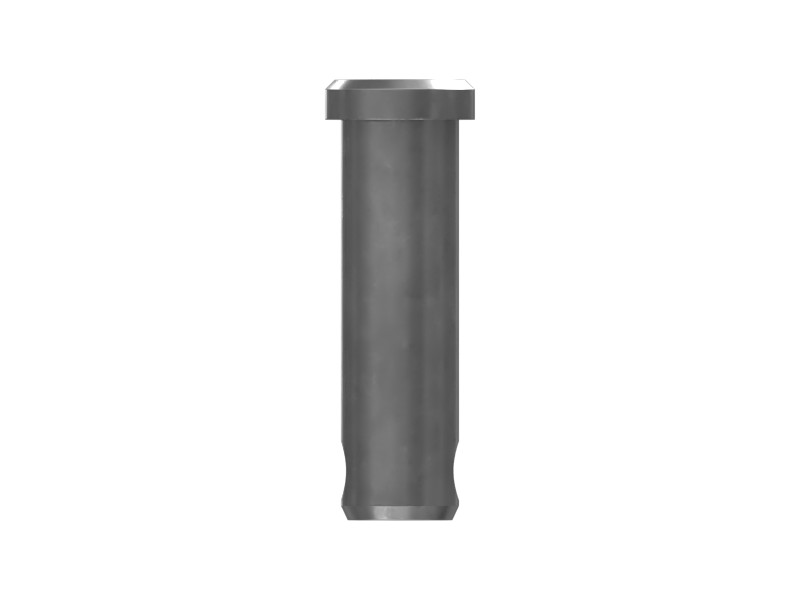

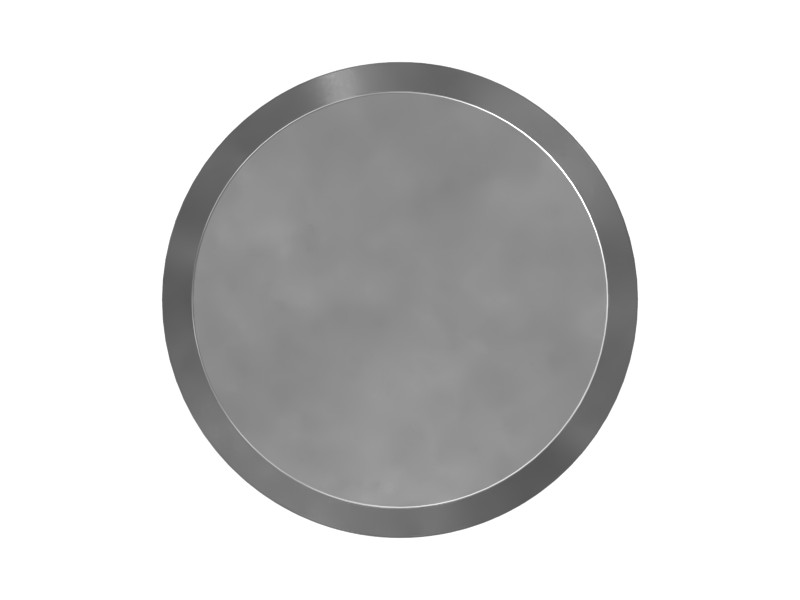

A clevis pin is a solid cylindrical pin with a flat cylindrical head on one end and a chamfer on the opposite end. Cross-hole clevis pins are secured with cotter pins, and grooved pins are secured with retaining rings.
Features
- Pin Type: Cross Hole
- Material: Steel
- Pin Diameter: 18.897 mm (0.744 in)
- Head Diameter: 24 mm (0.944 in)
- Pin Length: 64.287 mm (2.531 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Length | 64.29 mm (2.531 in) |
|---|---|
| Material | Carbon Steel |
| Pin Type | Cross Hole |
| Material Description | Steel |
| Pin Diameter | 18.897 mm (0.744 in) |
| Head Diameter | 24 mm (0.944 in) |
| Length | 64.287 mm (2.531 in) |
Compatible Equipment
- Cold Planers: PL83, PL87, PL72
- Dozers: D6T LGP, D6T, D7H, D7R, D6R, D6R III, D6R II, D8R, D6R LGP, D8N, D6R XL
- Excavators: 3508B
- Wheel Loaders: R2900 XE
- Asphalt Pavers: AD63, AD30, AD45
