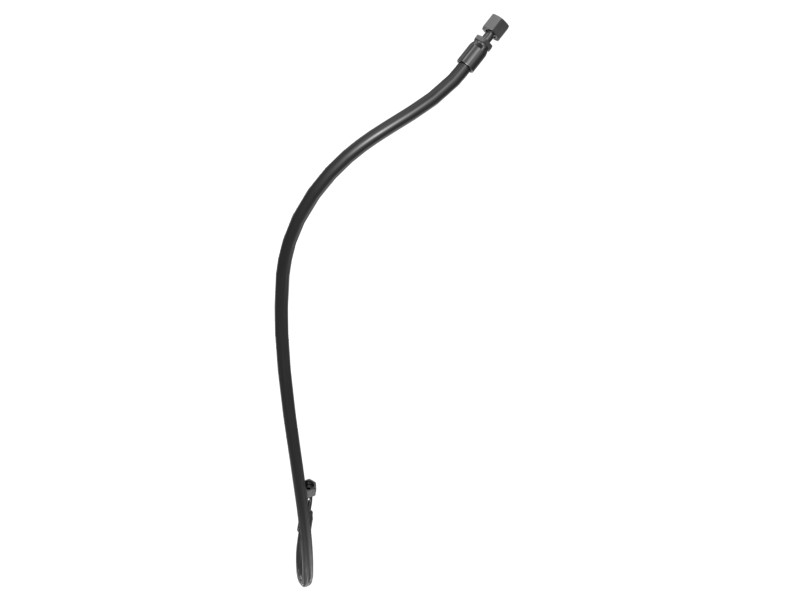

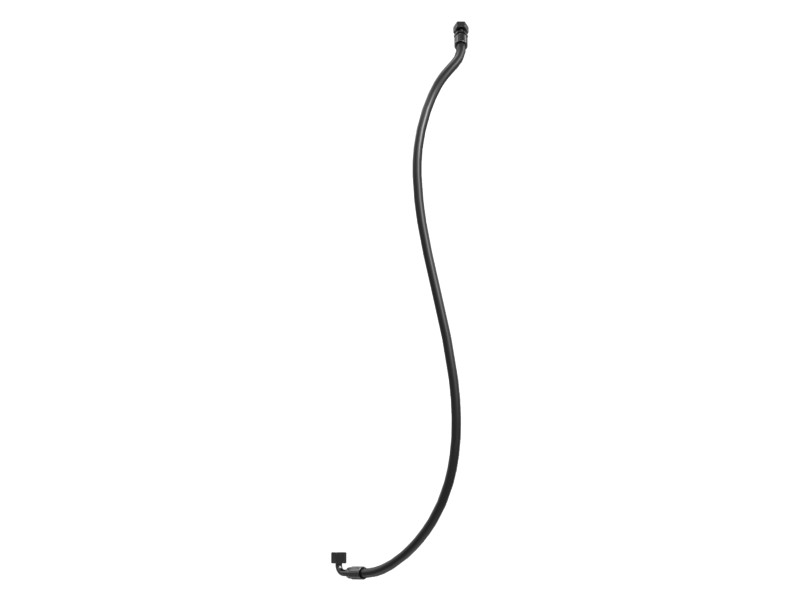

Description
Conveys petroleum-based and synthetic hydraulic fluids in hydraulic systems.
Features
Made with a thermoplastic inner tube that resists petroleum-based and synthetic hydraulic fluids, lubricating oils, air and water. Features a synthetic fiber reinforcement layer and a hydraulic-fluid-resistant, abrasion-resistant, weather-resistant thermoplastic outer layer. These features deliver long life and outstanding reliability.
Recommended Applications:
For medium-pressure hydraulic fluid use. This hose can also be used with air, water, and water/ethylene glycol at temperatures up to +66°C.
Specifications
| Material | Carbon Steel |
|---|---|
| Hose Warning | Improper selections of hose and coupling combinations will void warranties and may result in serious personal injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve a reliable connection, thus maximizing hydraulic system safety and dependability. It is also recommended that appropriate and properly maintained Caterpillar tooling is used to ensure hoses are crimped to specifications. Use of Caterpillar hose with other manufacturer's couplings or the use of Caterpillar couplings with other manufacturer's hose may result in the production of unreliable, unsafe or under-performing hose assemblies. It is not recommended or authorized by Caterpillar. For additional information see SAE J1273 section 6.3 and ISO 17165-2 section 6.3. |
| Hose Type | Thermoplastic Reduced Outside Diameter Hose |
| Hose Inside Diameter | 9.52 mm (0.375 in) |
| Overall Length | 1250 mm (49.213 in) |
| Weight | 0.264 kg |
Compatible Equipment
- Motor Graders: 316F
- Generator Sets: 3512B
- Mini Excavators: 307C
- Excavators: 330D L, 374, 325D L, 320D2 L, 324D, 312D L, 329D L, 320D2 GC, 329E L, 325C L, 336E L, 328D LCR, 336D2 L, 336, 336D L, 312D2 L, 323D L, 330D, 385C L, 385B, 365B, 345D L, 345C, 390D, 385C, 345C L, 313D, 330D2, 315D L, 312D, 336E, 336 GC, 312E, 326D L, 314C, 312E L, 313F L, 324D L, 336F, 314D LCR, 320D FM, 323D2 L, 330 L, 330D2 L, 340, 320D L, 365B L, 318D2 L, 315F LCR, 320D RR, 336F L, 311D LRR, 349D L, 340D2 L, 345D, 329E, 336D2 GC, 320E, 325B L, 312C, 312C L, 320D GC, 325C, 350 L, 318D L, 313D2, 323D2, 320B, 330C L, 325D, 385C FS, 318D2, 312D2, 312F, 345B, 313F LGC, 312D2 GC, 314D CR, 323D, 336E LN, 320D2, 326D2, 329D, 326D2 L, 320D, 329D2 L, 390D L, 349D2 L, 329D2, 336D2, 336D, 349D, 349D2
Additional information
| Machine Model | 307C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D, 313D2, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320B, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330 L, 330C L, 330D, 330D L, 330D2, 330D2 L, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 340, 340D2 L, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 350 L, 3512B, 365B, 365B L, 374, 385B, 385C, 385C FS, 385C L, 390D, 390D L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
