Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

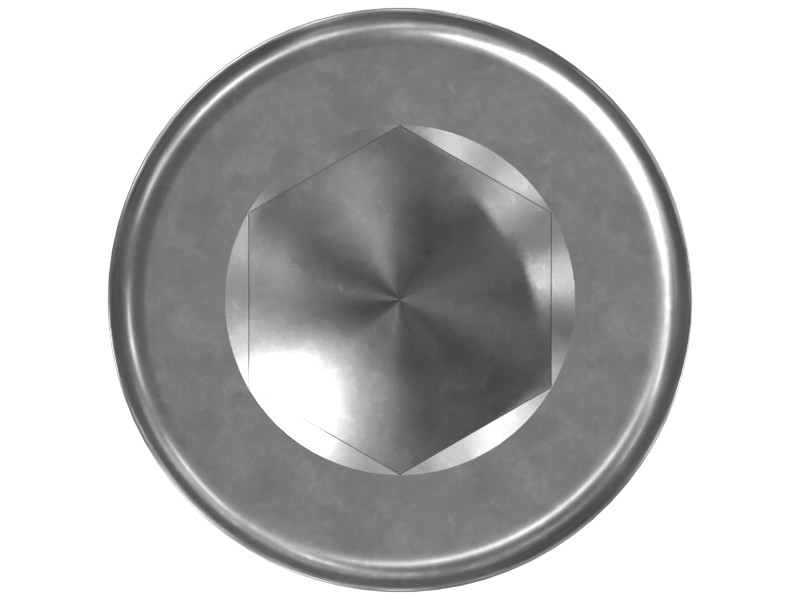

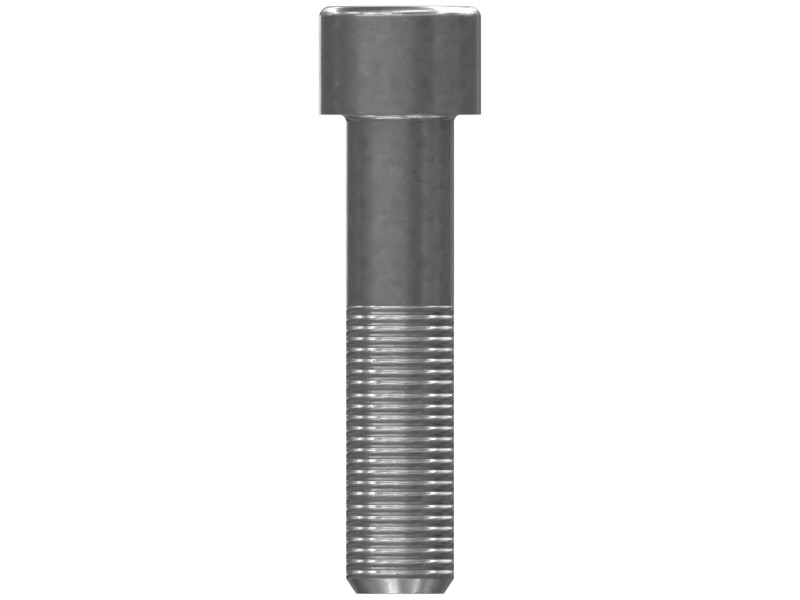

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | Zinc Phosphate + Oil |
| Bolt Type | Socket Head |
| Thread Size | M18 mm (0 in) |
| Thread Size (Diameter × Pitch) | M18X2.5 mm |
| Bolt Length | 80 mm (3.15 in) |
| Handle Length | 32 mm (1.26 in) |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 323D2, 320, 325, 320C, 324D L, 323D L, 328D LCR, 320D FM, 326D L, 320D RR, 326GC, 330D2 L, 320B, 329E L, 320D2 GC, 325B L, 320 GC, 329D L, 323, 326, 320D L, 320D GC, 320D2 L, 325C L, 330 GC, 345C, 335, 340, 333 GC, 326 GC, 333, 323 GC, 352, 330GC, 329E, 325D L, 323D2 L, 335F LCR, 323D, 330D2, 324D, 320C L, 325C, 320E, 325B, 323GC, 325D, 330C L, 395, 330, 326D2 L, 329D2, 326D2, 329D, 329D2 L, 320D2, 320D
Additional information
| Machine Model | 320, 320 GC, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GC, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330C L, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 340, 345C, 3512B, 352, 395 |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
