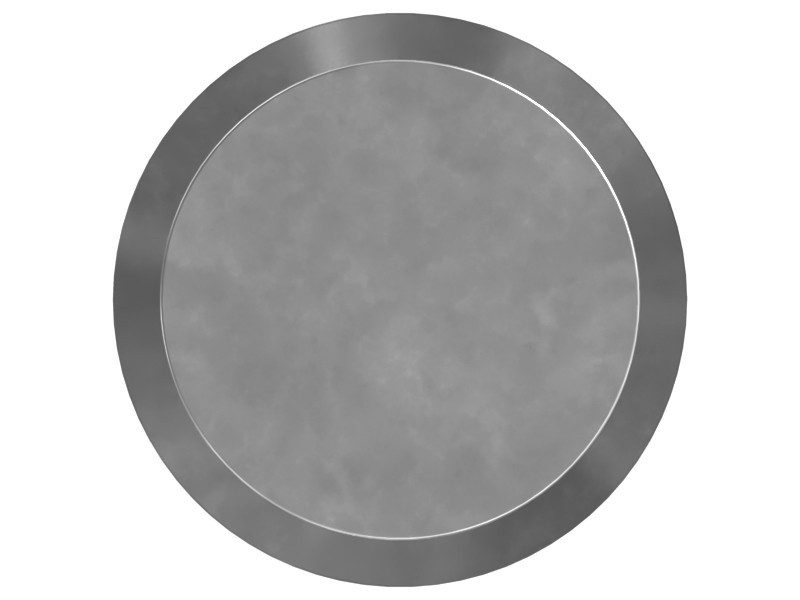

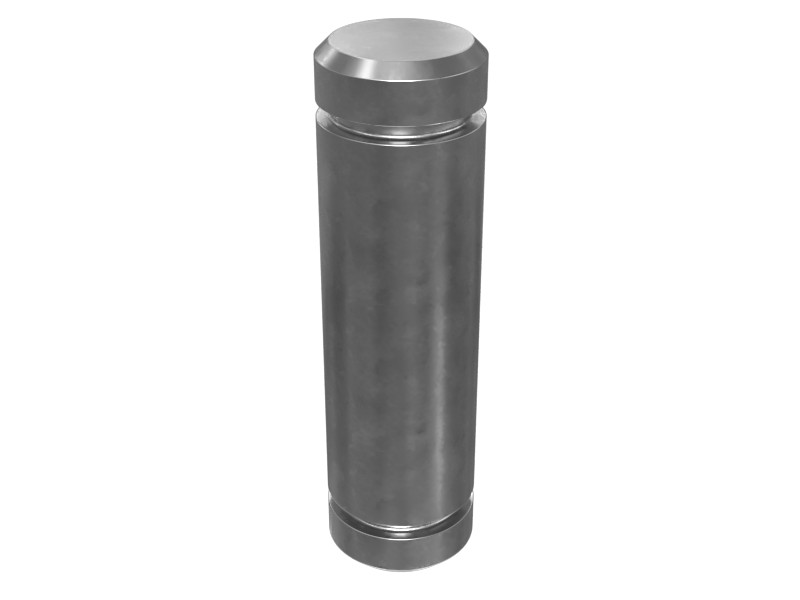

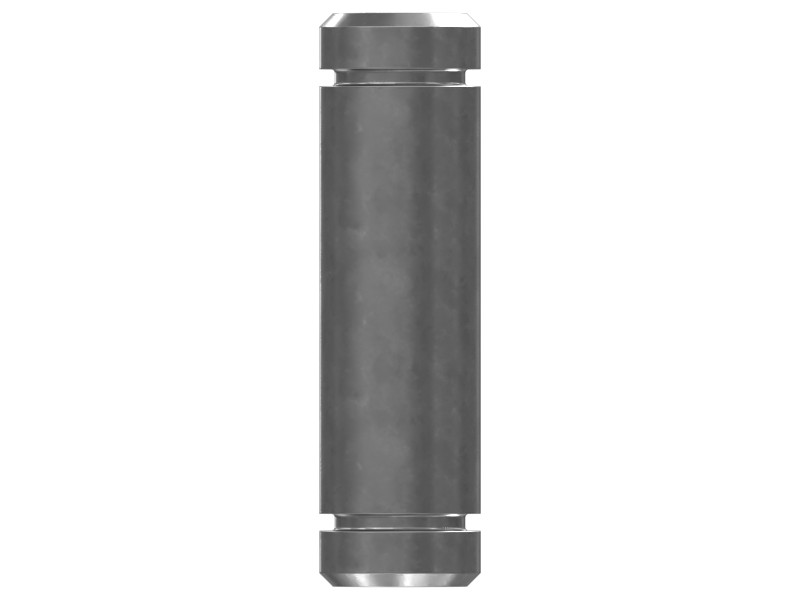

4E-9668 9.51 mm OD Countershaft Dowel
Solid Pin
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.
Specifications
| Pin Length | 33.8 mm (1.331 in) |
|---|---|
| Diameter | 9.52 mm (0.375 in) |
| Cross Hole | No |
| Pin Type | Solid |
| Pin Diameter | 10 mm (0.37 in) |
| Overall Length | 34 mm (1.33 in) |
| Remarks | End Type: Chamfer, Chamfer |
Compatible Equipment
- Track Loaders: 826G, 816F, 824G, 834H, 826H
- Wheel Loaders: 986K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
