Description

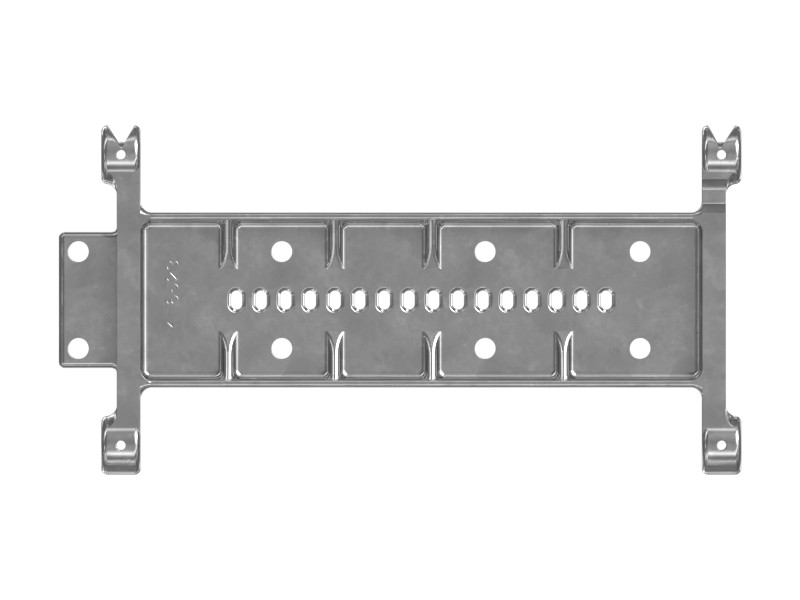

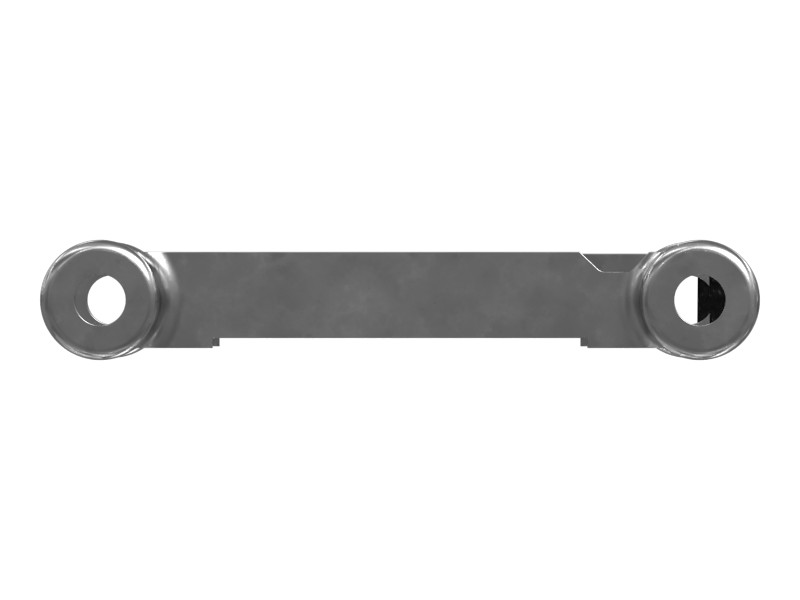

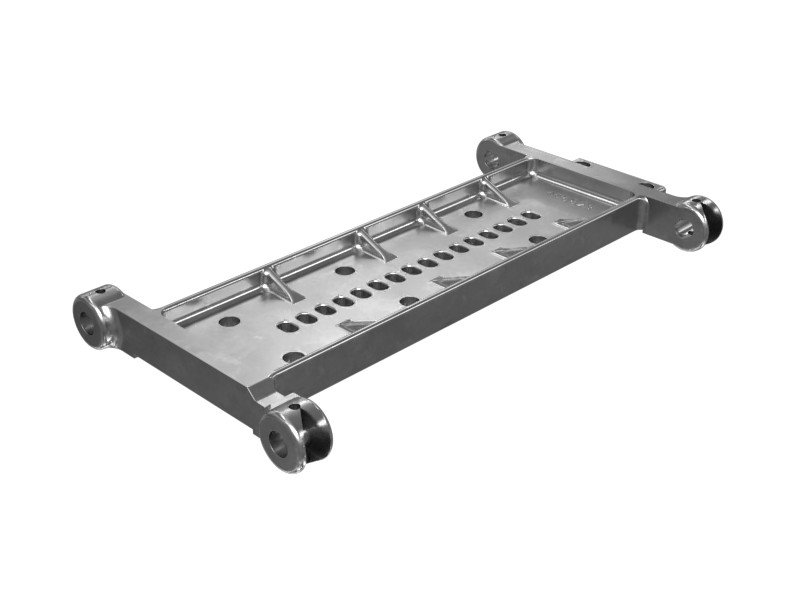

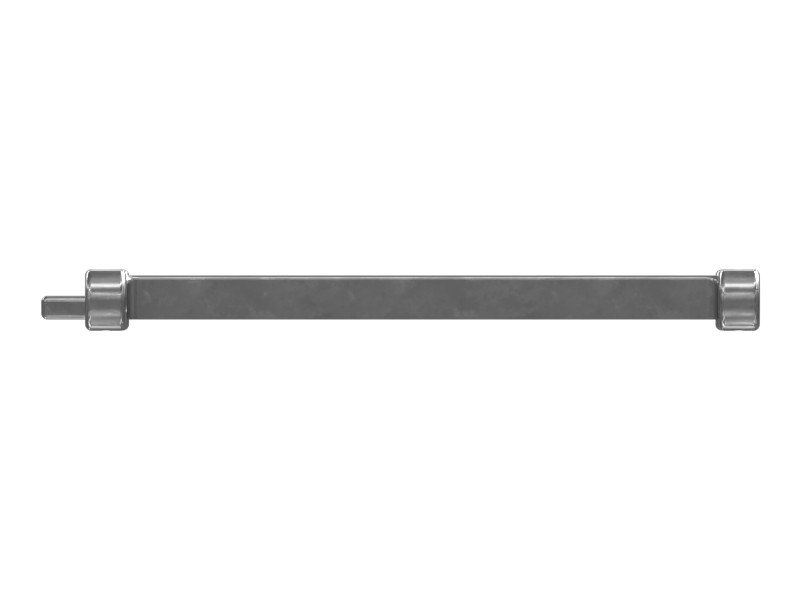

The slider base is used to support the hydraulic control slider in the operator cab and steering control assembly. It is specially designed to support the slider and guide it along a set path, providing additional support and added stability for the control assembly. It is usually made of long-lasting metal that can withstand the high forces and vibration in the assembly.
Features
- Provides a reliable base for the control shaft and slider assembly.
- Comes with 8 mounting holes for use with M10 fasteners.
- High strength, excellent wear resistance and corrosion resistance.
Applications
The slider base is used to provide mounting support for the slider in the hydraulic control and steering control devices.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Material Description | Cast Aluminum |
| Overall Height | 30 mm (1.18 in) |
| Overall Length | 352 mm (13.86 in) |
| Overall Width | 180 mm (7.09 in) |
Compatible Equipment
- Track Loaders: 826H, 826G, 824G, 834H
- Wheel Loaders: 992K
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
