Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.

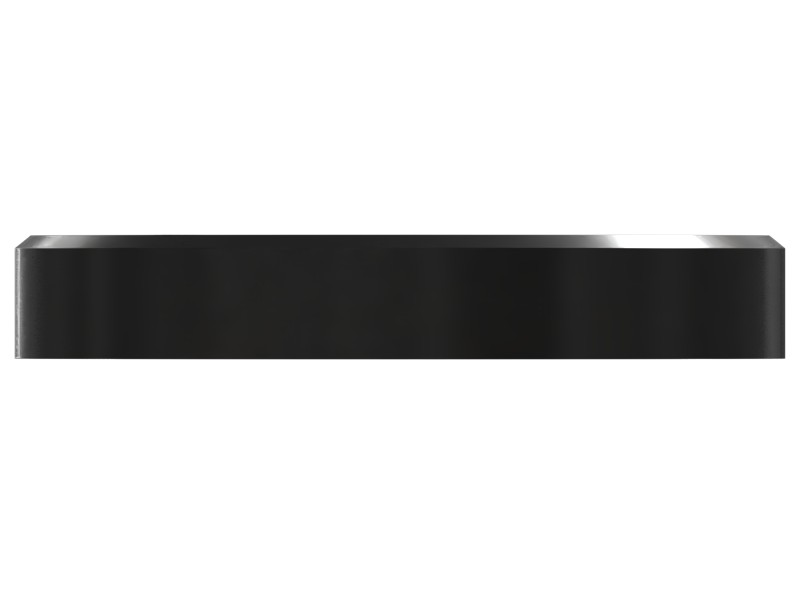

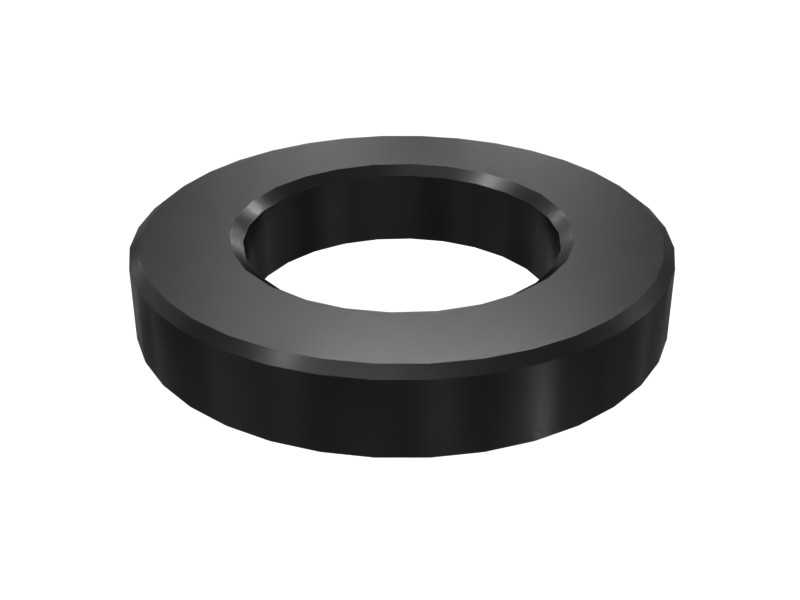

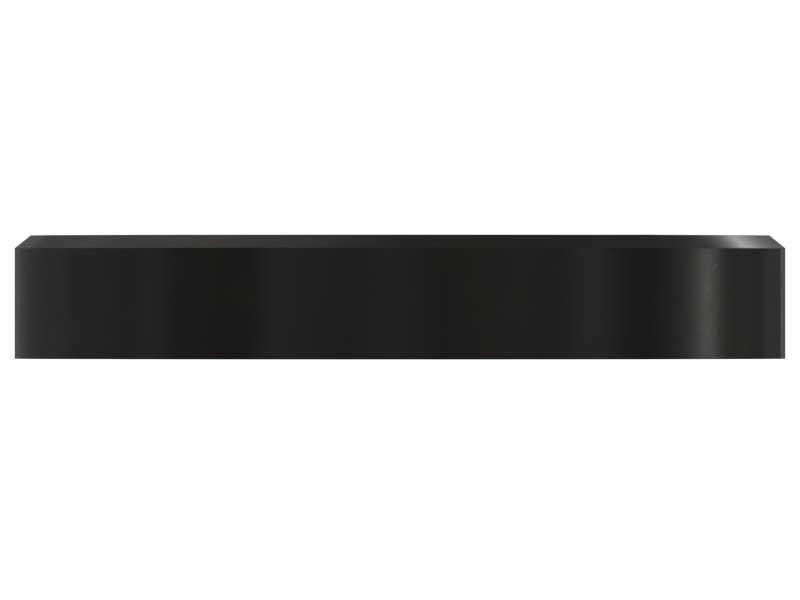

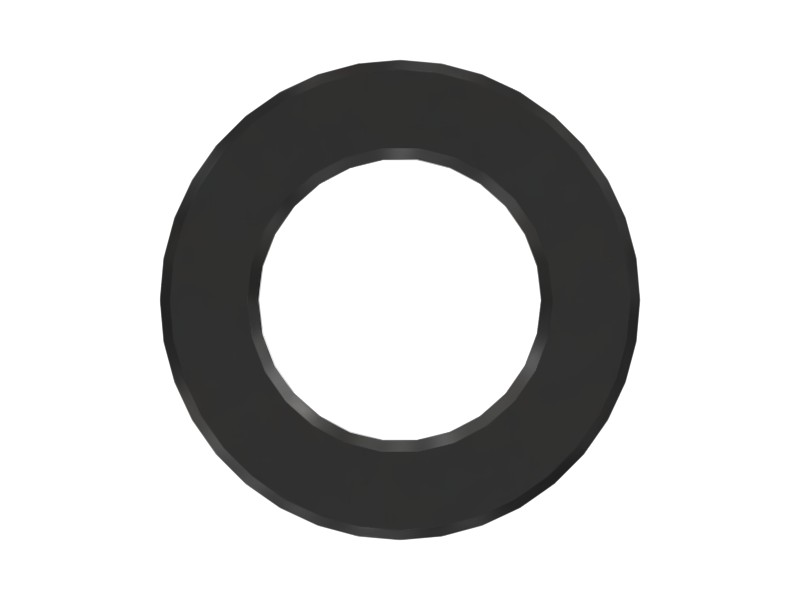

Specifications
| Outside Diameter | 30 mm (1.181 in) |
|---|---|
| Inside Diameter | 17 mm (0.669 in) |
| Material | HARDENED STEEL |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M16 mm (5/8 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
| Thickness | 5 mm (0.197 in) |
Compatible Equipment
- Generator Sets: 3406C, 3406B, 3516C, G3516C, G3516, 3512B, 3512E, C9, C7.1
- Track Loaders: 992, 953, 824C, 826K, 990K, 826G, 826H, 963, 824G, 816F, 834H, 993
- Cold Planers: PL87, PL83, PM622, PM620, PM-200
- Compactors: 816, 825K, 824K, 815, C9.3B, 834K, 814, C13B, C-15, C-9
- Engines: C32, C15, C27, C13, C7, C11, C18
- Excavators: 336D2, 349D, 3456, 3126, 349D2, 390F L, 390D L, 349D2 L, 336D, 374F, 374D L, 330D L, 374, 349F L, 336D L, 120 GC, 336E L, 336D2 XE, 336D2 L, 336F LN, 336F, 330C L, 330C, 330 L, 3512C, 336F L, 336E LH, 350, 3516E, 349D L, 3508B, 637K, 637E, 637G, 657G, 3516B, 345C L, 352, 390F, 385C, 355, 330D, 336D2 GC, 336E, 385B, 621G, 365C, 352F, 340D2 L, 385C L, 374F L, 349E, 3101, 385C FS, 345C, 365B, 349E L VG, 349, 365C L, 336F L XE, 395, 365B L, 336E H, 345B, 349E L, 345D L, 6015 FS, 345D, 621K, 6018, 390D, 621H, 340D L, 6015, 6030, 330B, 350MHPU
- Asphalt Pavers: AD45, AD30, AD63
- Skid Steer Loaders: 24, 3126B
- Motor Graders: 120, 140 GC, 12K, 140G, 12H, 140H, 120H, 140K, 160K, 14, 16H, 349 GC
- Wheel Excavators: MD6200, MD6310, MD6250
- Dozers: D3K2 LGP, D4E, D7G, D9R, D9L, D8T, D8, D6T, D8L, D8N, D8R, D11T, D11, D10R, D10T, D11R, D10, D10T2, D10N, D9T, D9N, D6G2 XL, D7G2, D6G, D5H, D6G2 LGP, D1, D9
- Wheel Loaders: RM400, 834, 950, 980G, 836, 966F, 980H, 980, R2900G, 986H, 992C, 988G, 988F, R1700 II, RM500B, R3000H, R1700G, R1300G, 990H, 988H, 992D, R1600H, 988K, R1700K, R1700 XE, R2900 XE
- Off-Highway Trucks: 773E, 773, 777, 770G, 740 GC, 730, 725C2, 773D, 771D, 773F, 777D, 725, 735, 740B, 745, 740, 775G, 777E, 772G, 785, 7495, 745C
